High-speed Rotary Tablet Presses
The GZP series rotary tablet press and intelligent tablet press 【 forced feeding device 】 are suitable for large-scale and intensive tablet production, and can press various specifications of circular and irregular tablets. Its production configuration and functions have been improved by one level compared to traditional tablet presses. This series of high-speed rotary tablet press has high production capacity, high pressure, and continuous and adjustable pre pressing. It has a compact structure, simple operation and maintenance, reliable operation, a wide range of material applications, low operating costs, and good cost-effectiveness advantages. This new product was exported to countries such as Russia shortly after its launch and was well received by customers.
1. The product design meets GMP requirements.
2. High production efficiency, able to meet the needs of large-scale production.
3. Equipped with a forced feeding device, various forms of impellers can meet different material requirements, ensuring feeding accuracy.
4. High pressure, continuously adjustable pre pressure, prolongs pressing time, runs smoothly, and can press materials that are difficult to form.
5. The tablet chamber is 360 ° *, and the tablet release mechanism, lower rail guide, and lower pressing wheel are all installed in a special way, making them easy to operate, disassemble, and clean.
6. Special oil and dust prevention system avoids clogging and adds damping structure.
7. Adopting a high-definition and isolated window design.
8. PLC interface control, intuitive and easy to operate.
9. Good dust prevention effect.
Shanghai Various Powder High-speed Rotary Tablet Presses Machine Are Suitable for Global Pharmaceutical Machinery

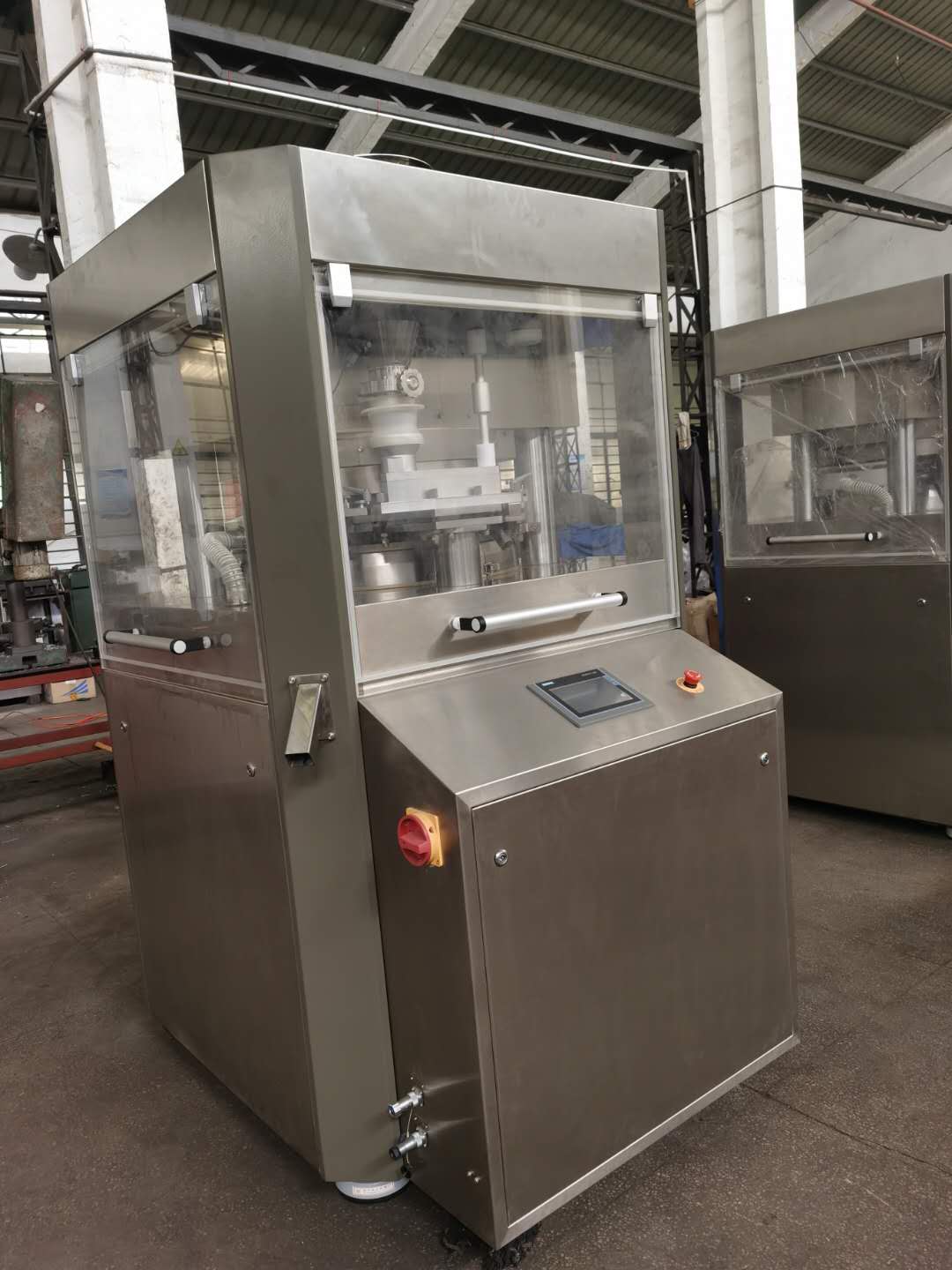

GZP -5 70 series High Speed Rotary Tablet Press
Main Technical Specifications
Model | GZP- 41 | GZP- 51 | GZP- 61 | GZP- 65 | |
Number of Stations | 41 | 51 | 61 | 65 | |
Tooling Standard | D | B | BB | BBS | |
Max Main Pressure (KN) | 10 0 | ||||
Max Pre-pressure (KN) | 4 0 | ||||
round tablet | 25 | 18 | 13 | 11 | |
Max Tablet Diameter (mm) | irregular tablet | 25 | 19 | 16 | 13 |
Max Filling Depth (mm) | 21 | 1 8 | |||
Max Tablet Thickness (mm) | 8 | 6 | |||
Max Turret Speed (r/min) | 58 | 58 | 58 | 58 | |
Max Production Capacity ( tablet s/h) | 285360 | 354960 | 424560 | 452400 | |
Motor Power (kw) | 7.5 | ||||
Overall Size (mm) | 1 425 ×1 15 0 × 2245 | ||||
Machine Weight (kg) | 3800 | ||||
Application
This machine is one kind of double-side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.
This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
Main introduction and structure
1. The content of fine powder (more than 100 mesh) in the dried granular raw materials used in this machine is not more than 10%. This machine is not suitable for Semi solid, wet particles, low melting point, easy to wet raw materials and non particle powder pressing.
2. This machine can not only press round shape tablet , but also press Irregular shaped tablet and double-sided lettering piece of geometric shape.
3. The parts and components of this machine are designed and manufactured according to the world's popular standardization, serialization and generalization standards .
4. This machine is mainly composed of mechanical and electrical control systems of major components of the main engine (mechanical and electrical control systems of major components are described in detail below) .
5. The machine is equipped with excellent mechanical and electrical components. The mechanical components adopt high-strength and high rigidity frame mechanism. The main casting adopts Japanese casting process, Turret with special processing process, upper and lower pre pressing wheels and main pressing wheel structure. The lubrication system adopts American Bijur Delimon technology . The main motors, inverters, PLC, touch screens and so on are all international famous brands.
