Small Liquid Chocolate blister Packing Machine
blister packing machine
The machine that seals the product between the blister and the bottom plate
blister packing machine is a machine that uses transparent plastic film or thin sheet to form a blister wrap, and uses heat sealing, bonding and other methods to seal the product between the blister wrap and the bottom plate
From the perspective of overall structure and working principle, domestic blister wrap packaging machines can generally be divided into three series: (I) roller blister wrap packaging machine, On, J, type machine 130 series, and large machine 250 series; (2) Roll plate blister packaging machine, medium low speed model (punching frequency below 60 times/min); High speed models (with a punching frequency of 80 times/min or more); (3) Flat type blister packaging machine
DPB-80 Mini automatic blister packing machine
Product Description
Applications:
It is suitable for capsule,tablet,big honey pill,candy,liquid,paste,one injector as well as irregular shape
AL-PVC,paper-plastic composite and ALU-ALU sealing packaging in pharmaecutical,healthcare,food, cosmetics industry etc.
Technical specifications:
| Cutting Frequency (Times/min) | 20-40 |
| Capacity(Blister/h) | 2400 (According To Standard Plate 80×57 Can Calculate The Max Capacity) |
| Max forming area and depth(mm) | 80×100×26 (Standard 70×90×14) |
| Stroke (mm) | 20-100 (Can Be Manufactured As User's Requirements) |
| Air Pressure(MPa) | 0.4-0.6 |
| Standard Plate (mm) | 80×57 (Can Be Manufactured As User's Requirements) |
| Total Power | 380V/220V 50Hz 1.8kw |
| Main motor power (kw) | 0.75 |
| PVC hard pieces(mm) | 0.15-0.5×80 |
| PTP Aluminum Foil (mm) | 0.02-0.035×80 |
| Dialysis Paper (mm) | 50-100g×80 |
| Mould Cooling | Tap water or recycle water |
| Overall Dimensions (mm) | 1400×460×950 (L×W×H) |
| Weight (kg) | 450 |

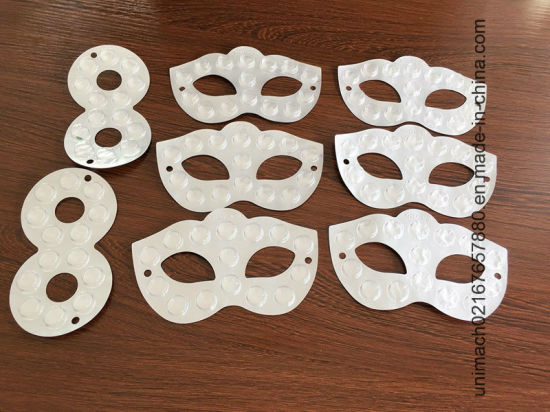

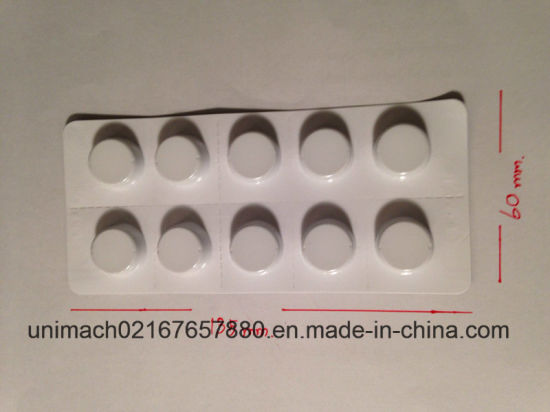

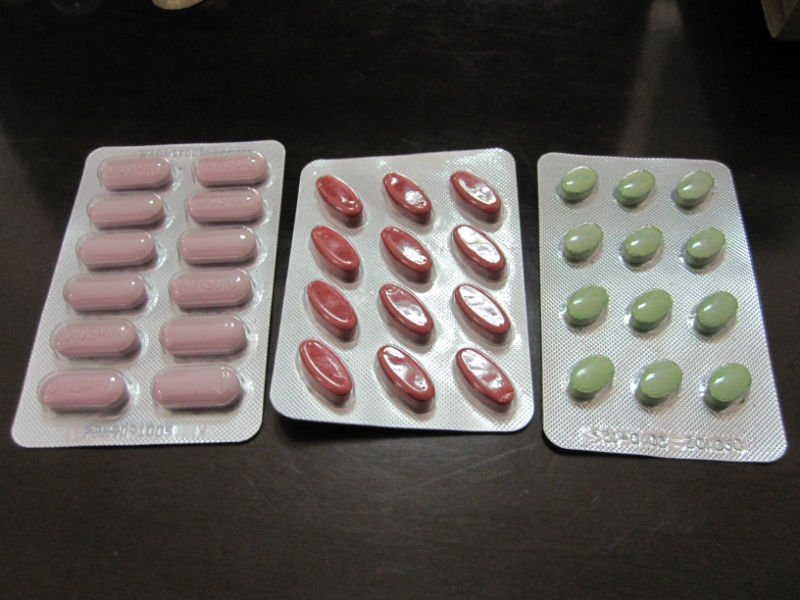

Samples:
![Small Liquid Chocolateblister Packing Machine]()
5 sets DPB-80 exported to Thailand
1.Nomally shipping steps:
2.Our packing and shipping:
![(4[KDGL_NF%E6%2]D`4JYP](http://img.yfisher.com/m5591/171695525954e613.png)
![0OC}YRDYXP])TO]QMXZ48IJ](http://img.yfisher.com/m5591/171695526340fe25.png)
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
![KE1PX$_SO]LLORZU3`DH8UW](http://img.yfisher.com/m5591/1716955263299568.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://img.yfisher.com/m5591/171695526519cd71.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
