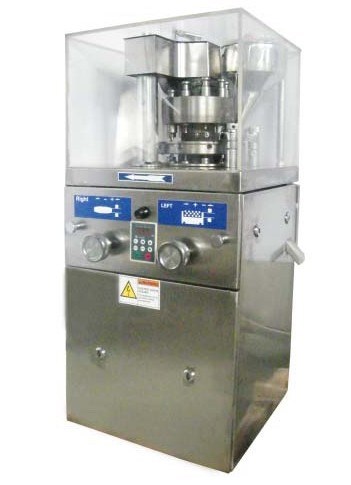

Zp-5/7/9A Rotary Tablet Press
1. Main applicationThe machine is a single-press type, continuoue automatic tablet press for pressing granular raw materials into tablets. It is sued for small-scale production.
2. Features
A. The machine is compliance with the GMP requirement on the production of pharmaceuticals.
B. The compression parts is entirely separated from the driving mechanisms
C. All spare parts to be in contact with the pharmaceuticals are made of stainless steel or the surface being treated specially for non-toxicity & corrosion proof
D. The compression area is enclosed with transparent organic glass. To prevent contaminates, The compression area can be specially treated. All surfaces being smooth & easy to clean.
E. Machine speed, the depth of filling, the thickness of the tablet could be adjusted.
F. The mechanical buffer unit will prevent punches and apparatus from overload damage.
| Type | ZP-5A | ZP-7A | ZP-9A |
| Dies | 5 | 7 | 9 |
| Max.pressure(Kn) | 40 | 40 | 40 |
| Max.Dia.of Table(mm) | 12(irregular 14mm) | 12(irregular 14mm) | 12(irregular 14mm) |
| Max.Depth of fill(mm) | 15 | 15 | 15 |
| Max.Thickness of Table(mm) | 6 | 6 | 6 |
| Turret speed(r/min) | 30 | 30 | 30 |
| Production Capacity(pc/h) | 9000 | 12600 | 16200 |
| Moto(Kw) | 1.5 | 1.5 | 1.5 |
| Overall size(mm) | 480*630*1100 | 480*630*1100 | 480*630*1100 |
| Net weight(Kg) | 260 | 260 | 260 |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
