automatic rotary Tablet Press
characteristic
1. Double press double-sided tablet production with a large number of dies, suitable for large-scale tablet production.
2. The outer casing is fully enclosed and made of stainless steel. The components in contact with drugs are made of stainless steel material or specially treated on the surface, non-toxic and corrosion-resistant, and comply with GMP standards.
3. The tablet chamber is sealed with transparent organic glass and can be fully opened, making it easy to clean and maintain internally.
4. Equipped with overload protection device, it can automatically stop when the pressure is overloaded.
5. Mechatronics integration, using variable frequency stepless speed regulation, easy to operate, safe and reliable.
. Main technical parameters：
|
Turntable punching number |
29 pay |
|
working pressure |
100kN |
|
Maximum Tablet Diameter |
25 mm |
|
Maximum tablet thickness |
15 mm |
|
filling depth |
30mm |
|
Maximum Tablet Production |
80,000 pieces/hour |
|
Turntable working diameter |
420mm |
|
Turntable speed |
5~24 rpm |
|
Die diameter |
36mm |
|
Die height |
35 mm |
|
Upper and lower punch diameter |
26mm |
|
Upper Punch Length |
127mm |
|
Lower punch length |
156mm |
|
Machine footprint |
1230 x 950mm² |
|
machine height |
1670 mm |
|
Machine net weight |
1880 kg |
|
power |
7.5 kW |
|
Rotating speed |
960 rpm |
|
Voltage |
380 volts |

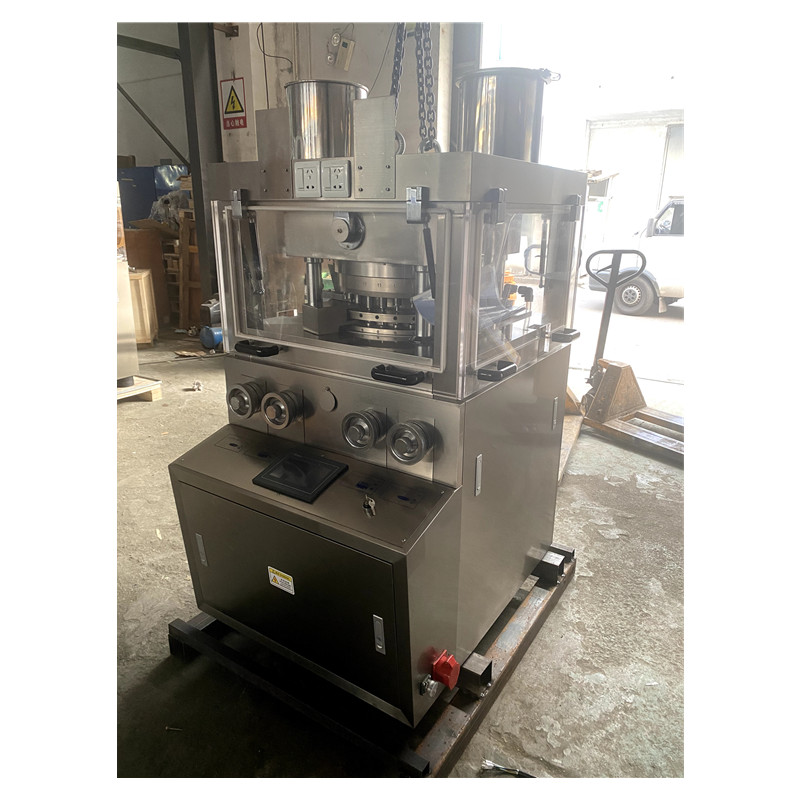

ZPW-29 Rotary Tablet Press Non-standard Salt Press
1. Main purpose:
This machine is a double-press multifunctional automatic rotary continuous tablet press machine, which presses granular raw materials into tablets. It is mainly used in the production of the pharmaceutical industry, and is also used in chemical, food, electronics and other industrial sectors. It can press special-shaped tablets according to customer requirements.
2. Working principle:
1 The outer casing is fully enclosed, and the material is made of stainless steel, and the inner table is made of stainless steel, which can maintain the surface gloss and prevent cross-contamination, in line with GMP.
2 The mechanical operation can be clearly seen with the transparent protective cover. And can be fully opened for easy cleaning and maintenance.
3 The speed is stepless speed regulation, which can be adjusted arbitrarily.
4 Easy to operate, stable rotation, safe and accurate. Implement electromechanical integration, adopt touch screen PLC control and operation.
5. The transmission system is sealed in the oil tank under the main body of the machine. It is an independent component that is safely separated and will not pollute each other. The transmission shaft is infiltrated into the oil pool to be fully lubricated, reducing noise and wear.
6 Mechanical dust collection device can absorb the flying dust in the pressing room.
7 When pressing double-layer tablets, the output is halved.
3. Main technical parameters：
