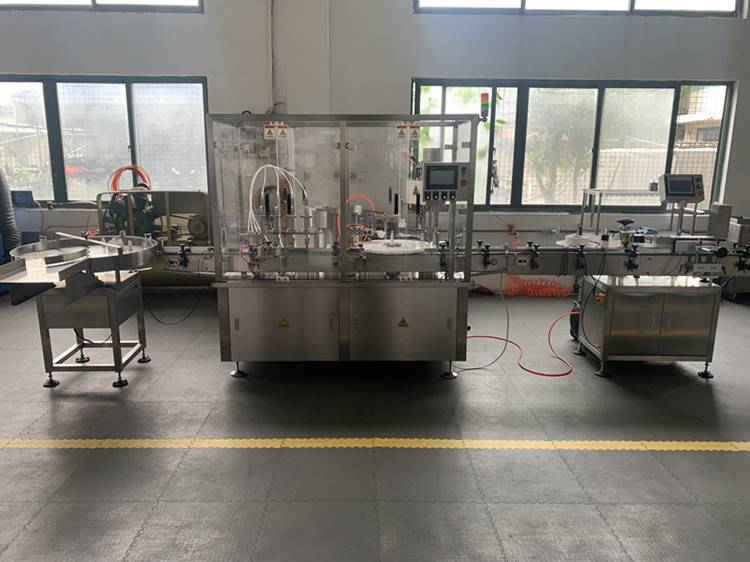

Automatic Spray filling and capping machine
1. Electrical components are sourced from reputable brands. The operation of this machine is intuitive and convenient, no filling without bottles, accurate measurement, and no capping without bottles.
2. The upper cover positioning device ensures that the nozzle plastic tube can accurately enter the bottle mouth even when it is too long or bent.
3. Made according to GMP standards
Capping station: ONE
Qualified cap putting: more or equal then 99%
Qualified capping: more or equal then 99%
Speed regulation: by inverter
power supply： 380V 50Hz
power： 1.80kw
outside dimension： 2500×1450×1800mm
Automatic Spray filling and capping machine

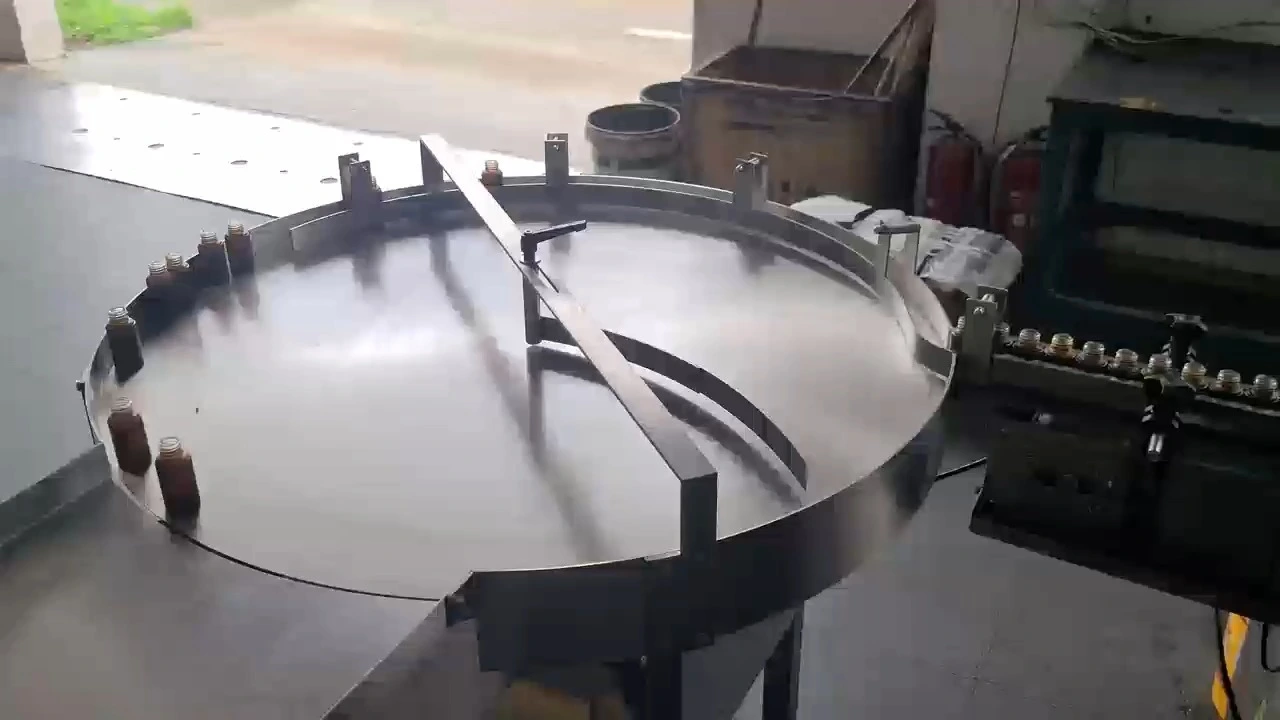

Working principle: The device accurately fills the medicine into the bottle through the steps of bottle sorting, filling, sealing, and output. It is equipped with an advanced control system that can accurately control the filling volume and speed, ensuring the quality of each bottle of medicine
TThe liquid filling and capping machine is an automated filling and sealing equipment developed by our company to fill the market gap for viscous materials. It can be used for various viscosity and thickness products (such as ointments, cosmetics, honey, sauces, adhesives, etc.), and is suitable for filling and capping various round and irregular bottles. Widely used in industries such as pharmaceuticals, daily chemical, chemical, and food.
Performance characteristics:
Easy to operate, all processes including bottle feeding, filling, capping, capping and discharging are automatically completed by the machine.
PLC control, with functions such as no bottle filling, no capping, fault alarm and prompt.
High filling accuracy, wide measuring range, fast loading design, quick and convenient cleaning and maintenance.
Magnetic torque rotary (rolling) cap, no wear, adjustable rotary (rolling) cap torque, does not damage the bottle and cap.
The whole machine is designed according to GMP requirements.
Main configuration：
the talbe and surrounding plate, and the part contacted with the bottle is imported good quality SUS 304/2B
| Inverter | Siemens |
| Button | Schneider |
| Air switch | Schneider |
| AC contactor | Schneider |
| Speed reducer | goldgun, shanghai |
| Cam index | shangdong |
| The main motor | ABB |
| PLC | Siemens |
| Touch Screen | Siemens |
