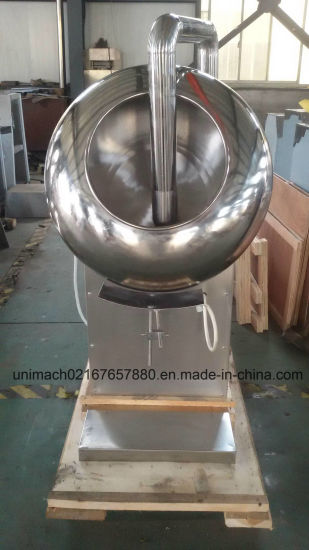

BY Series Sugar Coating Machine (BY)

Water chestnut sugar coating machine without spray gun

The water chestnut sugar coating machine is mainly used in the pharmaceutical industry for traditional Chinese medicine pills, chocolate polishing, peanut wrapping, sugar loading, seasoning, manufacturing of rice dumpling, pearl powder balls, roll drying agent, production of chemical fillers, aluminum hydroxide balls, aluminum oxide balls, ceramic ball molecular sieves, and catalysts. This machine is suitable for outpatient, college laboratory, research institute, pharmacy and other chemical industries.

Warranty:

1 year

After-sales Service:

12hour response

Shipping:

by sea,air and train

Place of Origin:

China shanghai

Model NO.:

BY series

Inquiry

Write a Review

Trademark

SUPM

Name

Water chestnut type sugar coating machine

Type	Capacity (Kg)	Angle of inclination	Motor power (Kw)	Fan power (Kw)	Overall dimension (mm)	Heating power (Kw)	Weight (Kg)	Rotary speed (rad/min)
BY300	1~3	30°	0.37	40	800×800×1200	1KW	200KG	0-46
BY400	2~5	30°	0.55	40	800×800×1200	1KW	200KG	0-46
BY800	30~50	30°	1.1	200	1000×1000×1550	3KW	400KG	0-32
BY1000	50~70	30°	1.5	200	1200×1200×1600	4KW	450KG	0-32
BY1250	80~150	30°	2.2	370	1350×1350×1600	6kw	800KG	0-28

TApplication:

It is used to coat tablets and pills with sugar in pharmaceutical and food Industry.

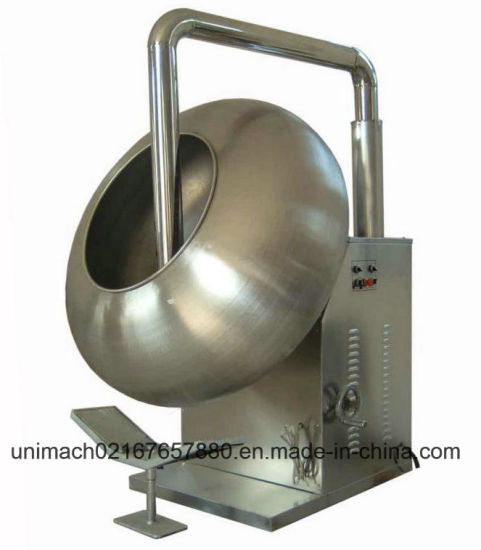

These machines sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds. As its feature, the sugarcoating round pot is elevated with a elevation 30° To the horizontal, the heater such as gas or electrical heater can placed directly under the pot. A separated blower with electric heater is provided with the machine. The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity can be selected in two levels.

Operation process

1. Place the host steadily, open the oil filling cover, and add lubricating oil to the gearbox until it reaches the oil mark.

2. Move the spray bracket to the right side of the main unit, place the spray gun in the main unit's clothes pot, and adjust it to a reasonable position. Add coating solution to the liquid cup.

3. Connect the power, turn on the main engine speed control switch, and adjust the main engine speed and rotation direction.

4. Connect the gas and liquid pipes to add liquid to the liquid cup, turn on the gas and liquid switches, and adjust the spray gun and spray direction.

5. Align the hair dryer mouth with the pot mouth to adjust the heating temperature and direction.

6. After the above processes are prepared, start the main motor and let the machine idle for 2 minutes to determine if there are any faults. After confirming that everything is normal, the air compressor can be started with an air pressure of approximately 4-6 kg/cm3.

7. Loading: Pour the pill core to be coated into the coating roller, and fix the gun bracket and spray gun into the pot.

8. Turn on the power switch, and if necessary, turn on the air supply and internal heating switches to coat the materials.

9. Discharge: Turn the spray gun and blower device out of the drum, remove the coating pot, and pour out the material.
