Fully automatic capsule filling machine or capsule making machine

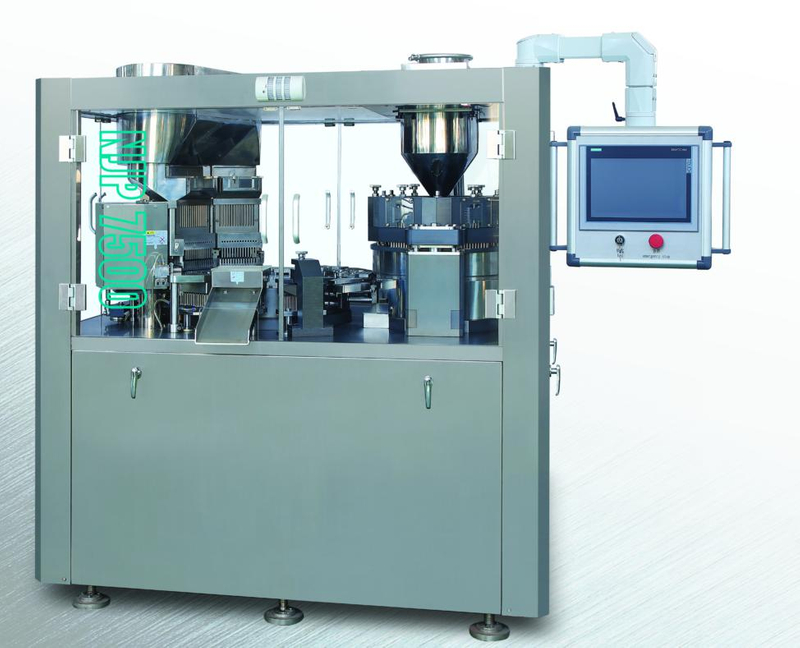

NJP-7500 Automatic capsule filling machine is an intermittent motion and hole plate type filling fully automatic capsule filling machine.It adopts optimization design combined the characteristics of Chinese medicine and requirement of GMP, it is with characteristics of compact mechanism,small volume,lower noise,accurate filling dosage,multi-fuction,stably running etc.It can finish following motion at the same time:capsule feeding,capsule capsule separating,powder filling,capsule rejecting,capsule locking,finished capsule discharge and module cleaning etc.It increase the lifting mechanism that easy to clean and saves the cost.
|
Output capacity |
450000 capsules/hour |
|
Machine weight |
4500Kg |
|
Machine Dimensions |
1885mm*1405mm*2023mm+(50-125)mm (Does not include external electrical control cabinet） |
|
Power Supply |
380/220V 50Hz |
|
Motor power |
17KW（Standard） |
|
No. of segment bores |
54 holes(Four rows） |
|
Vacuum |
Pumping rate 144m3/h，-0.03~-0.05Mpa |
|
Dust |
29Kpa 318m3/h |
|
Noise |
<75DB（A） |
|
Making rate |
Empty capsules 99.8% Full capsules 99.8% |
|
Suitable for Capsule |
000、00.0，1，2，3，4．5# |
|
Filling error |
±2.5%-±3.5% |
Fully automatic capsule filling machine or capsule making machine
The design is precise and beautiful, and the operation is stable and reliable. It can automatically complete a variety of procedures such as seeding, splitting, filling, rejection of waste capsules, locking of capsules and export of finished products. Fully enclosed 12-station turntable, the module is designed in three rows of 54 holes, this model is a special equipment for the production of large-capacity hard capsule filling.
■ Performance characteristics:
Originally adopts RU250 and RU140 high-precision gap indexing box for reasonable selection.
The fully enclosed twelve-station turntable is easy to clean, pollution-free, and runs smoothly with high accuracy.
It has a high-precision, high-configuration transmission mechanism, which significantly reduces the vibration of the equipment during operation and greatly improves the stability and service life of the machine.
Capsule cleaning device can remove the fine dust raised when the capsule is locked while the capsule is locked.
5, mold cleaning and blowing structure, to solve the mold surface and mold cavity due to the production of strong adhesive powder deposition during production, making the capsule difficult to pull out the problem, increasing the probability of capsules.
6, using four rows of silicone pads, no air supply, no dust flying device.
7. A new waste rejection device, inhaling and blowing simultaneously, greatly increasing the success rate of rejecting waste capsules.
8. The main electronic control components are imported brands. Advanced control principles ensure the precise realization of various program control and safety protection functions.
9. The man-machine interface is beautiful and dust-proof, easy to operate, and fully functional.
Product Introduction
I1. This machine is a new type of capsule filling machine developed by our company by absorbing the advantages of similar products from around the world.
2. Adopting a forged groove cam transmission mechanism, the transmission part has no spring, making the return of each motion mechanism more precise.
3. A closed lubrication system that automatically lubricates various transmission parts at regular and quantitative intervals, extending the lifespan of the entire machine.
4. Adopting an upper and lower locking structure to avoid differences in loading caused by flying caps and scraping off drugs.
5. Using a 10.4-inch color LCD display screen, it can automatically alarm and stop in case of capsule shortage, powder shortage, vacuum failure, vacuum failure, machine door release, etc.
6. The use of imported motors, electrical components, bearings, and high-precision intermittent indexing boxes makes the performance of control and transmission systems more stable and technically reliable.
7. Cleaning equipment and replacing molds do not require disassembly.
8. Various cleaning liquids can be added to clean and disinfect the inner holes of the mold, improving the capsule loading rate and the difference in drug loading.
9. "Machine" and "electricity" are separated, making cleaning convenient and safe.
10. By utilizing a dual gas source design, the capsule insertion rate can be improved, avoiding the phenomenon of capsule flying caps and bottom suction penetration.
11. The ultra-low workstation turntable design reduces the inertia of the turntable movement and the wear of components, prolongs the service life of the cam indexing box, and makes the whole machine more stable.
12. The filling mechanism uses an "internal cam" instead of the traditional "work rod" to increase the filling force, reduce vibration and noise.
Auxiliary optional configuration
