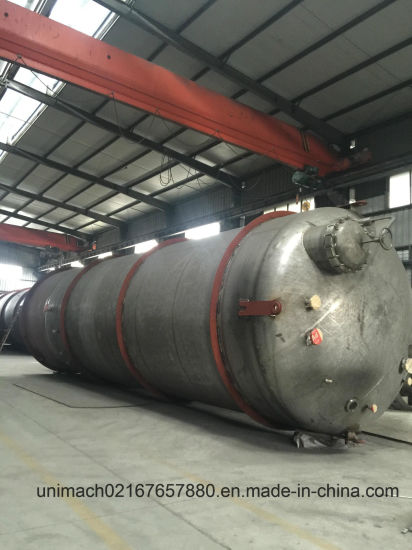

High Efficiency Extraction Tank Machine
1. Usage:
This machine is widely using the solution to extract the medicine ingredient from the raw material like herbs root,stem,leave ,flower,fruit,seed and animal bone,viscera etc .and this machine can meet the different extractor process, like the water based extractor process, solvent based extractor process ,steam distill process etc.it can be used the pressurized extractor,Atmospheric pressure extractor, vacuum extractor for the different temperature and different working process condition.
2. Characteristic:
Pneumatic lock discharge gate can keep the machine safety and non leakage for the electric power /compressor air turn off in sudden.
Special backsurge unit design can resolve inside extractor sediment problem and can keep inside tank temperature uniform.
Special side discharge unit design can resolve the discharge nozzle block problem and can be easy clean and unload.
Special foam destroyer unit design can resolve the foam block the condenser problem and easy to be clean.
Special oil/water separater unit design can be collect oil easily
Multi-segment jacket can be easily control the inside temperature when the jacket heat
3. Structure:
This machine including the following unit: extractor tank, condenser, sub-cooler, water/oi eparater, filter, pump and pipeline.
4.Spec and main technical standards:
| Specifications\Model | DQ-Z-1.0 | DQ-Z-2.0 | DQ-Z-3.0 | DQ-Z-6.0 | DQ-Z-8.0 | DQ-Z-10 |
| Total volume L | 1200 | 2300 | 3300 | 6300 | 8600 | 11000 |
| Jacket design pressure Mpa | 0.33 | |||||
| Jacket design temperature °C | 146 | |||||
| Compressed air Mpa | 0.6-0.7 | |||||
| Manhole diameter mm | 400 | 400 | 400 | 500 | 500 | 500 |
| Condenser area m2 | 3.0 | 5.0 | 6.5 | 9.5 | 12.5 | 15.0 |
| Cooling area m2 | 0.5 | 1.0 | 1.2 | 2.0 | 2.5 | 3.0 |
| Filtration area m2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.4 | 0.5 |
| Steam consumption Kg/h | 245 | 305 | 345 | 645 | 720 | 850 |
| Total weight Kg | 1080 | 1620 | 2400 | 3025 | 4030 | 6500 |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
