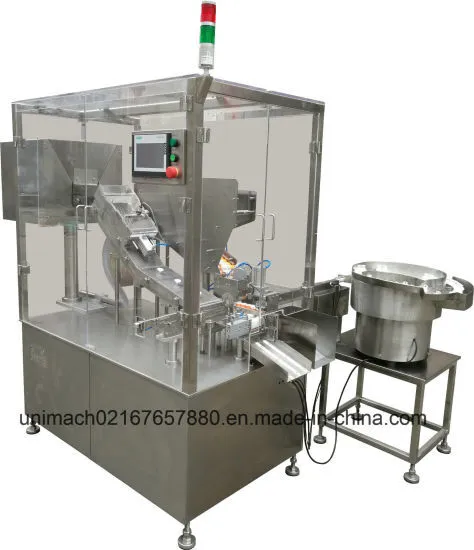

New Automatic Effervescent Tablet Filler
New Automatic Effervescent Tablet Filler
The latest designed effervescent tablet tube filler is more lower and compact design with acrylic cover for protection
Detailed Product Description
A Tube Filling Machine For Tablet is applicable to the packing bigger and thinner tablets which are orderly fed into bobbin bottles in single row in an overlapping way.
This unit is safe, efficient, accurate and clean. It sells well with its high quality and performance.

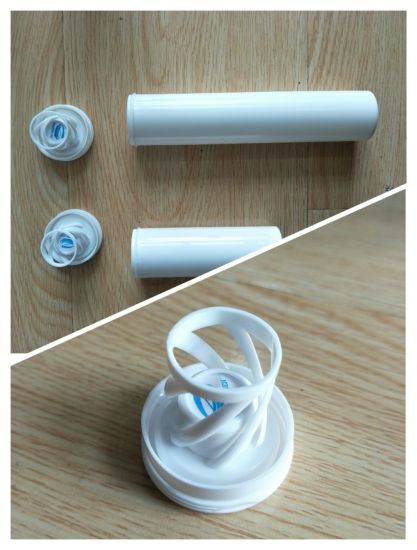

This unit was designed for layered filling of tablets into a tube and then placing a plastic stopper in the top.
Feature of automatic tube feeder.
Automatic tablet channel Counting. 100% accurate.
No tube, no filling; No tablets, no capping.
Automatic vibratory bowl for stopper (cap feeding).
Automatic cap press sealing.
| Model | ZPP-40A |
| Filling range | 10-30tablets/tube as per customer's requirement |
| Diameter of tablet | 12-30mm |
| Thickness of Tablet | 3-8mm |
| Length of Tube | 80-180mm |
| Max.Capacity | 40Tubes/min depending on the product and tube size |
| Power supply | 0.8kw |
| Compressive air | 0.5~0.7MPa,0.28m3/min |
| Overall size | 2000mm*1600mm*1680mm |
| Weight | 600Kgs |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
