New Automatic PLC Ampoule drawing and filling machine
1、 Concept: The single needle drawing and sealing machine is suitable for packaging and sealing ampoule bottles in various pharmaceutical and chemical factories. This machine has a simple structure and is easy to operate. When encountering a shortage of bottles during use, it is equipped with an automatic stop filling device, which can avoid waste of medicine. For the convenience of users to understand and master, the following are the methods for adjusting and maintaining various parts of this machine.
2、 The ALG1/2 type ampoule filling and sealing machine is suitable for the use of ampoules with two specifications of 5/10 milliliters. Therefore, when exchanging specifications, adjustments must be made according to the following steps in order to achieve smooth production.
| No. | Name | Model | Qty | Manufacturer /brand | Notes |
| 1 | Motor | JW7114-0.37kW | 1set | Shanghai Regal-Beloit | China and USA joint-venture |
| 2 | Inverter | BFV00042GK 0.4kW | 1set | Taiwan DELTA | |
| 3 | peristaltic pump | 313D | 2 sets | UK, Watson-Marlow | |
| 4 | Step motor | 2S56Q | 2 sets | KINCO | |
| 5 | Driver | 2M530 | 2sets | KINCO | |
| 6 | PLC | VB1-14MT-D | 1set | Taiwan | |
| 7 | Touch screen | MT6070IH2 | 1set | Taiwan | |
| 8 | linear guide rail | 1group | Japan | ||
| 9 | Main shaft | 40Gr Ø40 | 1piece | UNIMACH CHINA | Quenching and tempering: HRB245-265 |
| 10 | Cam and gear | 45 | One group | UNIMACH CHINA | Quenching and tempering and surface hardening:HRC48-52 |
| 11 | Stainless steel | 304 |
Detailed Product Description
Ampoule drawing, filling and sealing combined equipment

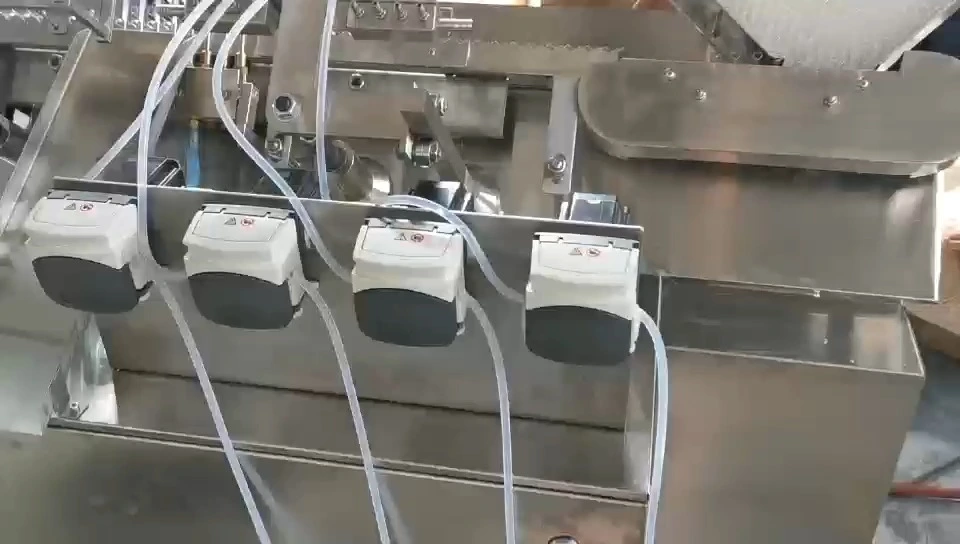

With WATSON UK peristaltic pump
Panasonic touch screen control...
The machine is a new generation of the ampoule drawing, filling and sealing combined equipment for injections. It adopts the rectangular feeding instead of the traditional ampoule feeding methods. In such case, the feeding is steady with no easy broken ampoule. A modern clutch is mouthed under the ampoule feed hopper. Therefore, the ampoule feeding can be stopped at any time while the machines is still running. So the ampoule lost can be reduced. In the part of stopping filling where changes electromagnetic switch into mechanical switch. It is reliable and durable. Bottle reverse and bottle arranging stricture are used in the device of bottle outlet. It reduces the broken rate of the finished products of ampoules tremendously.
Main technical specifications:
Dimension: 1100× 720× 1400mm
Filling heads: 2 heads
Model: 1-2ml, 5-10ml, 20ml
Capacity: 40-65 ampoules/min
Fuel consumption: Gas 1m3/h, LPG 0.6kg/h
Consumption of Oxygen: 4kg/h
Motor power: 0.37kW
Power supply: 220V 50Hz
Weight: 250 kg
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
