Company Advantages
· During the R&D period, SUPM blister machine pharma is put emphasis on technical innovation.
· The product is tested by different standards testing institutions at home and abroad.
· The success of Shanghai Universal Pharmaceutical Machinery Co.,Ltd. hinges on our outstanding team of blister machine pharma designers and manufacturing engineers.
| Maximum capacity | 12,500capsules/h |
| Capsule size | 00#,0#,1#,2#,3#,4# hard capsule |
| Power (kw) | 2.2 |
| Power supply | 380V 50Hz |
| Overall dimensions (mm) | 1350x700x1600(LxWxH) |
| Weight (kg) | 400 |
Configuration Part list forsemi-automatic Capsule filler
| 1 | Name | Model | Brand/manufacturer | Voltage | Qty | |
| 2 | Pneumatic elements | ModelAC-200 | Hualong group | 2 | ||
| 3 | Bearing | Many models | haerbin | Group | ||
| 4 | Reducer | WPWD-40 | Hangzhou yushen reducer factory | 2 | ||
| 5 | Motor | YS6324.7124 | Zhejiang linhai chunhua motor | 3 | ||
| 6 | Vacuum pump | XD-40 | Shanghai pujing | 1 | ||
| 7 | Stainless steel | 304 | China | Pieces | ||
| 8 | Inverter | N2 | T-VERTER from Taiwan | 2-220V | 2 | |
| 9 | Counter | SYJ-48A1 | Zhejiang ruian chaoke | AC-36V | 2 | |
| 10 | Heat relay | NR2-25 | CHNT | 1 | ||
| 11 | Button | LAS1-BY-11M | Zhejing hongbo | 8 | ||
| 12 | AC contactor | LC1-D09/10 | Schneider | AC-36V | 3 | |
| 13 | Transformer | BK-100 | Zhejiang transformer group,inlet 220,outlet 36V | 1 | ||
| 14 | Time relay | AH-3-3 | CKC-songling motor | AC-36V | 1 | |
| 15 | Miniature relay | HH564P | Zhejiang lierde | AC-36V | 2 | |
| 16 | Mini relay | DZ47-10/1P | CHNT | 1 | ||
| 17 | Mini breaker | DZ47-10/1P | CHNT | 1 | ||
| 18 | Proximity switch | GL-8F | OMRON | DCO-36V | 1 | |
| 19 | Emergency button | Y090-11M | Zhejiang niushi | 1 | ||
| 20 | Distance switch | AZ-7311 | Zhejiang niushi | 1 | ||
| 21 | Proximity switch | ANJK-5002C | Zhejiang taihua | 1 | ||
Introduction

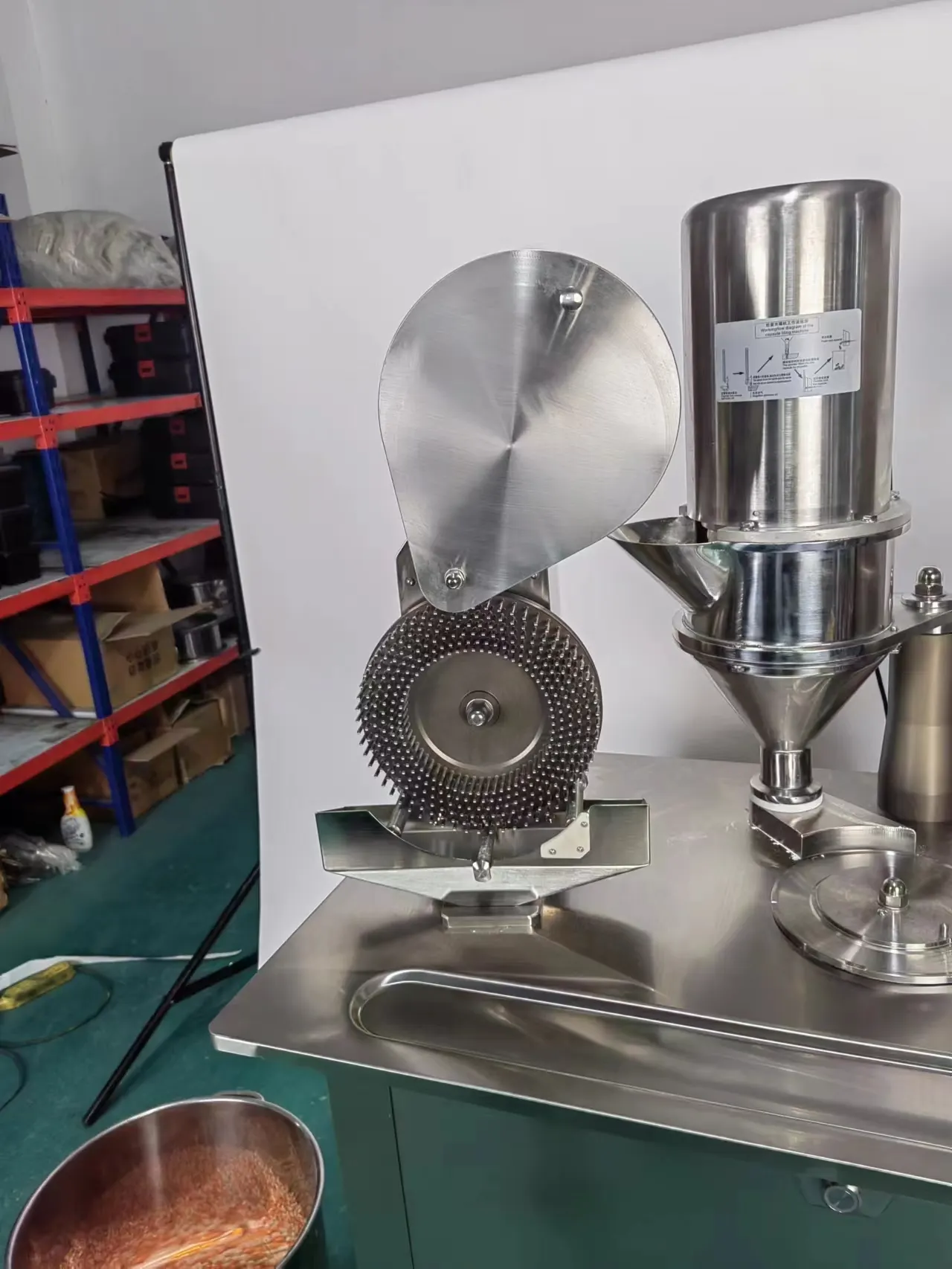

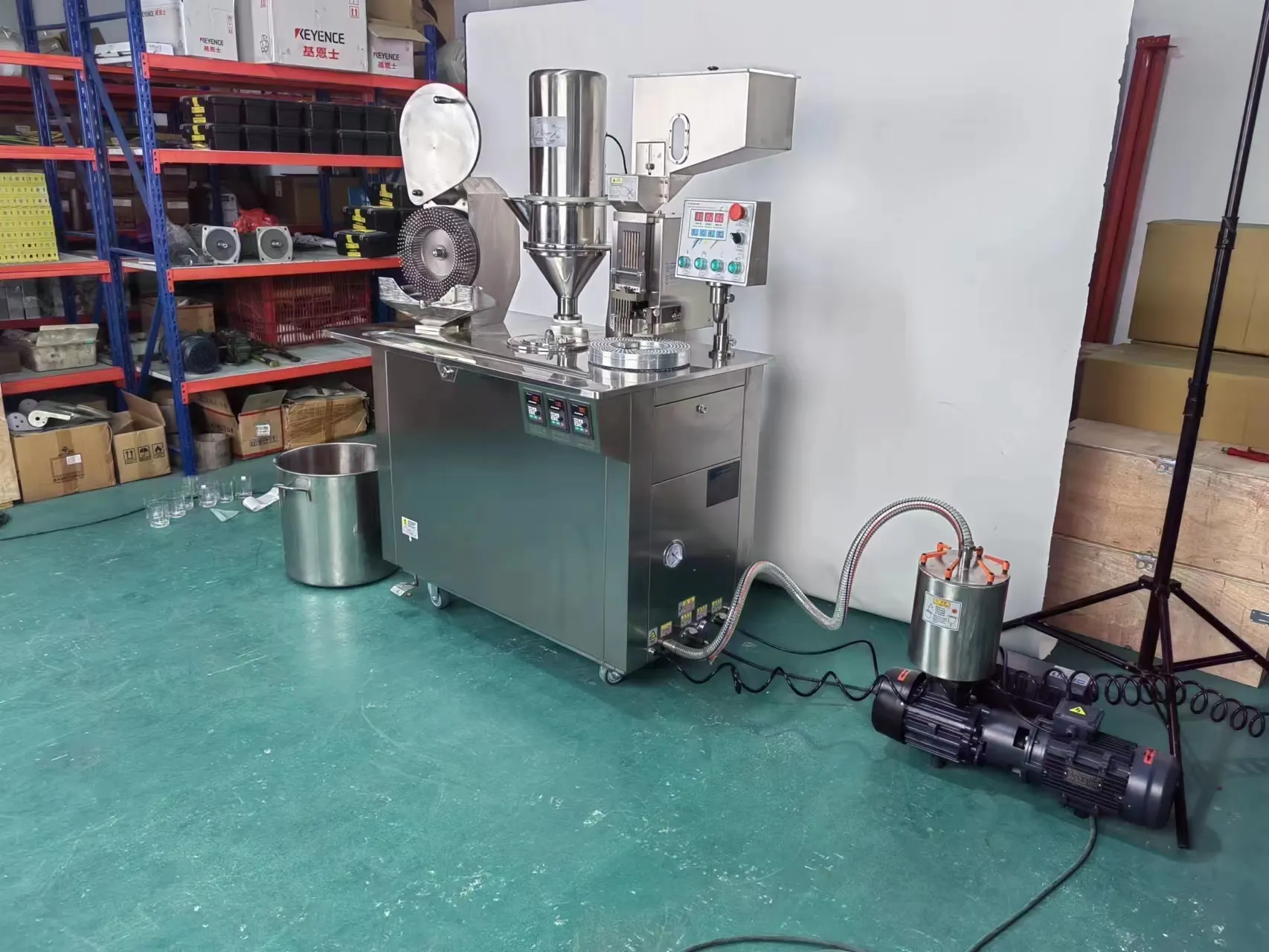

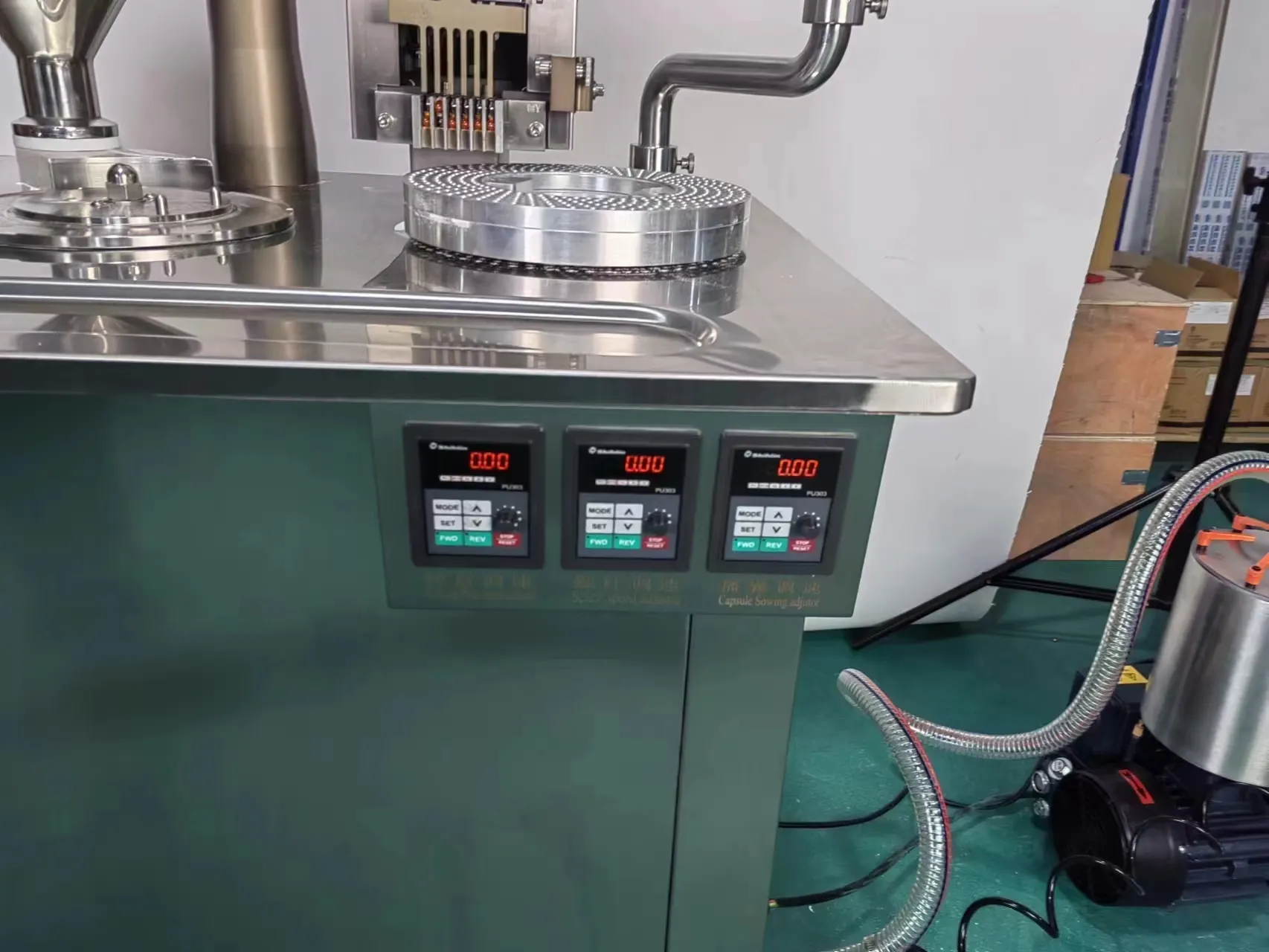

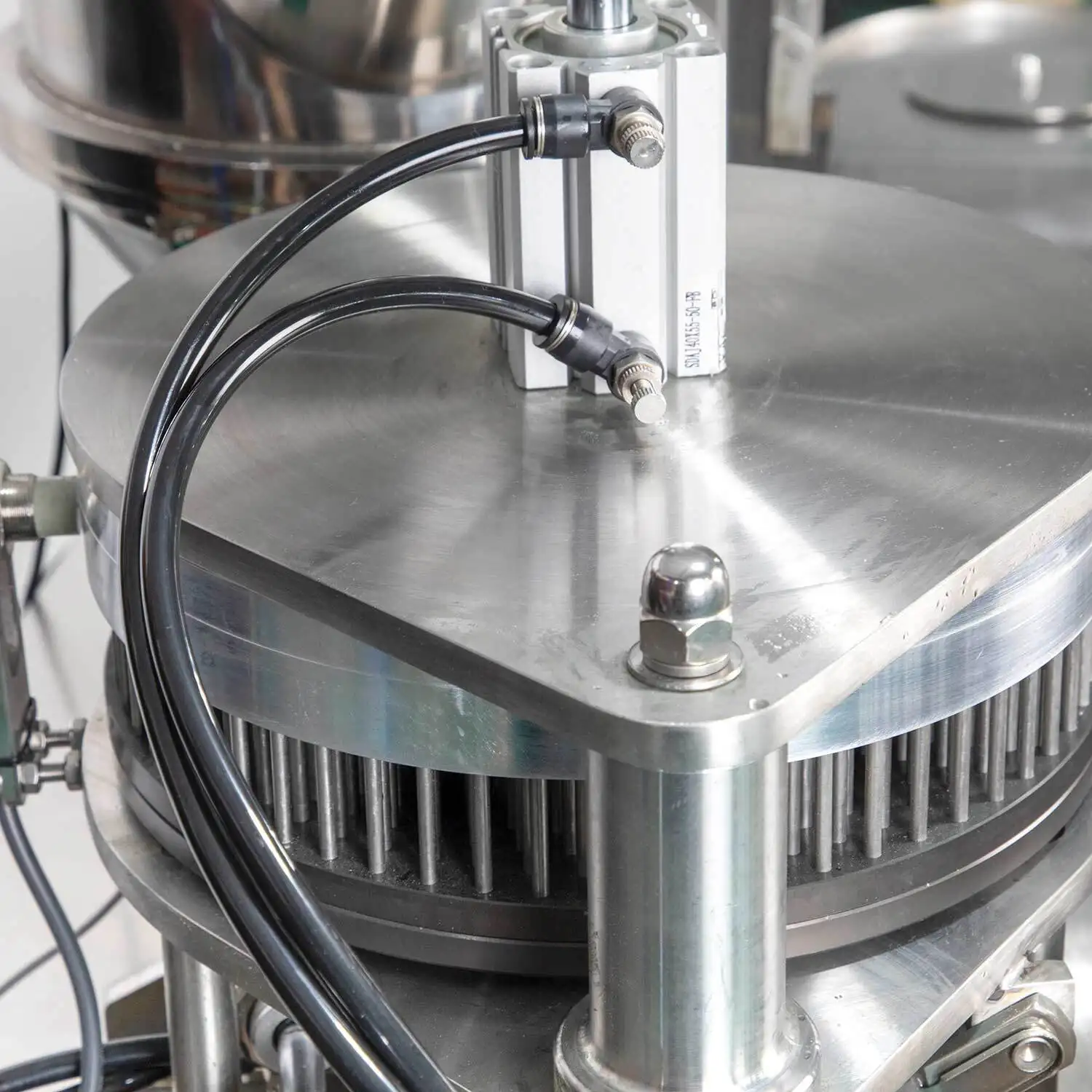

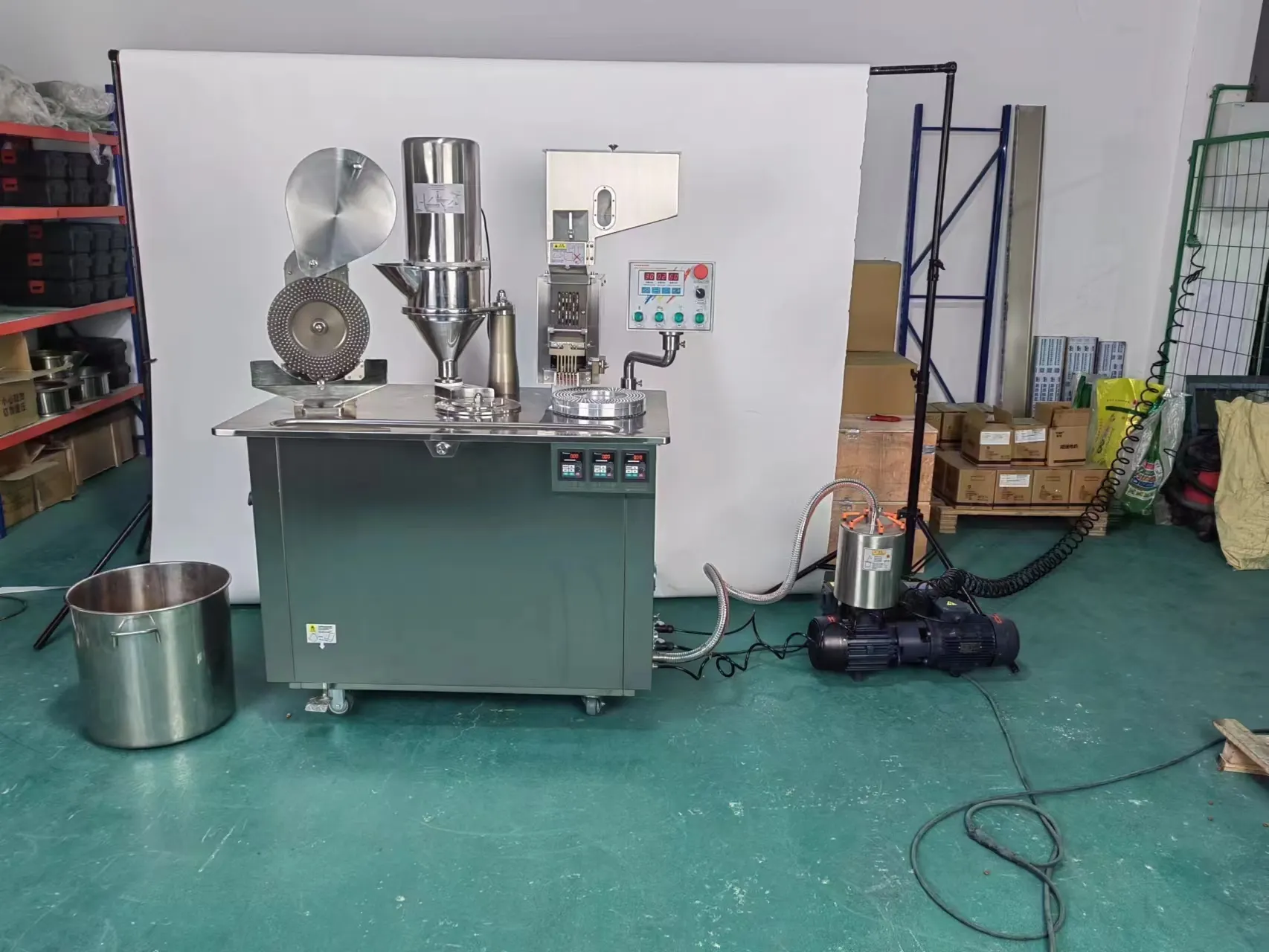

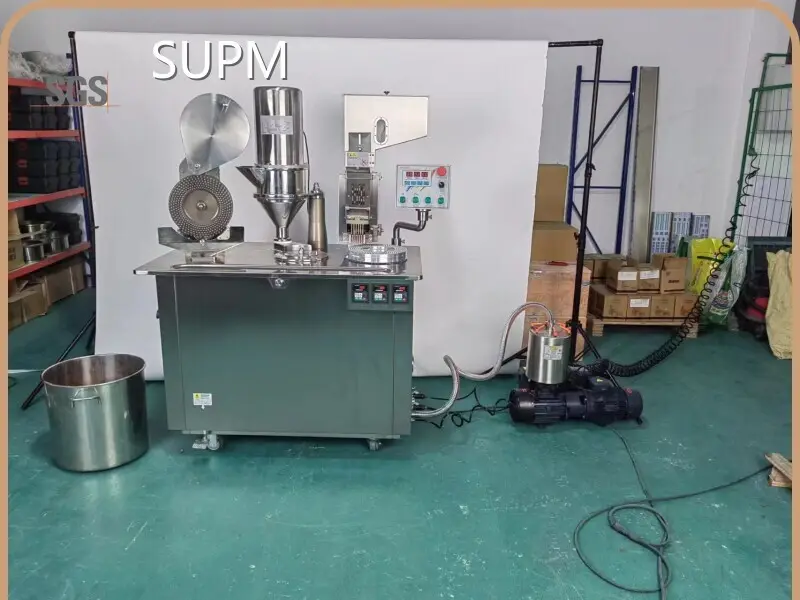

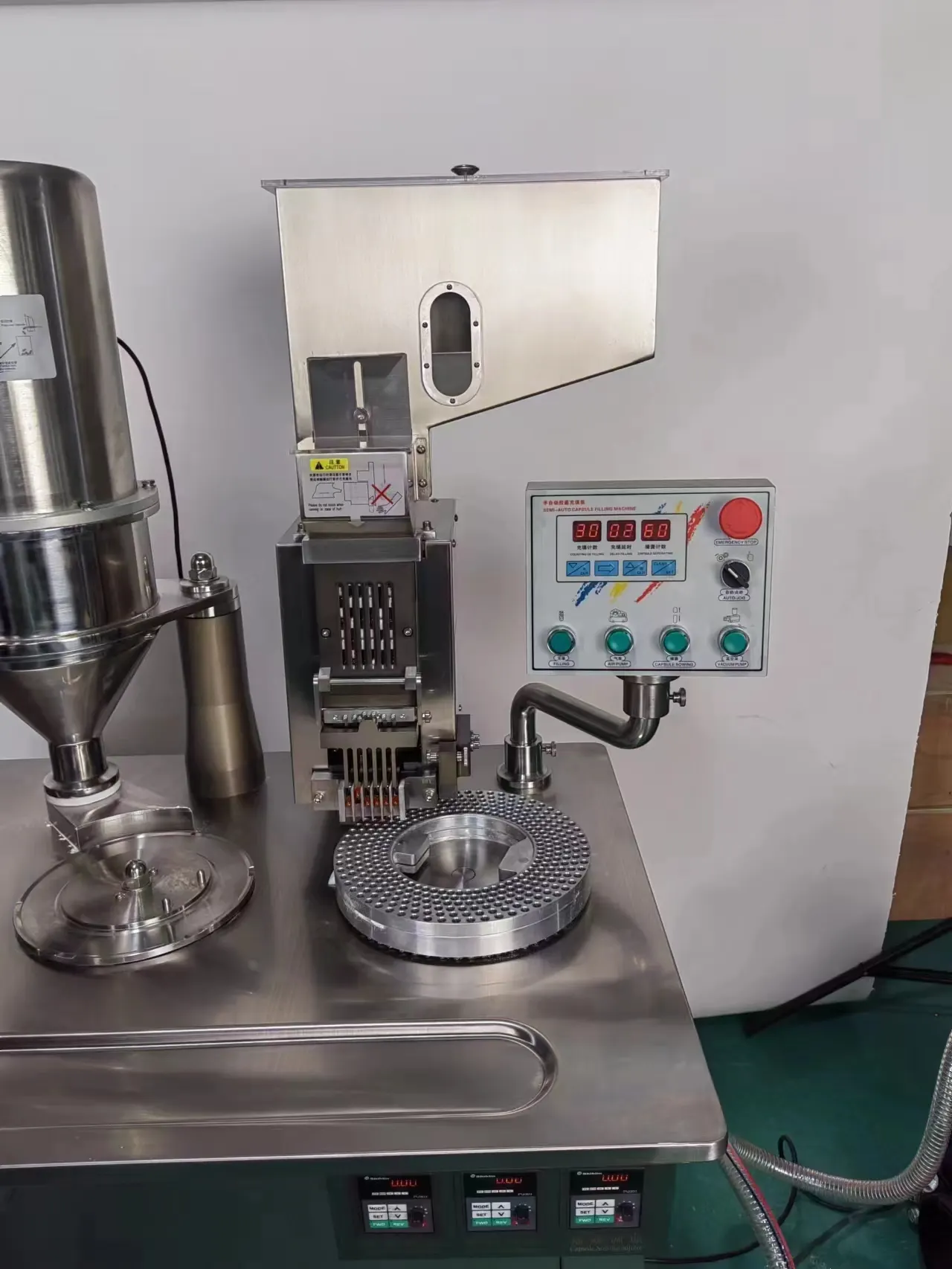

Capsule Filling Machine is new medical packing machinery with novel structure and artistic molding. It adopts mini computer speed-adjusting equipment, and to be controlled by the electric and pneumatic, equips electron automatic counting device. It can respectively finish the different processes separately such as arrangement, separating, filling, locking and etc. which reduce labor intensity, improve production efficiency, raise the accuracy of filling dosage. The machine meet with GMP standard.
This product is composed of sending capsule, arranging capsule and separation mechanism, medicines filling mechanism, tight locking mechanism, mini computer speed-adjusting mechanism, pneumatic and electric control system, protective equipment, vacuum pump, air pump accessories etc. It is suitable for both the domestic and imported capsules; certificated rate is more than 97%.
Company Features
· Shanghai Universal Pharmaceutical Machinery Co.,Ltd. is a China-based firm that is influential and reputable in the manufacturing industry of blister machine pharma.
· Our employees are engaged and empowered to produce world-class products in a safe environment.
· Shanghai Universal Pharmaceutical Machinery Co.,Ltd. will work hard to enhance customer confidence and expand market share. Get price!
Product Details
blister machine pharma's outstanding quality is shown in the details.
Product Comparison
Compared with other similar products, the outstanding advantages of our company's blister machine pharma is mainly reflected in the following points.
Enterprise Advantages
The quality of our products is strongly guaranteed by many professionals with many years of industry experience.
SUPM is committed to providing quality and considerate services based on customer demand.
SUPM operates our business in accordance with speciality, standard and scale. We take 'excellence and innovation, diligence and rigor, honesty-based' as our enterprise spirit. Moreover, we highly value sincerity, responsibility and environmental protection. Based on the firm belief for development, our company takes the initiative to assume social responsibilities while emphasizing economic benefits/ We are committed to becoming a production enterprise respected by the society.
Our company was set up in Since then, we have always been insisting on only selling high-quality products. In this way, we get a steady and healthy development.
We have established extensive trade relations and a huge marketing network at home and abroad. Domestic and foreign customers have come to place order of our products based on their trust for our company.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
