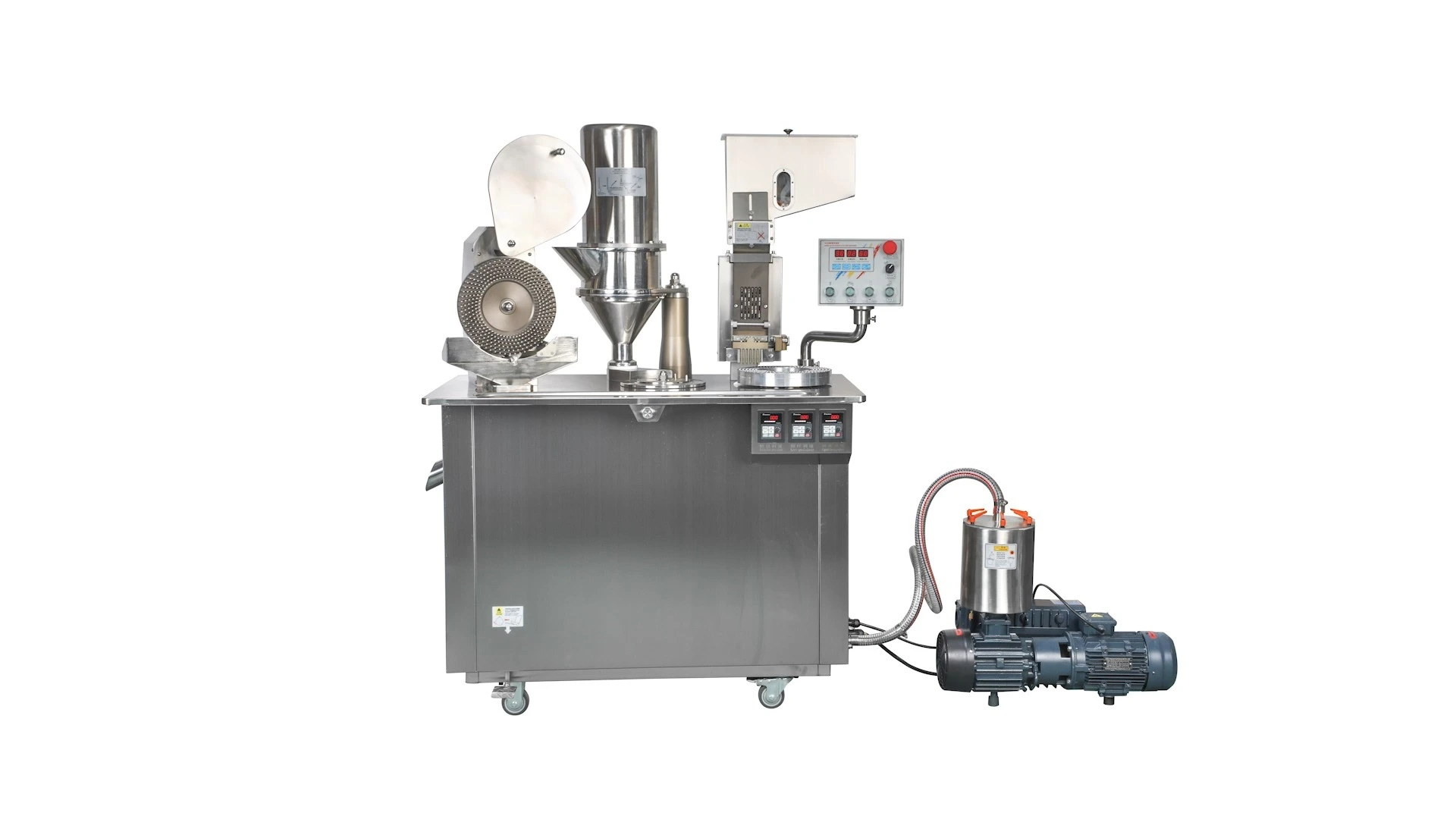

Semi automatic capsule filling machine
Product Description
Illuminate of Semi-automatic Capsule Filling Machine: Integrating machine, electricity and air, the machine is easy to make separate operation of such actions as feeding, separation, filling and locking etc. The machine and working panel are made of stainless steel, which conforms to sanitary requirements of pharmacy. It is also suitable for filling powder of granular medicines and health products into capsule.
Characters:
1. The light-touch switches, feeding propeller and filling rotary table can be in automatic run based on preset and frequency speed control.
2. Reducing the packing cost due to high application and run on.
3. Without traditional gearbox, it is simple in structure and easy to make maintenance.
4. Keeping balance of filling amounts on both sides.
Technical specifications
|
Production capacity |
10000-20000 capsules/h |
|
Applicable capsule |
000#,00#,0#,1#,2#,3#,4# hard and safety-capsules |
|
Total power |
3.1KW |
|
Compressed air |
0.4-0.6MPa,40m3/h |
|
Power supply |
3-phases 4-line (380V 50Hz) |
|
Overall size |
1350×600×1500mm |
|
Weight |
330kg |
CGN-208D Semi-Automatic Capsule Filler
The semi-automatic capsule machine has a fast filling speed and small size differences. This machine integrates the sorting of powder capsule shells, capsule cap covers, and capsule sets, making it compact and convenient. Suitable for small and medium-sized pharmaceutical factories, health product factories, hospitals, and clinics for small to medium batch production
The utility model of this machine relates to a semi-automatic capsule filling machine, in particular to a semi-automatic capsule filling machine switch device, which belongs to the field of capsule filling technology, including an outer frame, a fan-shaped gear, a feeding hopper on one side of the fan-shaped gear, a seeding tube, a fan-shaped rail on the fan-shaped gear, a fan-shaped tooth rack on the outer side of the fan-shaped rail, a capsule delivery component installed at the fan-shaped rail, a capsule delivery component including a seeding belt wheel and a ratchet mechanism, the seeding belt wheel and the ratchet mechanism are connected by a central axis installed on the outer frame at both ends, the ratchet mechanism is matched with the fan-shaped tooth rack, and the seeding belt wheel passes through the seeding mouth on the seeding pipe to compress the capsule. This utility model can improve the performance of this machine. The speed at which capsules are fed into the feeding comb through the seeding tube provides the possibility of improving the overall seeding rate and ensuring that only one capsule is output at a time
The utility model of this machine is a semi-automatic capsule filling machine, which includes a seeding frame, a fan-shaped gear, a vertical rack shaft plate that meshes with the fan-shaped gear, a horizontal rack shaft plate, a compression head and a seeding tube are installed on the vertical rack shaft plate, a pushing plate is installed on the horizontal rack shaft plate, and a seeding comb that works with it is installed on the seeding frame in front of the pushing plate. The switch includes a balance bar, an adjustment screw, a tension spring, a vertical switch plate, and a baffle that works with the adjustment screw. The side wall of the lower end of the seeding tube is equipped with a switch hole, and the bottom end of the switch plate is equipped with a card plate that extends into the switch hole to clamp the capsule. The switch board is equipped with a rotating shaft. The advantages and positive effects of this utility model are that, due to the presence of a switch, it ensures that it can automatically adjust the function of capsule retraction and release, The efficiency of seeding has been greatly improved. The maximum productivity of this utility model can reach 25000 capsules per hour
Product details section
