Bosch Pharma Machines Water Chestnut Type Sugar Coating Machine by SUPM

Product details of the bosch pharma machines

Product Specification

Trademark: SUPM

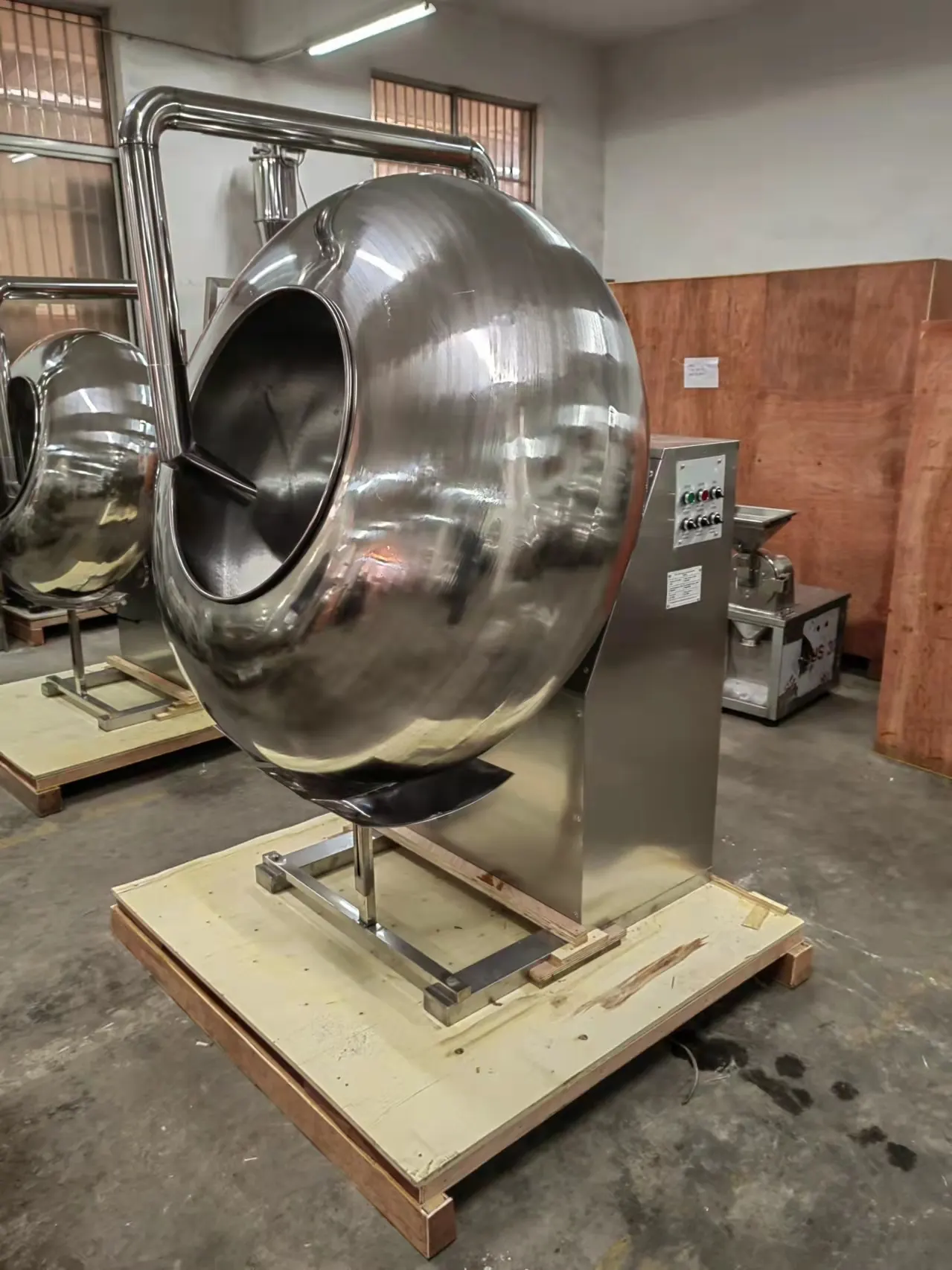

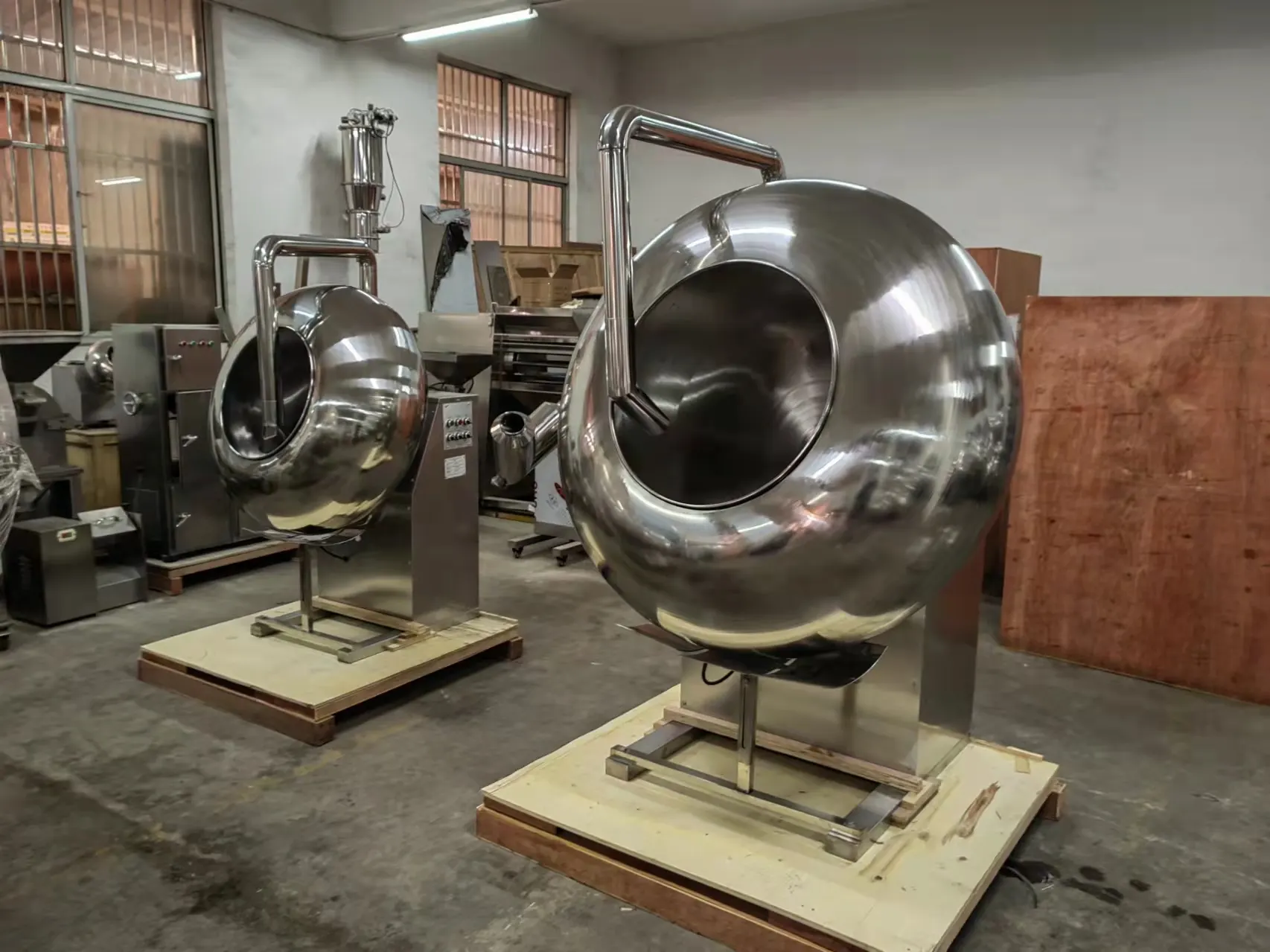

Name: Water chestnut type sugar coating machine

Product Introduction

The modern manufacture technology guarantees the production of SUPM bosch pharma machines. Catering to strict standards, bosch pharma machines is reinforced to guarantee the safety during the usage. bosch pharma machines's export has brought the rich profit repayment for the company.

TApplication:

It is used to coat tablets and pills with sugar in pharmaceutical and food Industry.

These machines sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds. As its feature, the sugarcoating round pot is elevated with a elevation 30° To the horizontal, the heater such as gas or electrical heater can placed directly under the pot. A separated blower with electric heater is provided with the machine. The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity can be selected in two levels.

Operation process

1. Place the host steadily, open the oil filling cover, and add lubricating oil to the gearbox until it reaches the oil mark.

2. Move the spray bracket to the right side of the main unit, place the spray gun in the main unit's clothes pot, and adjust it to a reasonable position. Add coating solution to the liquid cup.

3. Connect the power, turn on the main engine speed control switch, and adjust the main engine speed and rotation direction.

4. Connect the gas and liquid pipes to add liquid to the liquid cup, turn on the gas and liquid switches, and adjust the spray gun and spray direction.

5. Align the hair dryer mouth with the pot mouth to adjust the heating temperature and direction.

6. After the above processes are prepared, start the main motor and let the machine idle for 2 minutes to determine if there are any faults. After confirming that everything is normal, the air compressor can be started with an air pressure of approximately 4-6 kg/cm3.

7. Loading: Pour the pill core to be coated into the coating roller, and fix the gun bracket and spray gun into the pot.

8. Turn on the power switch, and if necessary, turn on the air supply and internal heating switches to coat the materials.

9. Discharge: Turn the spray gun and blower device out of the drum, remove the coating pot, and pour out the material.

Product Details

}FJUUAC)4O3Y(A3V9A0_BJ1 - 副本

1 (5) (2)

1 (6) (2)

1 (3) (2)

d (3)

a (5)

b (2)

c (2)

Company Feature

• SUPM strives to provide quality and comprehensive services based on customer demand.
• Our company enjoys great geographic location with different main transportation lines crossing the city. Besides, the unimpeded road condition provides strong guarantee for the successful transportation of products.
• Our company has participated in major domestic and foreign exhibitions, and kindly communicated with friends from all over the world. Our products have been loved and recognized by people of many countries and have been sold well both at home and abroad.
• Established in SUPM has always been committed to promoting the development of the machinery industry. We are determined to make progress and develop by innovation. We provide high-quality machinery based on technology and talents. We gain wide recognition in the industry.
• Our company has experienced experts and technical teams. They provide experience guidance and technical support for the production. Moreover, the smooth operation of the production would be guaranteed by our professional production staff.
Contact SUPM now and you can get free samples!
