Hot Pharmaceutical Production Line 12hour Response SUPM Brand
Model | BG-80 | |||||||||
Production capacity | 80kg/time | |||||||||
Cylinder dimension | φ940mm | |||||||||
Feed inlet diameter | φ380mm | |||||||||
Roller speed | 2～18r/min | |||||||||
Main machine power | 1.5kw | |||||||||
Hot air motor power | 1.5kw | |||||||||
Exhaust fan motor power | 3.0kw | |||||||||
Hot air blower flow | 1250-2590m3/h | |||||||||
Exhaust fan flow | 2235-3570m3/h | |||||||||
Host noise | ≯75dB(A) | |||||||||
Hot air blower noise | ≯75dB(A) | |||||||||
Exhaust fan noise | ≯75dB(A) | |||||||||
Main machine overall size | 1210×990×2000 | |||||||||
Main machine weight | 550kg | |||||||||
Hot air machine dimensions | 850×900×2150 | |||||||||
Hot air machine weight | 400kg | |||||||||
Exhaust fan dimensions | 900*900*1900 | |||||||||
Exhaust fan weight | 450kg | |||||||||
external conditions
|
Steam plus heat type | Total power supply | Electric heating three-phase five wire 23kw, steam type 8KW Electric heating three-phase five-wire 28kw, steam type 10KW | |||||||
Clean air | pressure | ≥0.6Mpa | ||||||||
Air consumption | 0.6m3/min | |||||||||
steam | pressure | ≥0.6Mpa | ||||||||
Air consumption | 50kg/h
| |||||||||
Water source | pressure | ≥0.15Mpa | ||||||||
Pipe diameter | 1″ | 3/4″ | ||||||||
Electric heating typee | Total power supply | Three-phase five-wire 23kw | ||||||||
Clean air | pressure | ≥0.6Mpa | ||||||||
|
| Air consumption | 0.6m3/min | |||||||
Water source | pressure | ≥0.15Mpa | ||||||||
Pipe diameter | 1″ | 3/4″ | ||||||||

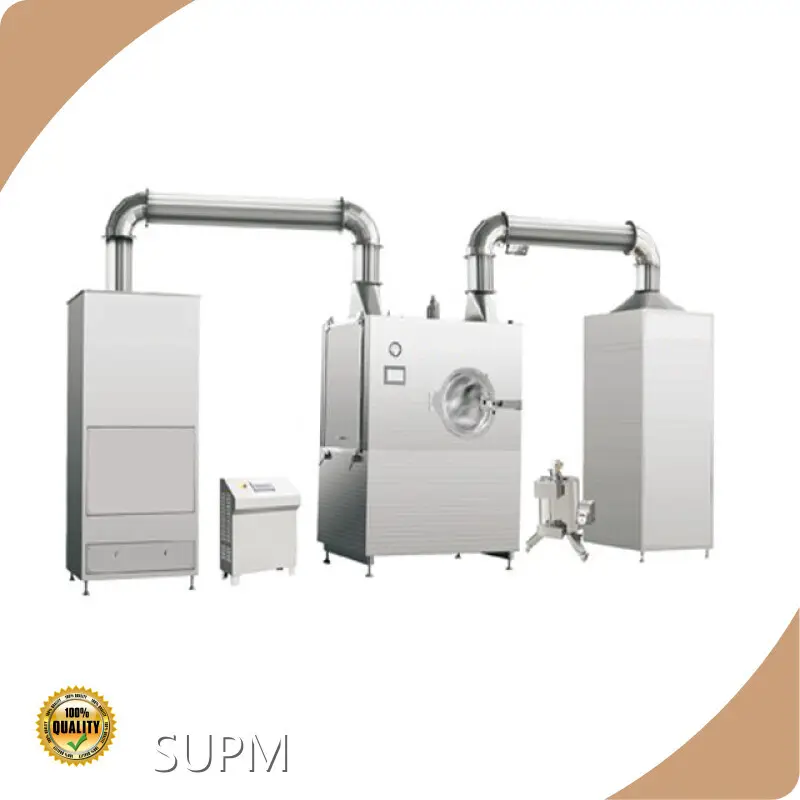

Bg-80 Tablet Film Coating Machine
Product descriptionsDuring the film coating process in the major machine, it shows such feature dust fly off, no syrup splash, operation condition improvement, little cross contamination to tablets, simple coating process, coating time shortening as well as high production efficiency etc. There adopted a new & mini-type computer and a touch screen on which temperature and negative pressure control system are displayed with such functions programmability, automatic adjusting such a majority of process parameters flow, negative pressure, intake, exhaust, temperature, rotational velocity the compile of SOP digitizing, making no difference between various batches products with the same technical parameter. It adds data storage and printing functions with more than 14 program film coating, which are modified at any time in the run. The printing device finished as to the customers' requirement so that the process parameters process flow of each batch of production can be accurately recorded and domestic advanced level. The users may write batch numbers and the codes products on their needs.
Performance and characteristics:
1. The coating boiler equipped in the high pressure spray gun, there set a cleaning sprayer at the air exhaust exit and hot air mouth, which can be rotated in automatic and full direction, without dead corner more convenient to clean. (Option)
2. Select the imported spray gun. It's convenient to operate and easy to master and flexible controlled technological requirement. The spray gun head requirement must keep in the range of 0.29 Mpa to 0.39 Mpa. Angle and sector can be adjustable, uniform density and particle in spray pressure and 0.4-0.5Mpa in atomization pressure that avoid the dropping leakage and blockage phenomenon of size, uniform atomization and large spray area, practical to adjust flow, free leakage and blockage, angle and sector.
3. Film coating machine contains the mechanical device of cauldron wrapping little material can coat at least 20~40kg plain pills in 150 type coating machine, regulate through it inherent machinery, make a small mount of medium coat in cauldron and will not cause the wasted of dressing and greatly improve the scope of appliance.
Basic working principle:
The tablets in drum make complicated and constant track movement with easy and smooth turn frequent exchanging in a clean and closed drum of the film coating machine. The coating mixed round in the mixing drum are sprayed on tablets through the spray gun at the Inlet un action of the peristaltic pump. Meanwhile under the action of air exhaust and negative pressure 100, 000 clean hot air supplied by the air exhaust cabinet is exhausted from the fan at the sieve meshes through tablets. So these coating mediums on the surface of tablets get dry forming a coat of firm, fine and smooth film. The whole process is finished under the control of PLC.
