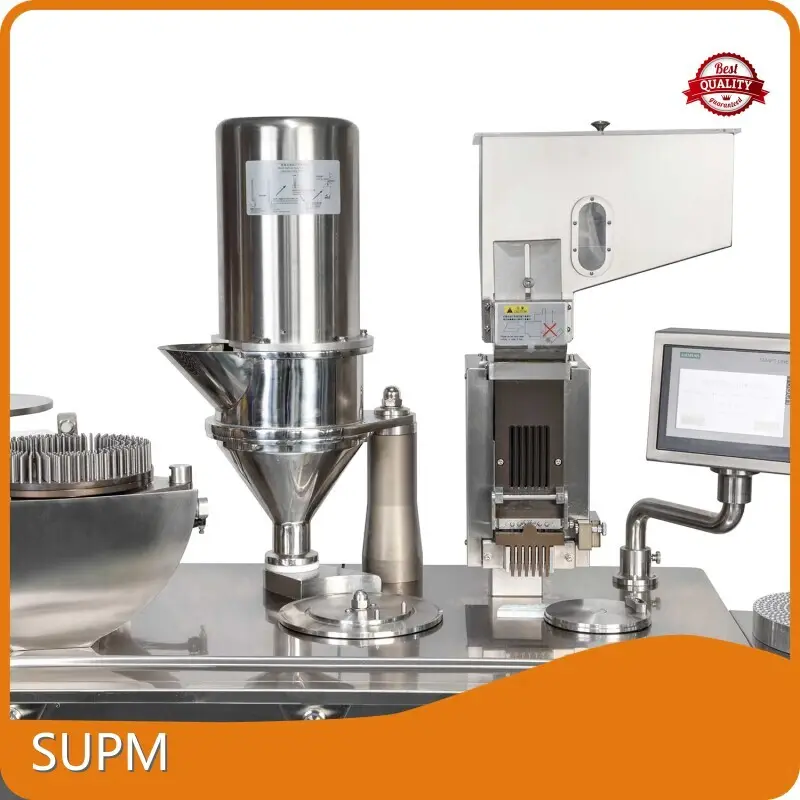

Medicine Packaging Machine SUPM,CGN280 Semi-automatic Capsule Filling Machine
Product details of the medicine packaging machine
Product Specification
Trademark: SUPM
Name: CGN280 semi-automatic capsule filling machine
Product Introduction
SUPM medicine packaging machine is eye-catching in appearance as it is made of high-quality raw materials. The product meets customer expectations for functionality, reliability and durability. The huge user base gives a huge impetus to this product.

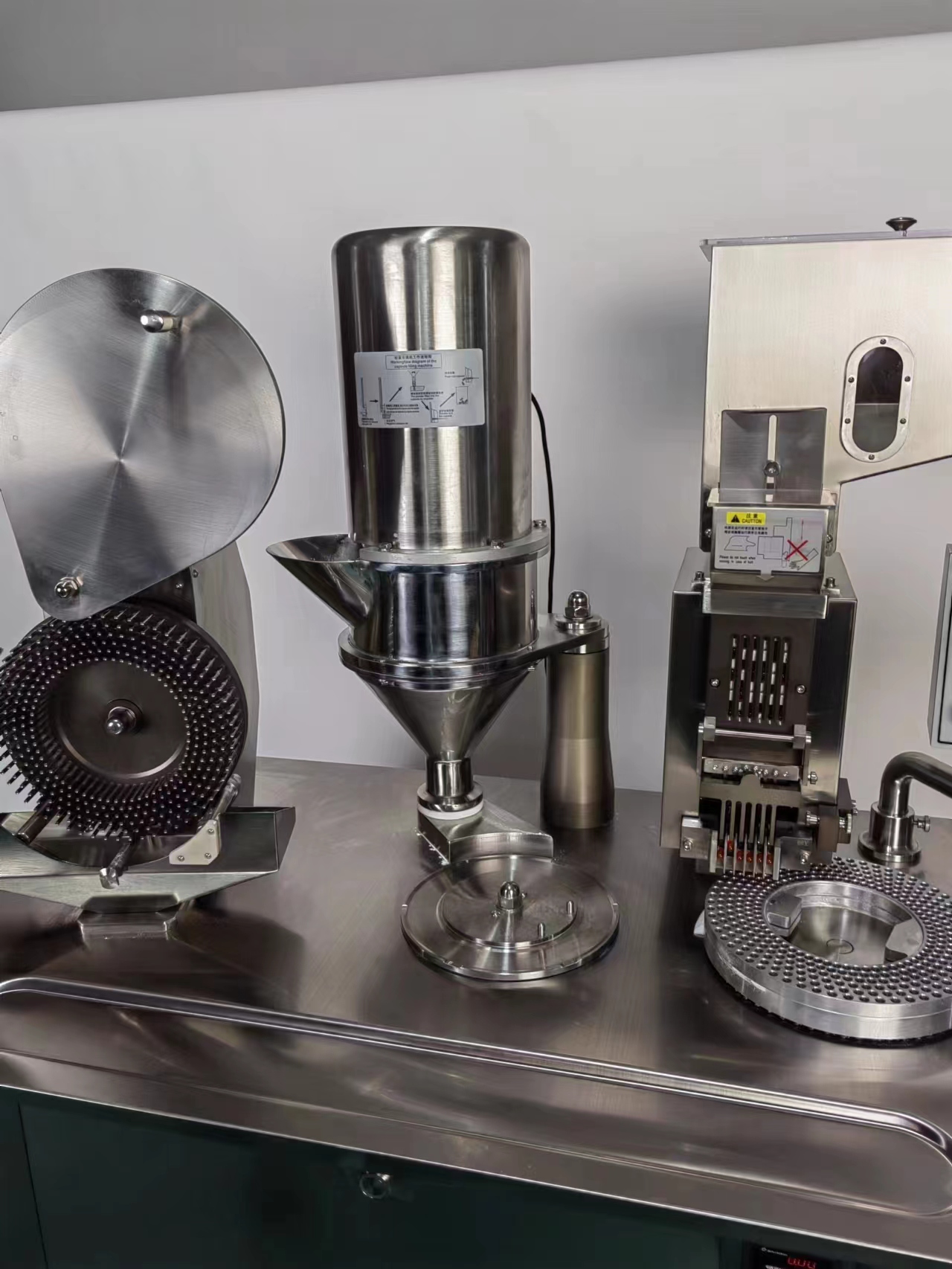

Product Display
semi-Automatic Capsule FillerIntroduction
Modification Type Capsule Filling Machine is new medical packing machinery with novel structure and artistic molding. It adopts mini computer speed-adjusting equipment, and to be controlled by the electric and pneumatic, equips electron automatic counting device. It can respectively finish the different processes separately such as arrangement, separating, filling, locking and etc. which reduce labor intensity, improve production efficiency, raise the accuracy of filling dosage. The machine meet with GMP standard. This product is composed of sending capsule, arranging capsule and separation mechanism, medicines filling mechanism, tight locking mechanism, mini computer speed-adjusting mechanism, pneumatic and electric control system, protective equipment, vacuum pump, air pump accessories etc. It is suitable for both the domestic and imported capsules; certificated rate is more than 97%. Main Technical specifications
| Maximum capacity | 12,500capsules/h |
| Capsule size | 00#,0#,1#,2#,3#,4# hard capsule |
| Power (kw) | 2.2 |
| Power supply | 380V 50Hz |
| Overall dimensions (mm) | 1350x700x1600(LxWxH) |
| Weight (kg) | 400 |
Configuration Part list for semi-automatic Capsule filler
| 1 | Name | Model | Brand/manufacturer | Voltage | Qty | |
| 2 | Pneumatic elements | ModelAC-200 | Hualong group | 2 | ||
| 3 | Bearing | Many models | haerbin | Group | ||
| 4 | Reducer | WPWD-40 | Hangzhou yushen reducer factory | 2 | ||
| 5 | Motor | YS6324.7124 | Zhejiang linhai chunhua motor | 3 | ||
| 6 | Vacuum pump | XD-40 | Shanghai pujing | 1 | ||
| 7 | Stainless steel | 304 | China | Pieces | ||
| 8 | Inverter | N2 | T-VERTER from Taiwan | 2-220V | 2 | |
| 9 | Counter | SYJ-48A1 | Zhejiang ruian chaoke | AC-36V | 2 | |
| 10 | Heat relay | NR2-25 | CHNT | 1 | ||
| 11 | Button | LAS1-BY-11M | Zhejing hongbo | 8 | ||
| 12 | AC contactor | LC1-D09/10 | Schneider | AC-36V | 3 | |
| 13 | Transformer | BK-100 | Zhejiang transformer group,inlet 220,outlet 36V | 1 | ||
| 14 | Time relay | AH-3-3 | CKC-songling motor | AC-36V | 1 | |
| 15 | Miniature relay | HH564P | Zhejiang lierde | AC-36V | 2 | |
| 16 | Mini relay | DZ47-10/1P | CHNT | 1 | ||
| 17 | Mini breaker | DZ47-10/1P | CHNT | 1 | ||
| 18 | Proximity switch | GL-8F | OMRON | DCO-36V | 1 | |
| 19 | Emergency button | Y090-11M | Zhejiang niushi | 1 | ||
| 20 | Distance switch | AZ-7311 | Zhejiang niushi | 1 | ||
| 21 | Proximity switch | ANJK-5002C | Zhejiang taihua | 1 | ||
Company Feature
• SUPM's Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca gain a relatively large market share in China. They are also exported to Africa, Southeast Asia, and other countries and regions.
• SUPM provides excellent services for customers on the premise of meeting customer demand.
• Reasonable in design, stable in operation, convenient in operation and reliable in quality, the mechanical equipment produced by SUPM has a long product life.
• Our company is provided with a sound production management system and a rigorous and efficient R&D design team. Based on that, we could quickly understand the needs of customers and provide efficient and professional custom services.
• SUPM enjoys developed telecommunication and traffic convenience. The geographic location is superior and the natural conditions are good.
SUPM's Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca are available in diverse style and favorable price. If you have any needs, please leave your contact information. We will get back to you in time.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
