Packaging of Skin Care Products 3000kg by SUPM

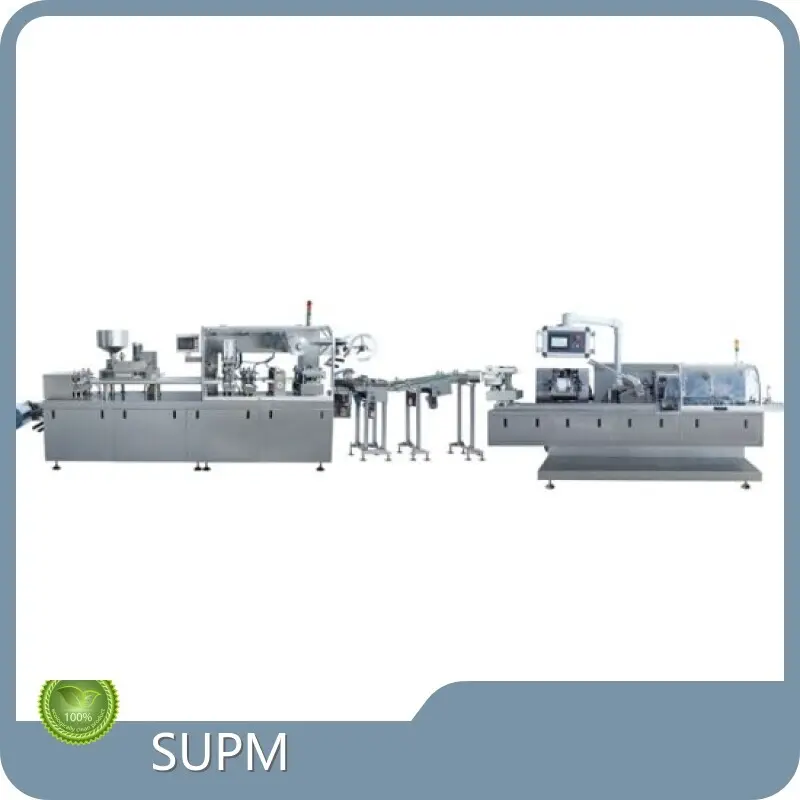

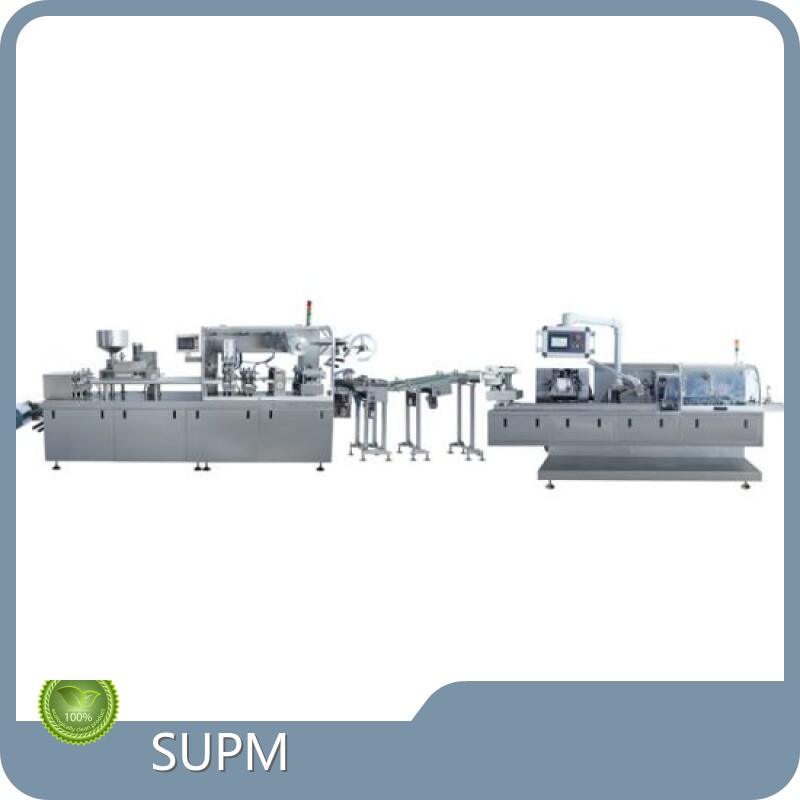

ALU-PVC Blister Packaging and Auto Cartoner Full Production Line (BZX-120B)
Performance characteristics
The production line uses a separate control system for equipment operation, maintenance, maintenance is very convenient;
2.DPP-260H2 imported servo motor traction device improves the running stability performance, and automatically forming, feeding, checking, sealing, batch number (indentation) and punching, testing and rejecting qualified products through the input system into boxing servo feeding system, automatic cartoning machine detection kits, brochures, version after the drug into the box before they were to meet to ensure that products passing rate of 100%;3. hardware, software, user-friendly design, the whole production line automation adjustment, saving the waste of resources, improve production efficiency;4. The device transitional soft connection, the production floor space flexible layout, efficient use of space;5. Equipment split packaging, transportation, use of the site is more conducive to handling and installation.Main Technical ParametersDPP-260H2Technical Parameters
| MODEL | DPP-260H2 |
| Cutting Ffequency | Al/plastic25-60times/min |
| Production Capacity | Al/plastic:140thousand Grains/hour |
| Max Forming Depth | Al/plastic:22mm (customized forming depth) |
| Travel Range | 30-120 mm ( made to order140 mm) |
| Total Power | 380V 50HZ 8.5KW |
| PVC Rigid Sheet | 0.25-0.5×260 mm |
| Dialysis Paper | 50-100g×260 mm |
| PTP Aluminum Foil | 0.02-0.035 ×260 mm |
| Cooling | Condensate(self)or cold circulating water(optional) |
| Overall Dimensions | 4460×760×1620mm |
| Weight | 1850kg |
| MODEL | DPP-260H2 |
WZH-120 Technical Parameters
| Project / Model | WZH-120 | |
| Speed | 50-100cartons/ Minute | |
| Box dimension range | L(60-180)mm×W(20-80)mm×H(15-70)mm | |
| Quality requirement | 250-450g/m3 | |
| instructions | Quality requirements | 60-70g/m2 |
| Unfolded size range | (80-250)X(90-170)mm | |
| Folding range | (1-4)folding | |
| Main motor power | 1.5KW 380V 50Hz | |
| Machine noise | ≤80dB | |
| Air | 0.5-0.8 Mpa | |
| Air consumption | 120-160L/min | |
| Overall dimensions | About 3170×1260×1750 mm | |
| Weight | 1200Kg | |
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
Company Advantages
· Stressing the importance of design of packaging of skin care products turns out to be a right way.
· SUPM offer packaging of skin care products with chic styles which meets different needs.
· It is well-known that SUPM is a professional enterprise who is engaged in packaging of skin care products business.
Company Features
· Throughout our manufacturing history, Shanghai Universal Pharmaceutical Machinery Co.,Ltd. has been recognized as one of the leaders in the manufacture of packaging of skin care products.
· We are supported by a team of professionals. They are continuously developing and improving manufacturing methods to ensure the highest possible level of value, quality, and products to meet our customers' needs.
· Shanghai Universal Pharmaceutical Machinery Co.,Ltd. will always strives for first-rate packaging of skin care products. Contact!
Application of the Product
The packaging of skin care products produced by our company can be used in many fields.
We can provide customers with the most professional and effective solutions based on market research results and customer needs.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
