Pharmaceutical Blister Packaging Machine SUPM SUPM Company
Product details of the pharmaceutical blister packaging machine
Product Specification
Trademark: SUPM
Name: hight speed blister packing machine
Quick Detail
SUPM's mechanical equipment has reasonable structure, novel design, stable performance and reliable quality. And our product is convenient to be operated and there is only a little noise while using. SUPM pharmaceutical blister packaging machine is produced under standard and highly automated production environment. It turns out to be effective that our QC team has been always focusing on its quality. In tune with the industry standard, these potential products meet the needs of our clients.
Product Description
Compared with similar products, our pharmaceutical blister packaging machine's outstanding advantages are as follows.

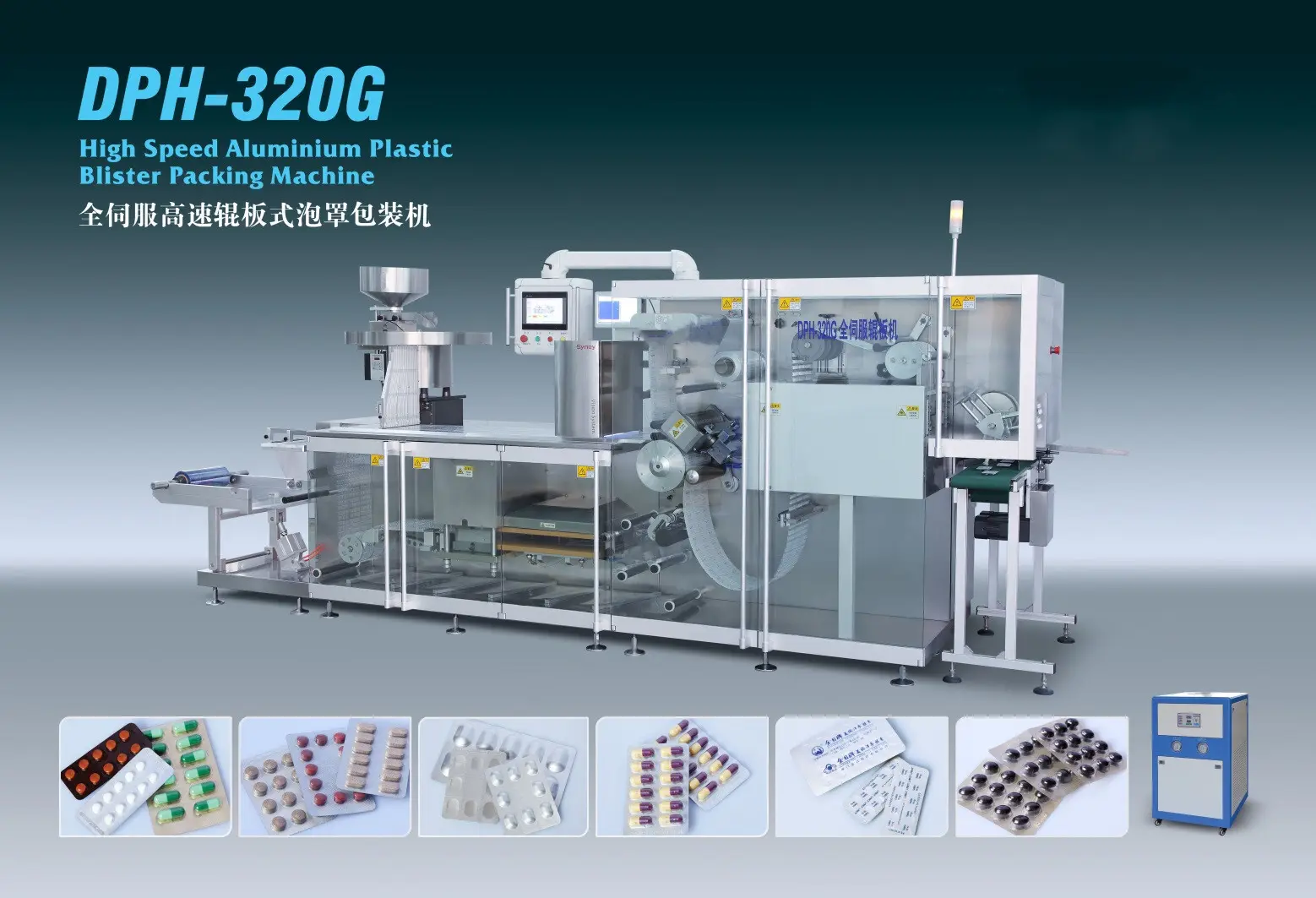

Full Servo High Speed Roller Plate Blister Packaging Machine
Main technical parameters
DPH-320G series high-speed roller plate blister packaging machine
model | unit | The main technical parameters |
Maximum punching speed | times/min | 240 |
Maximum punching speed | mm | 12 |
Maximum forming area | mm | 240×320（L×W） |
PVC (thickness x width) | mm | （0.25-0.35）×320 |
Aluminum foil PTP (thickness x width) | mm | 0.02×320 |
PVC coil outer diameter | mm | <φ700 |
PTP coil outer diameter | mm | <φ250 |
PVC & PTP Core Aperture | mm | φ70～76 |
Dimensions (L×W×H) | mm | 4460×1350×1950 (split 2600+1860) Wooden box 2.77×1.27×1.93 meters; 2.02×1.42×2.23 meters |
barometric pressure | Mpa | Air pressure 0.5-0.7Mpa Air consumption: 0.4m³/min |
Cooling water | Mpa | Water pressure: 0.1-0.25Mpa Water consumption: 0.01-0.02m³/min Circulating cold water tank or tap water |
weight | kg | 3500 |
Installed power | kw | 20kw 380V/ 50Hz (It can be determined according to customer requirements) |
Product Display
Company Introduction
Located in shang hai, Shanghai Universal Pharmaceutical Machinery Co.,Ltd. mainly produces and supplies Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca in the industry. After years of development, SUPM has rich industry experience in the machinery manufacturing. We successfully created the brand called SUPM. SUPM runs a high-quality logistics management system to achieve efficient transportation of products. Besides, we run a comprehensive pre-sales, sales and after-sales service system to solve various problems in time for customers. SUPM not only has a great production capability, but also a professional technical and R&D team. We can continue to provide professional processing services. We are also available in customized services based on the picture or sample.
Hello, thanks for your attention to SUPM! If in need, please feel free to call us or place orders. We are committed to serving you!
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
