Product details of the pharmaceutical filling machine
Product Specification

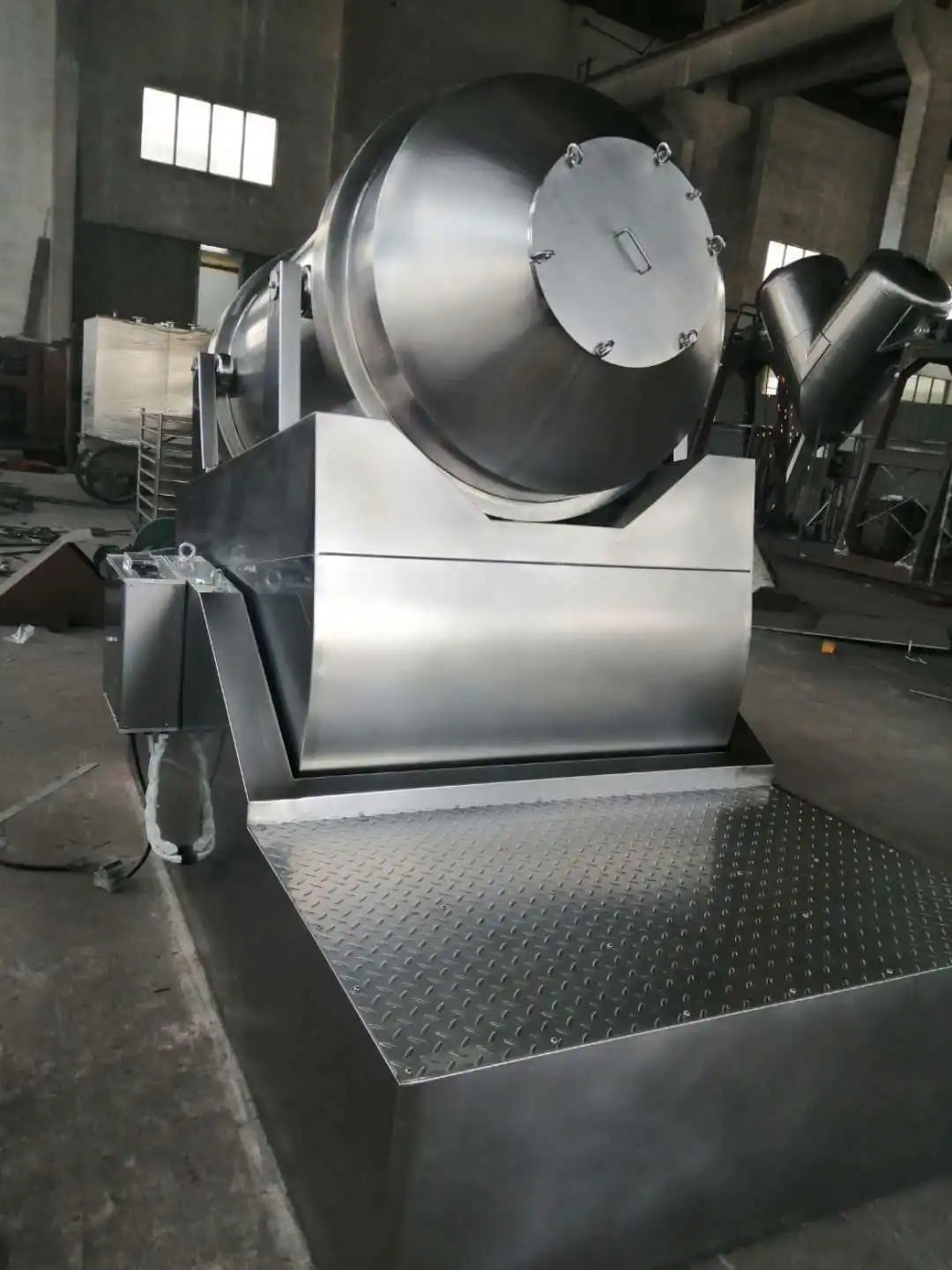

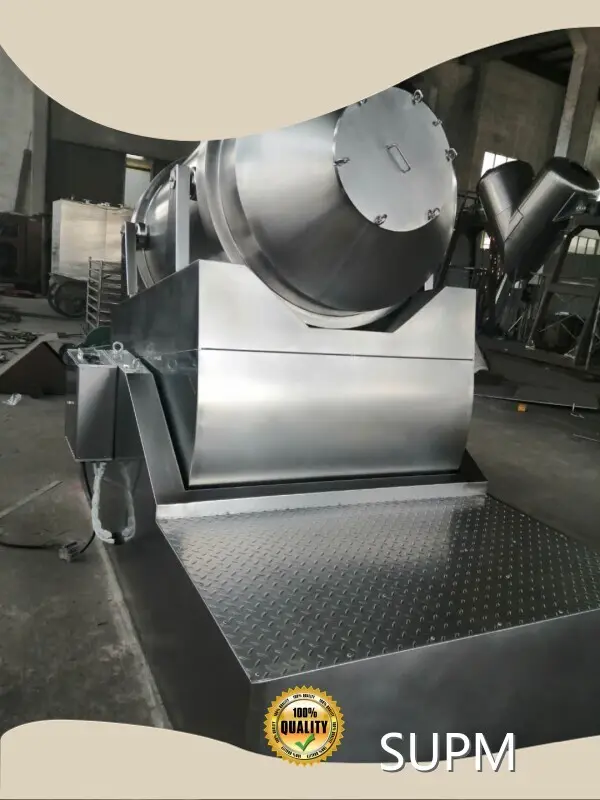

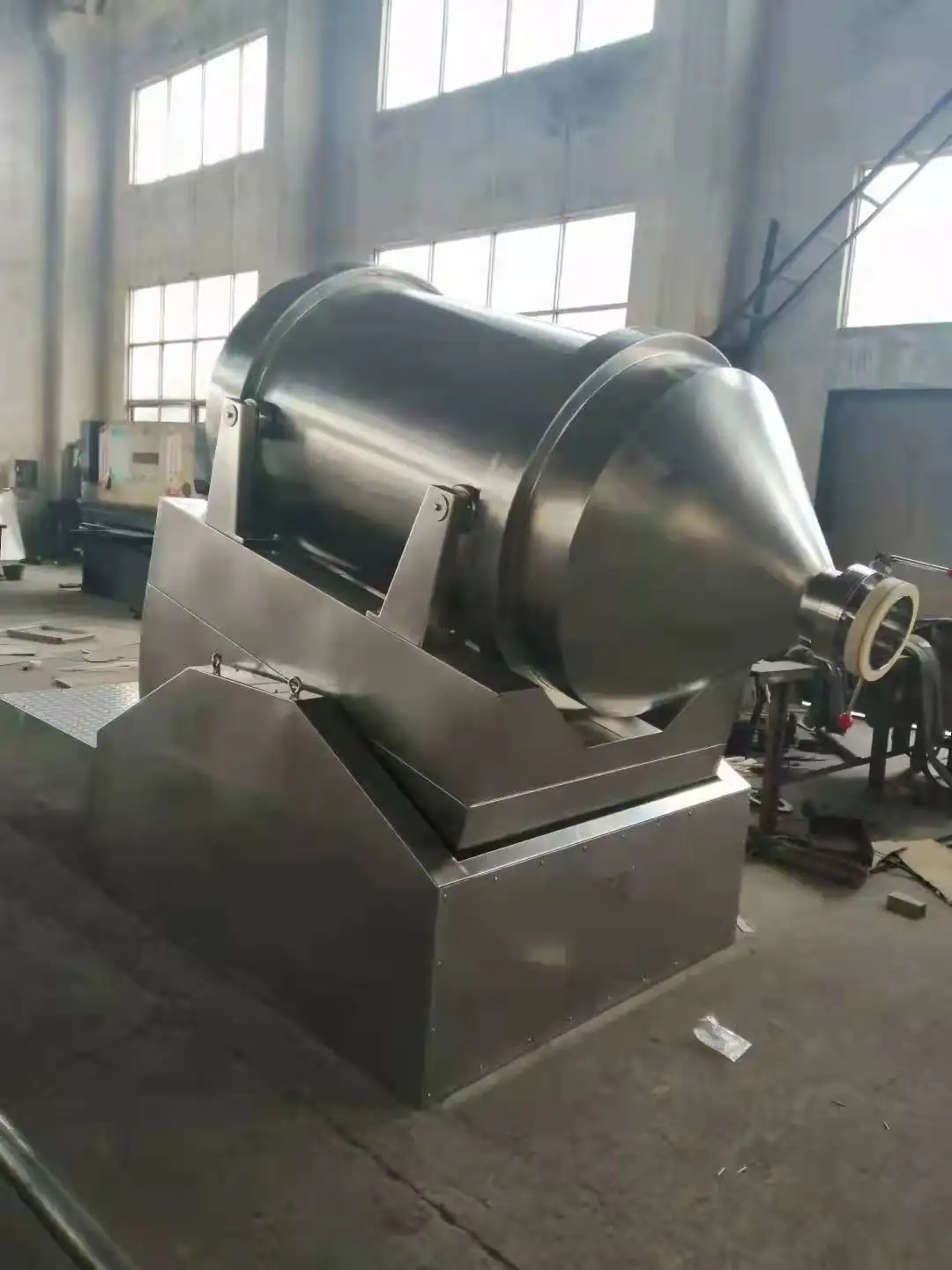

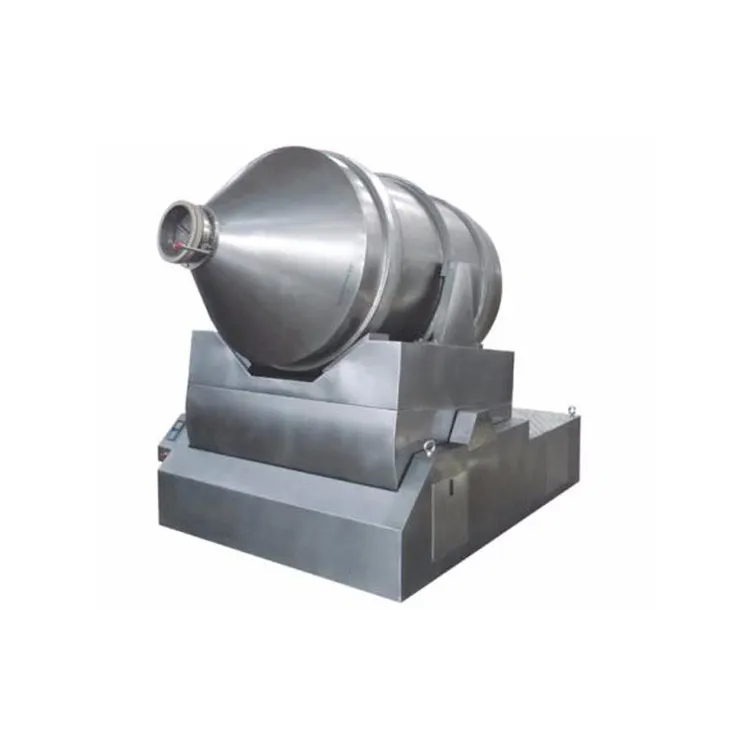

Name: Two dimensional motion mixer
Trademark: SUPM
Origin: China
Product Introduction
The raw material of SUPM pharmaceutical filling machine actively complies with international green specifications. Strict quality tests are conducted to ensure longevity and cost effectiveness of this offered product. Sustainability touches all aspects of Shanghai Universal Pharmaceutical Machinery Co.,Ltd.'s business.
Applications& Feature:This mixer is widely used in pharmaceutical, chemical, food, dye, chemical fertilizer and pesticide industries and especially suitable for mixing various solid materials with large volume (1000tp-10000litres).The mixing barrel swings while rotating so that the materials in the barrel can be fully mixed. Because the discharge outlet of the barrel is out of the barrel centre line, the mixer features quick mixing and discharging, as well as high volume mixing capacity.
| Model of mixer | Barrel volume (L) | Loading volume (L) | Max.loading capacity(kg/batch) | rotation(rpm) | Total motor power(kw) | Dimension(mm) | Total weight (kg) | Drum Weight(kg) |
| EYH-10 | 10 | 5 | 2.5 | 85 | 0.021 | 310*400*450*395 | 15 | 4 |
| EYH-30 | 30 | 15 | 7.5 | 61 | 0.19 | 540*580*900*700 | 60 | 8.5 |
| EYH-60 | 60 | 30 | 15 | 50 | 0.4 | 700*730*1100*990 | 115 | 15 |
| EYH-150 | 150 | 75 | 37.5 | 37 | 1.15 | 800*1050*1450*1340 | 190 | 50 |
| EYH-300 | 300 | 150 | 75 | 30 | 1.15 | 900*1350*1550*1400 | 340 | 60 |
| EYH-600 | 600 | 300 | 150 | 23.6 | 3 | 1170*1640*2050*1910 | 1150 | 140 |
| EYH-800 | 800 | 400 | 200 | 19.8 | 3 | 1320*1950*2150*2000 | 1600 | 200 |
| EYH-1000 | 1000 | 500 | 250 | 19.8 | 3 | 1360*2, 040*2300*2170 | 1700 | 240 |
| EYH-1500 | 1500 | 750 | 375 | 16.2 | 4.4 | 1580*2400*2550*2330 | 2000 | 320 |
| EYH-2000 | 2000 | 1000 | 500 | 16.2 | 7.4 | 1740*2600*2770*2550 | 2600 | 430 |
| EYH-3000 | 3000 | 1500 | 750 | 13.8 | 11 | 1800*2900*2950*2800 | 3500 | 620 |
| EYH-4000 | 4000 | 2000 | 1000 | 12.8 | 13 | 1970*3300*3300*2950 | 4100 | 700 |
| EYH-6000 | 6000 | 3000 | 1500 | 11.2 | 18.5 | 2300*2900*3800*3100 | 6100 | 1100 |
| EYH-8000 | 8000 | 4000 | 2000 | 10.4 | 22 | 2540*4100*4050*3650 | 7900 | 1450 |
| EYH-10000 | 10000 | 5000 | 2500 | 9 | 30 | 2900*4500*4400*4020 | 9500 |
