Pharmaceutical Filling Machine SUPM by SUPM
Product details of the pharmaceutical filling machine
Product Specification
Trademark: SUPM

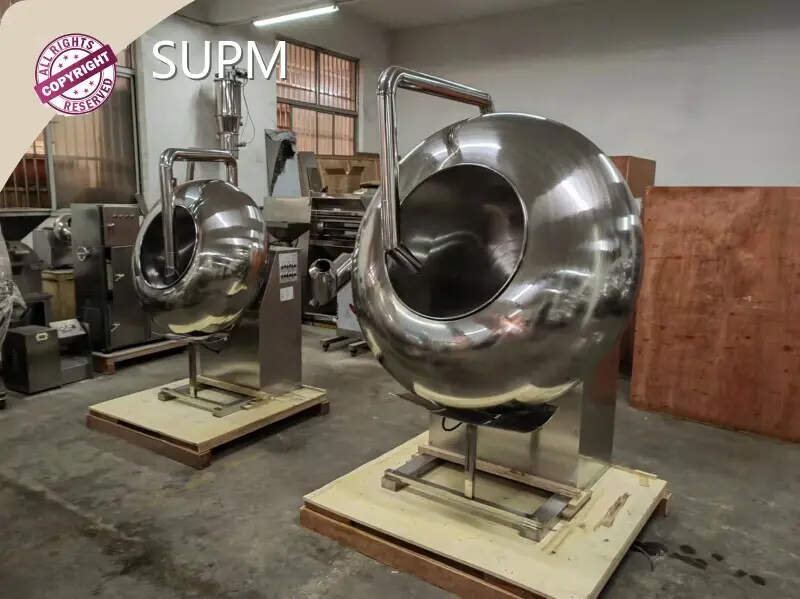

Name: Water chestnut type sugar coating machine
Product Description
SUPM pharmaceutical filling machine is manufactured using the latest machinery and known for its reliable attributes. The product has been quality tested before delivery to ensure that it is flawless and free from any defect. Professional QC team is equipped to ensure the quality of pharmaceutical filling machine.
| Type | Capacity(Kg) | Angle of inclination | Motor power(Kw) | Fan power(Kw) | Overall dimension(mm) | Heating power(Kw) | Weight(Kg) | Rotary speed(rad/min) |
| BY300 | 1~3 | 30° | 0.37 | 40 | 800×800×1200 | 1KW | 200KG | 0-46 |
| BY400 | 2~5 | 30° | 0.55 | 40 | 800×800×1200 | 1KW | 200KG | 0-46 |
| BY800 | 30~50 | 30° | 1.1 | 200 | 1000×1000×1550 | 3KW | 400KG | 0-32 |
| BY1000 | 50~70 | 30° | 1.5 | 200 | 1200×1200×1600 | 4KW | 450KG | 0-32 |
| BY1250 | 80~150 | 30° | 2.2 | 370 | 1350×1350×1600 | 6kw | 800KG | 0-28 |
TApplication:
Operation process
1. Place the host steadily, open the oil filling cover, and add lubricating oil to the gearbox until it reaches the oil mark.
2. Move the spray bracket to the right side of the main unit, place the spray gun in the main unit's clothes pot, and adjust it to a reasonable position. Add coating solution to the liquid cup.
3. Connect the power, turn on the main engine speed control switch, and adjust the main engine speed and rotation direction.
4. Connect the gas and liquid pipes to add liquid to the liquid cup, turn on the gas and liquid switches, and adjust the spray gun and spray direction.
5. Align the hair dryer mouth with the pot mouth to adjust the heating temperature and direction.
6. After the above processes are prepared, start the main motor and let the machine idle for 2 minutes to determine if there are any faults. After confirming that everything is normal, the air compressor can be started with an air pressure of approximately 4-6 kg/cm3.
7. Loading: Pour the pill core to be coated into the coating roller, and fix the gun bracket and spray gun into the pot.
8. Turn on the power switch, and if necessary, turn on the air supply and internal heating switches to coat the materials.
9. Discharge: Turn the spray gun and blower device out of the drum, remove the coating pot, and pour out the material.
Product Details
Company Advantage
• SUPM's Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca feature stable performance, high quality, and easy operation. Besides, they are reasonably-priced and well-designed.
• SUPM is equipped with a group of high-quality and high-level talents. They contribute to rapid development.
• SUPM gathers a group of experienced technical and management talents in R&D, manufacturing, and after-sales service. We can provide high-quality custom services according to the need of each customer.
• The natural resources around SUPM are abundant. The geographical condition is excellent which brings developed information and traffic convenience.
• SUPM has won a large number of domestic and foreign loyal customers for a good reputation, high-quality products, and excellent service.
We have ample inventory and discounts for large purchases. Welcome to contact us!
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
