Product details of the pharmaceutical manufacturing line
Product Specification
Origin: China
Trademark: SUPM

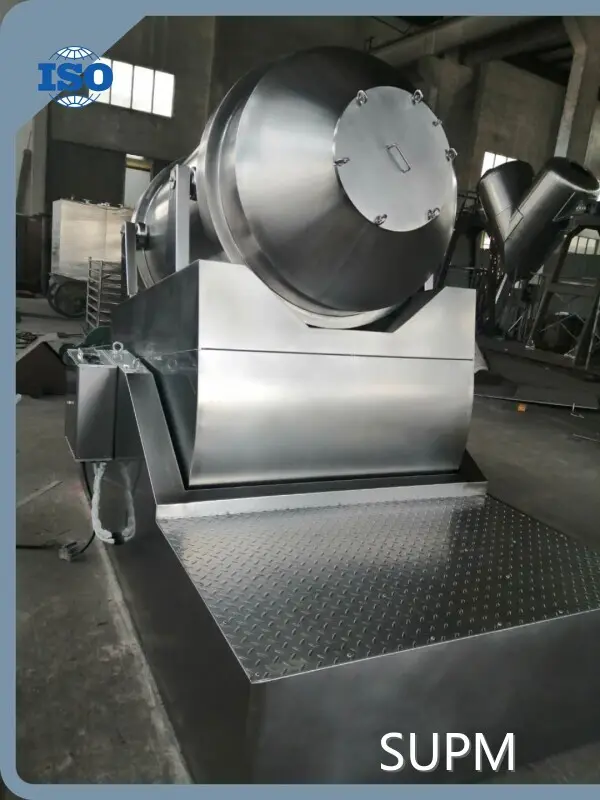

Name: Two dimensional motion mixer
Product Introduction
Raw materials used for the production of SUPM pharmaceutical manufacturing line is procured from reliable vendors. The results showed that there are good comprehensive properties in pharmaceutical manufacturing line. Shanghai Universal Pharmaceutical Machinery Co.,Ltd. has strict quality control system and perfect monitor method.
Applications& Feature:This mixer is widely used in pharmaceutical, chemical, food, dye, chemical fertilizer and pesticide industries and especially suitable for mixing various solid materials with large volume (1000tp-10000litres).The mixing barrel swings while rotating so that the materials in the barrel can be fully mixed. Because the discharge outlet of the barrel is out of the barrel centre line, the mixer features quick mixing and discharging, as well as high volume mixing capacity.
| Model of mixer | Barrel volume (L) | Loading volume (L) | Max.loading capacity(kg/batch) | rotation(rpm) | Total motor power(kw) | Dimension(mm) | Total weight (kg) | Drum Weight(kg) |
| EYH-10 | 10 | 5 | 2.5 | 85 | 0.021 | 310*400*450*395 | 15 | 4 |
| EYH-30 | 30 | 15 | 7.5 | 61 | 0.19 | 540*580*900*700 | 60 | 8.5 |
| EYH-60 | 60 | 30 | 15 | 50 | 0.4 | 700*730*1100*990 | 115 | 15 |
| EYH-150 | 150 | 75 | 37.5 | 37 | 1.15 | 800*1050*1450*1340 | 190 | 50 |
| EYH-300 | 300 | 150 | 75 | 30 | 1.15 | 900*1350*1550*1400 | 340 | 60 |
| EYH-600 | 600 | 300 | 150 | 23.6 | 3 | 1170*1640*2050*1910 | 1150 | 140 |
| EYH-800 | 800 | 400 | 200 | 19.8 | 3 | 1320*1950*2150*2000 | 1600 | 200 |
| EYH-1000 | 1000 | 500 | 250 | 19.8 | 3 | 1360*2, 040*2300*2170 | 1700 | 240 |
| EYH-1500 | 1500 | 750 | 375 | 16.2 | 4.4 | 1580*2400*2550*2330 | 2000 | 320 |
| EYH-2000 | 2000 | 1000 | 500 | 16.2 | 7.4 | 1740*2600*2770*2550 | 2600 | 430 |
| EYH-3000 | 3000 | 1500 | 750 | 13.8 | 11 | 1800*2900*2950*2800 | 3500 | 620 |
| EYH-4000 | 4000 | 2000 | 1000 | 12.8 | 13 | 1970*3300*3300*2950 | 4100 | 700 |
| EYH-6000 | 6000 | 3000 | 1500 | 11.2 | 18.5 | 2300*2900*3800*3100 | 6100 | 1100 |
| EYH-8000 | 8000 | 4000 | 2000 | 10.4 | 22 | 2540*4100*4050*3650 | 7900 | 1450 |
| EYH-10000 | 10000 | 5000 | 2500 | 9 | 30 | 2900*4500*4400*4020 | 9500 |
Company Advantage
• Established in SUPM has always been committed to promoting the development of the machinery industry. We are determined to make progress and develop by innovation. We provide high-quality machinery based on technology and talents. We gain wide recognition in the industry.
• The superior location and convenient transportation have laid a good foundation for our company's development.
• We promise choosing SUPM is equal to choosing quality and efficient services.
• The sales range of Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca we produce covers the whole country. At present, some Asian countries are actively looking for cooperation with us and it greatly shows a broad development prospect for our products.
• SUPM's machinery is deeply favored by most customers for the following advantages: reasonable and novel design, compact structure, stable performance, and easy operation and installation.
SUPM encourages customers to try out our samples before cooperating with us. Contacts us and you will get free samples.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
