We are specialized in pharmaceutical machinery and packaging machine for more than 20 years.

Pharmaceutical Packaging Lines SUPM SUPM 1

Pharmaceutical Packaging Lines SUPM SUPM 2

Pharmaceutical Packaging Lines SUPM SUPM 3

Pharmaceutical Packaging Lines SUPM SUPM 4

Pharmaceutical Packaging Lines SUPM SUPM 5

Pharmaceutical Packaging Lines SUPM SUPM

After-sales Service:

12hour response

Model NO.:

DPH-260

Inquiry

Origin

China

Trademark

SUPM

Name

blister packing machine

Company Advantages

· pharmaceutical packaging lines can be made by different materials.

· The quality of this product is one of the best due to the adoption of the strict quality control system.

· The product is popular in the market currently and can be more widely used in the future.

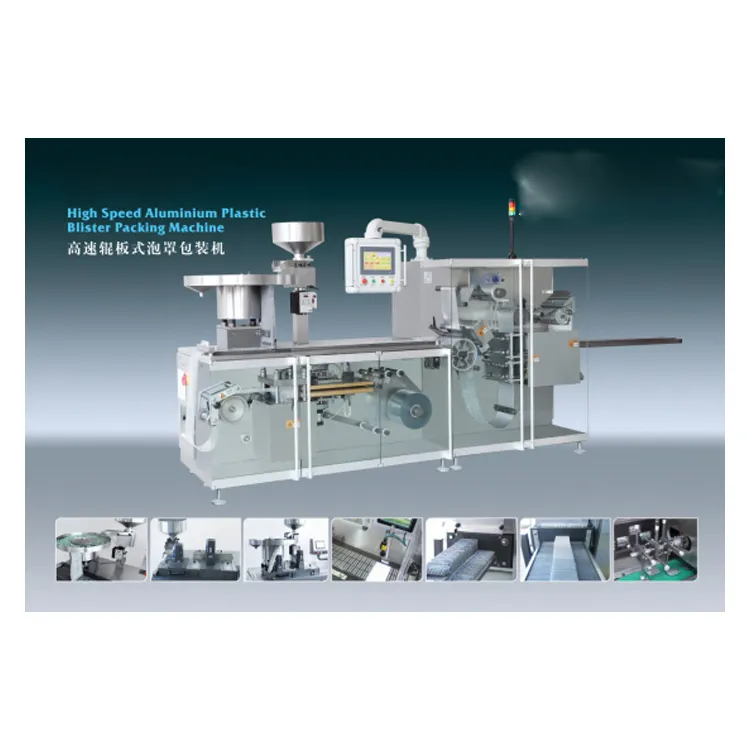

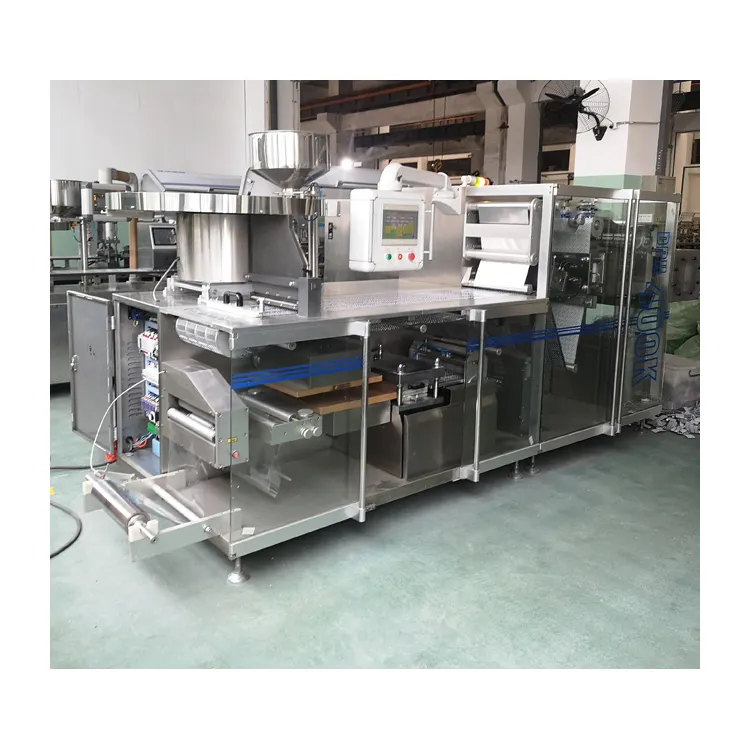

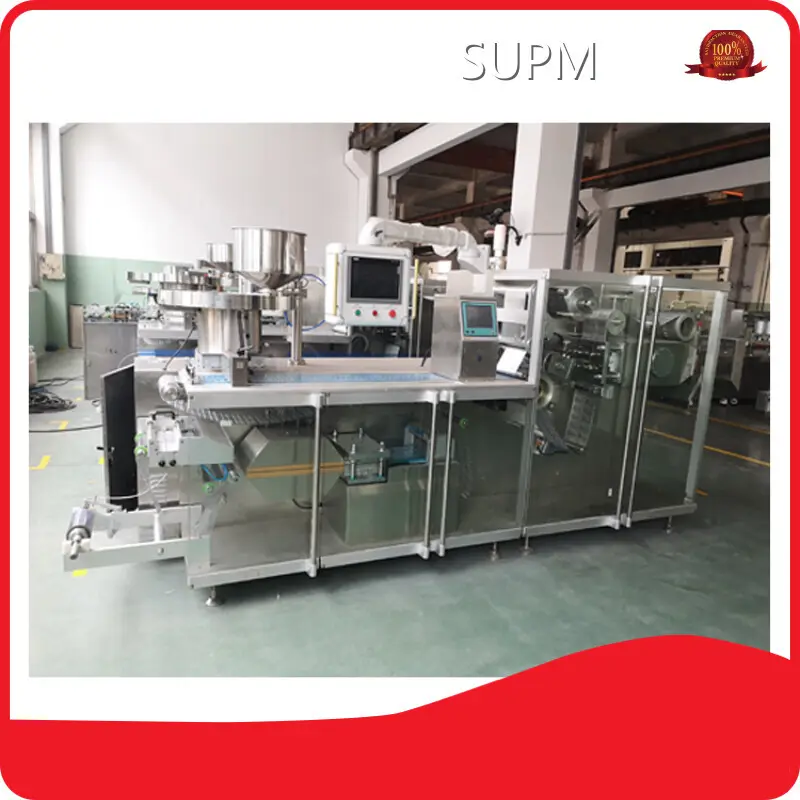

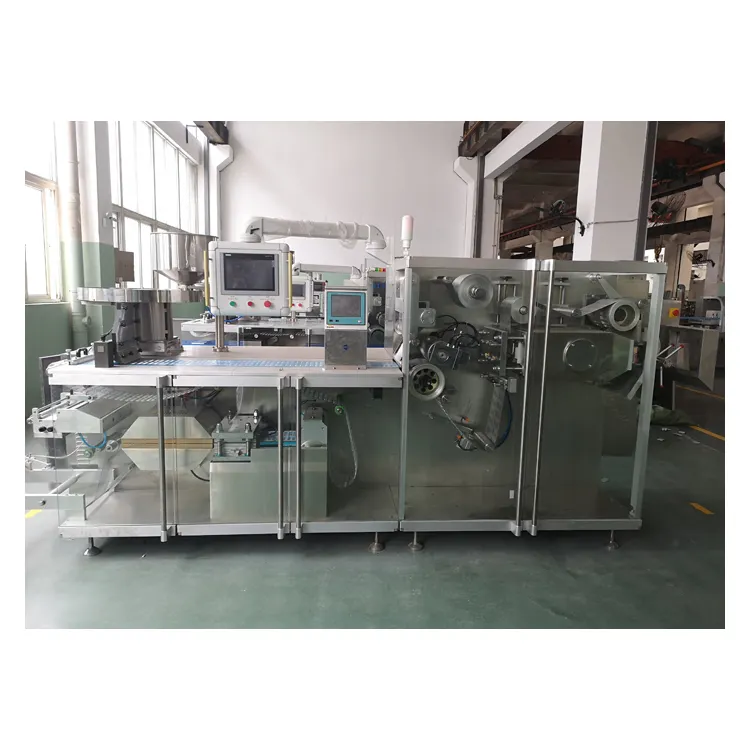

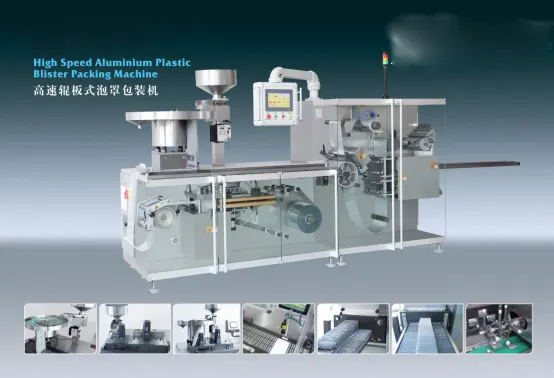

DPH-260 Series High Speed Roller Plate Blister Packaging Machine

Product DescriptionApplications: It is suitable for capsule,tablet,big honey pill,candy,liquid,paste,one injector as well as irregular shape AL-PVC,paper-plastic composite and ALU-ALU sealing packaging in pharmaecutical,healthcare,food, cosmetics industry etc.Technical specifications:

Item	Unit	the main technical parameters
Maximum punching speed	Times/min	150
Maximum forming depth	mm	12
Maximum forming area	mm	180×260（L×W）
PVC (thickness × width)	mm	（0.25-0.35）×260
Aluminum foil PTP (thickness × width)	mm	0.02×260
Outer diameter of PVC coil	mm	<φ300
PTP coil outer diameter	mm	<φ250
PVC PTP core aperture	mm	φ70～76
Dimensions (L×W×H)	mm	DPH-260：3130×1150×1900
Air pressure	Mpa	Air pressure 0.5-0.7Mpa Air consumption: 0.2m⊃3;/min
Cooling water	Mpa	Water pressure: 0.1-0.25Mpa Water consumption: 0.01-0.02m⊃3;/min Circulating cold water tank or tap water
weight	kg	2600
Installed power	kw	16.5kw 380V/ 50Hz (According to customer requirements)

Our customer

KE1PX$_SO]LLORZU3`DH8UW

Certifications

[$X~Z{0)[{$PW5F}H666N6M

$RX2]L7{%NOW0`YXF9~)M{_G$

Pharmaceutical Packaging Lines SUPM SUPM 10

Company Features

· Shanghai Universal Pharmaceutical Machinery Co.,Ltd. has been acting as a specialist for designing, manufacturing, marketing of pharmaceutical packaging lines and we have earned a sound reputation in the industry.

· Our products have been widely sold to Europe, America, the Middle East, and South-Eastern Asia. Most of our products, including pharmaceutical packaging lines, are produced based on market trends that exactly cater to customers' needs. Through years of service accumulation, we have established trade relations with merchants from different countries and regions. Many of those clients have become our friends. We are rated as a qualified enterprise by the government. We have been given the honored title of National Quality Trustworthy Product Enterprise Recommended Brand. This directly shows our credibility in the pharmaceutical packaging lines industry.

· We have defined our business philosophy - We aim to provide the best outcome for our customers, in terms of products and services.

Product Details

SUPM pays great attention to details of pharmaceutical packaging lines.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
