Production Line in Pharmaceutical Industry CGN280 Semi-automatic Capsule Filling Machine SUPM
Product details of the production line in pharmaceutical industry
Product Specification
Trademark: SUPM
Name: CGN280 semi-automatic capsule filling machine
Quick Detail
production line in pharmaceutical industry is available in a wide range of types, specifications, and functions. It is stable in performance, good in quality and favorable in price. This highly cost-effective product can meet the diverse needs of customers. SUPM production line in pharmaceutical industry, crafted using advanced production technology, is exceptional in every detail. The usability and service life of this product are ensured by our qualified QC team. Excellent in performance, high in quality and easy in operation, production line in pharmaceutical industry can be used in the production, processing, and packaging of various types of food. Hot sell in production line in pharmaceutical industry.
Product Description
SUPM's production line in pharmaceutical industry has superior quality. The specific details are presented in the following section.
Product Display

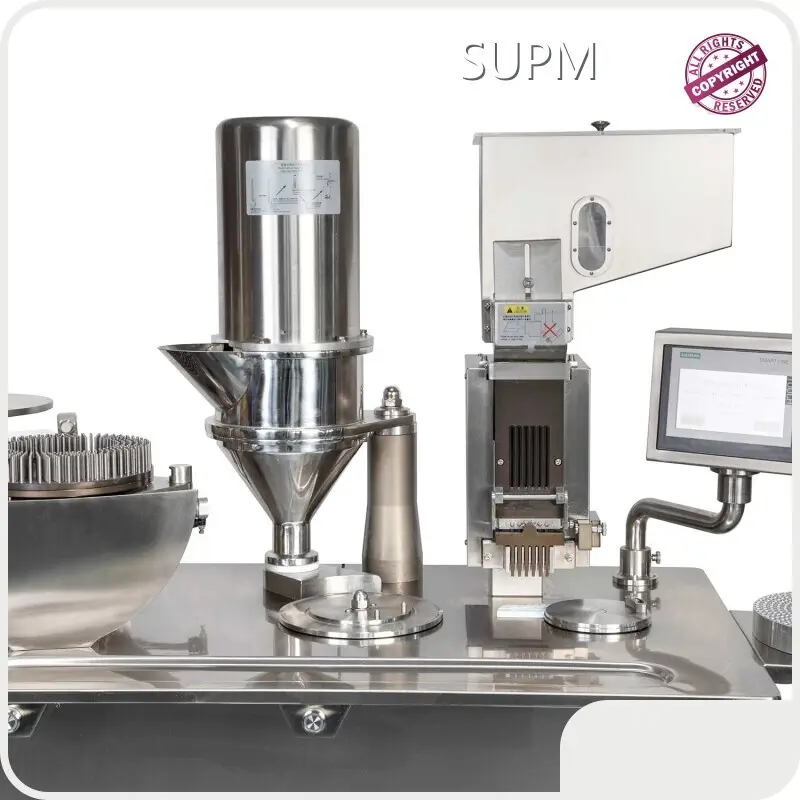

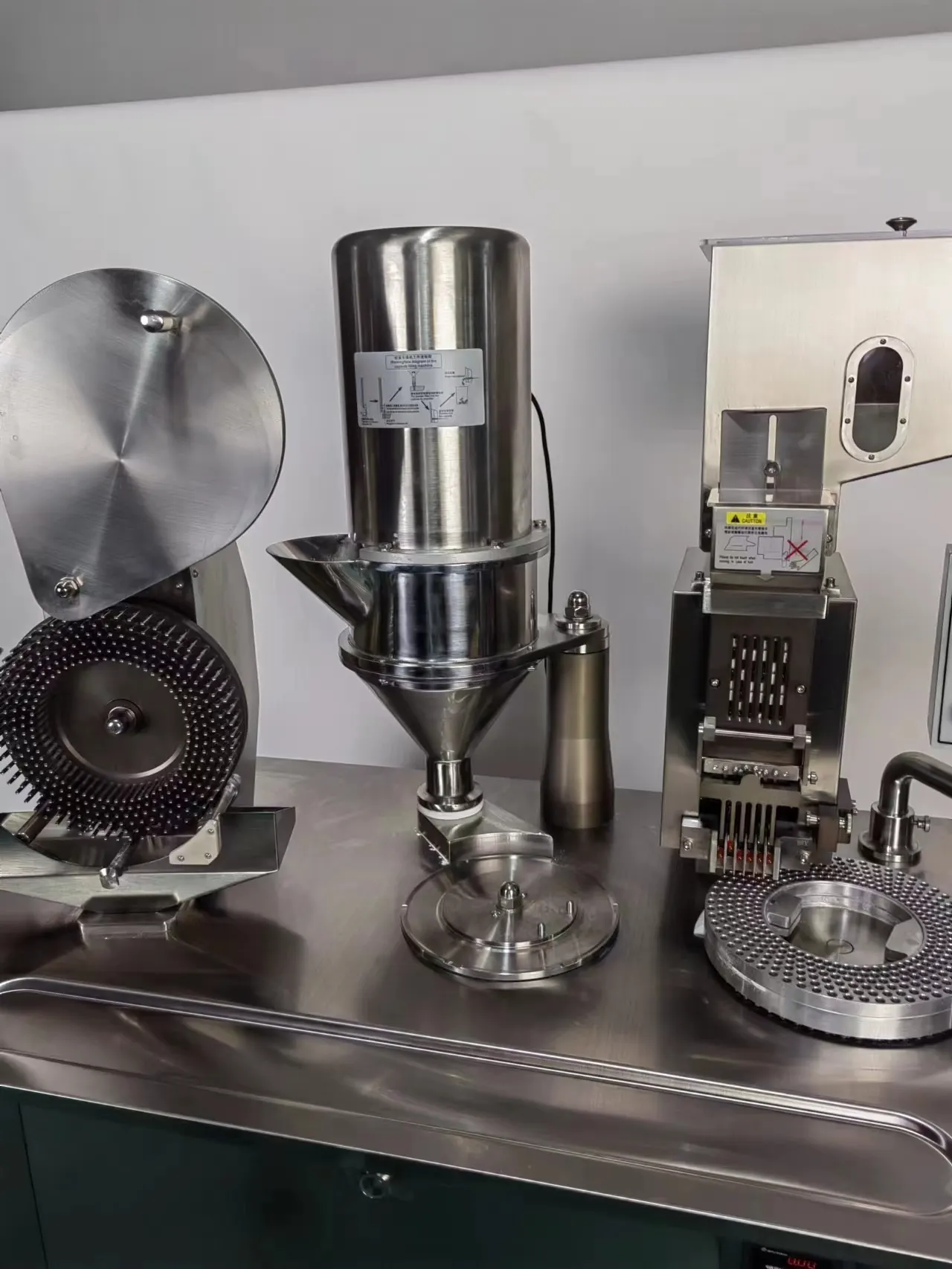

semi-Automatic Capsule FillerIntroduction
Modification Type Capsule Filling Machine is new medical packing machinery with novel structure and artistic molding. It adopts mini computer speed-adjusting equipment, and to be controlled by the electric and pneumatic, equips electron automatic counting device. It can respectively finish the different processes separately such as arrangement, separating, filling, locking and etc. which reduce labor intensity, improve production efficiency, raise the accuracy of filling dosage. The machine meet with GMP standard. This product is composed of sending capsule, arranging capsule and separation mechanism, medicines filling mechanism, tight locking mechanism, mini computer speed-adjusting mechanism, pneumatic and electric control system, protective equipment, vacuum pump, air pump accessories etc. It is suitable for both the domestic and imported capsules; certificated rate is more than 97%. Main Technical specifications
| Maximum capacity | 12,500capsules/h |
| Capsule size | 00#,0#,1#,2#,3#,4# hard capsule |
| Power (kw) | 2.2 |
| Power supply | 380V 50Hz |
| Overall dimensions (mm) | 1350x700x1600(LxWxH) |
| Weight (kg) | 400 |
Configuration Part list for semi-automatic Capsule filler
| 1 | Name | Model | Brand/manufacturer | Voltage | Qty | |
| 2 | Pneumatic elements | ModelAC-200 | Hualong group | 2 | ||
| 3 | Bearing | Many models | haerbin | Group | ||
| 4 | Reducer | WPWD-40 | Hangzhou yushen reducer factory | 2 | ||
| 5 | Motor | YS6324.7124 | Zhejiang linhai chunhua motor | 3 | ||
| 6 | Vacuum pump | XD-40 | Shanghai pujing | 1 | ||
| 7 | Stainless steel | 304 | China | Pieces | ||
| 8 | Inverter | N2 | T-VERTER from Taiwan | 2-220V | 2 | |
| 9 | Counter | SYJ-48A1 | Zhejiang ruian chaoke | AC-36V | 2 | |
| 10 | Heat relay | NR2-25 | CHNT | 1 | ||
| 11 | Button | LAS1-BY-11M | Zhejing hongbo | 8 | ||
| 12 | AC contactor | LC1-D09/10 | Schneider | AC-36V | 3 | |
| 13 | Transformer | BK-100 | Zhejiang transformer group,inlet 220,outlet 36V | 1 | ||
| 14 | Time relay | AH-3-3 | CKC-songling motor | AC-36V | 1 | |
| 15 | Miniature relay | HH564P | Zhejiang lierde | AC-36V | 2 | |
| 16 | Mini relay | DZ47-10/1P | CHNT | 1 | ||
| 17 | Mini breaker | DZ47-10/1P | CHNT | 1 | ||
| 18 | Proximity switch | GL-8F | OMRON | DCO-36V | 1 | |
| 19 | Emergency button | Y090-11M | Zhejiang niushi | 1 | ||
| 20 | Distance switch | AZ-7311 | Zhejiang niushi | 1 | ||
| 21 | Proximity switch | ANJK-5002C | Zhejiang taihua | 1 | ||
Company Introduction
Shanghai Universal Pharmaceutical Machinery Co.,Ltd. is located in shang hai. We are a company integrating production, service and trade, with the main product of Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca. After years of development, SUPM has rich industry experience in the machinery manufacturing. We successfully created the brand called SUPM. We will serve you with the best products and the best service! Our company has a number of production lines and advanced production equipment. Based on the highly automated production, we could provide our clients with efficient and high-quality custom services.
Welcome to visit SUPM! If you have any questions or suggestions on Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca, please contact us directly. We will serve you wholeheartedly!
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
