Production Line in Pharmaceutical Industry SUPM,China
Product details of the production line in pharmaceutical industry
Product Specification
Origin: China
Trademark: SUPM
Name: semi-automatic capsule filling machine
Product Description
SUPM production line in pharmaceutical industry is manufactured using exceptional grade raw materials and sophisticated technology. The performance of the product is optimized through the process improvement. 'Customer Satisfaction' is the evaluation standard of production line in pharmaceutical industry.

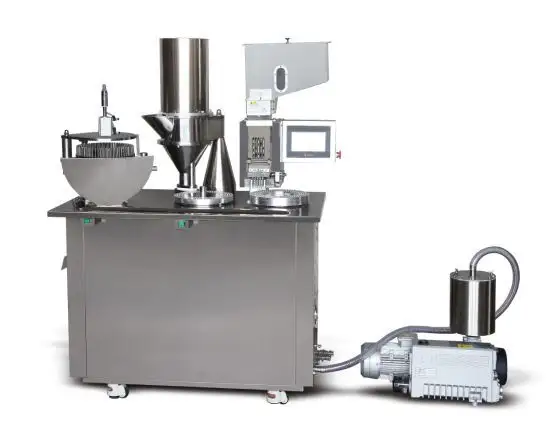

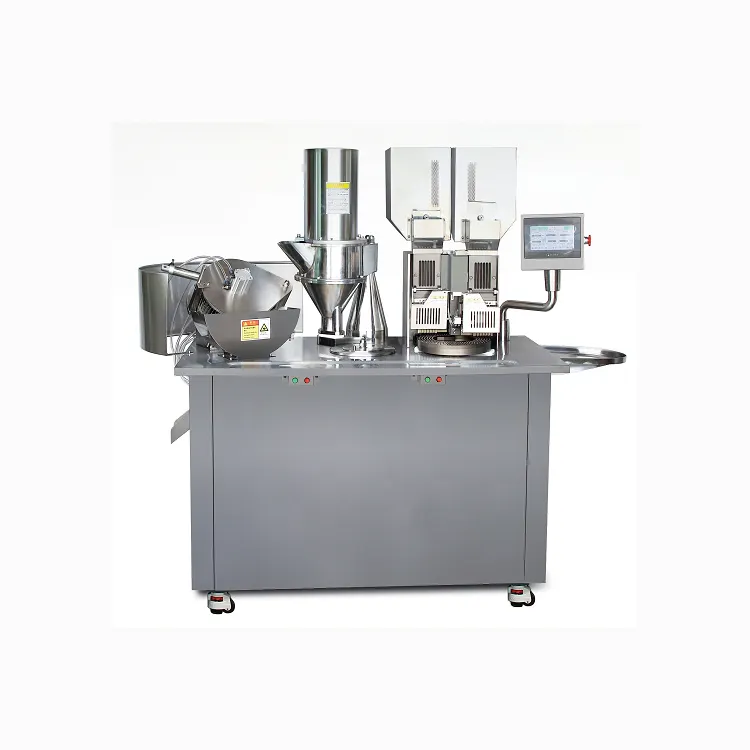

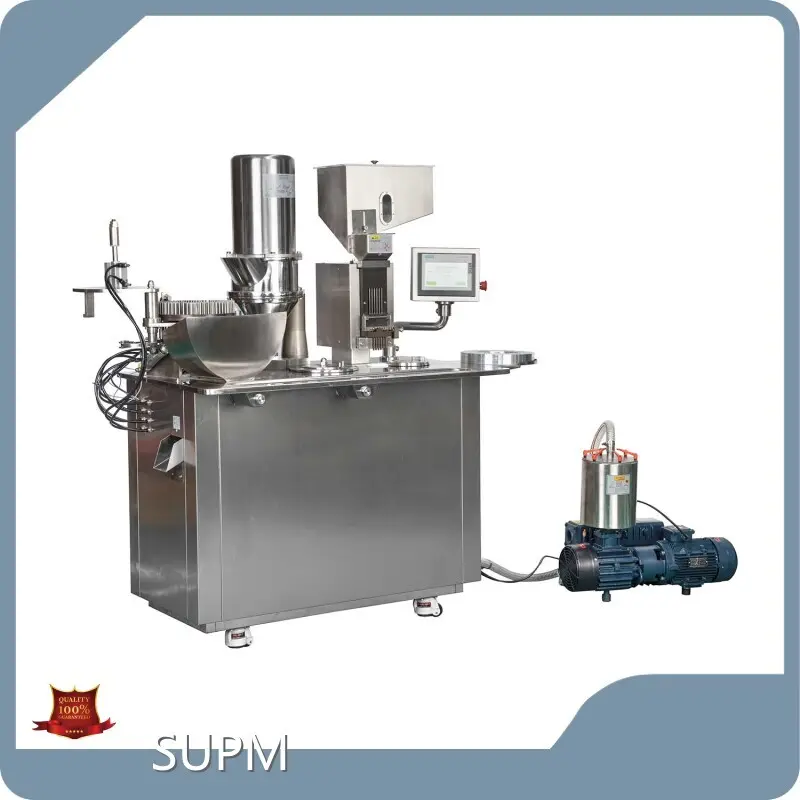

IntroductionCGN-208D new semi-automatic Capsule Filling Machine is new medical packing machinery with novel structure and artistic molding. It adopts mini computer speed-adjusting equipment, and to be controlled by the electric and pneumatic, equips electron automatic counting device. It can respectively finish the different processes separately such as arrangement, separating, filling, locking and etc. Which reduce labor intensity, improve production efficiency, raise the accuracy of filling dosage. The machine meet with GMP standard.This product is composed of sending capsule, arranging capsule and separation mechanism, medicines filling mechanism, tight locking mechanism, mini computer speed-adjusting mechanism, pneumatic and electric control system, protective equipment, vacuum pump, air pump accessories etc. It is suitable for both the domestic and imported capsules; Certificated rate is more than 97%.
| Maximum productive capacity | 15000pcs/h |
| Capsule size | 00#, 0#, 1#, 2#, 3#, 4# hard capsule |
| Power (kw) | 2.2 |
| Power supply | 380V 50Hz |
| Ovrerall dimensions (mm) | 1350x700x1600(LxWxH) |
| Weight (kg) | 400 |
![KE1PX$_SO]LLORZU3`DH8UW](http://img.yfisher.com/m5591/1716955263299568.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://img.yfisher.com/m5591/171695526519cd71.png)
Company Feature
• With high-quality products and rich management experience, our company has established a sales network of products throughout the Americas, Australia and Asia.
• SUPM is located in a place with traffic convenience, which is conducive for both small and large purchase.
• SUPM's mechanical equipment has reasonable and novel design, compact structure and stable performance. In addition to the easy operation, it is also convenient to be installed. With all the features, our product is well received by users.
• SUPM was founded in In the past years, we have been focusing on the design, production, and sales of machinery. We enjoy a good reputation in the industry.
• With an efficient and professional R&D and production team, SUPM could provide customers with one-stop custom services.
SUPM has our own factory and Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca are of high quality and favorable price. If you have any interest, please contact us for details.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
