Product details of the tablet blister packing machine
Product Specification
Trademark: SUPM
Name: hight speed blister packing machine
Product Information
The design of SUPM tablet blister packing machine is attractive and captivating. It is rigorously tested on various parameters of quality to ensure high durability. If you are not sure about quality, we can send free samples of tablet blister packing machine.

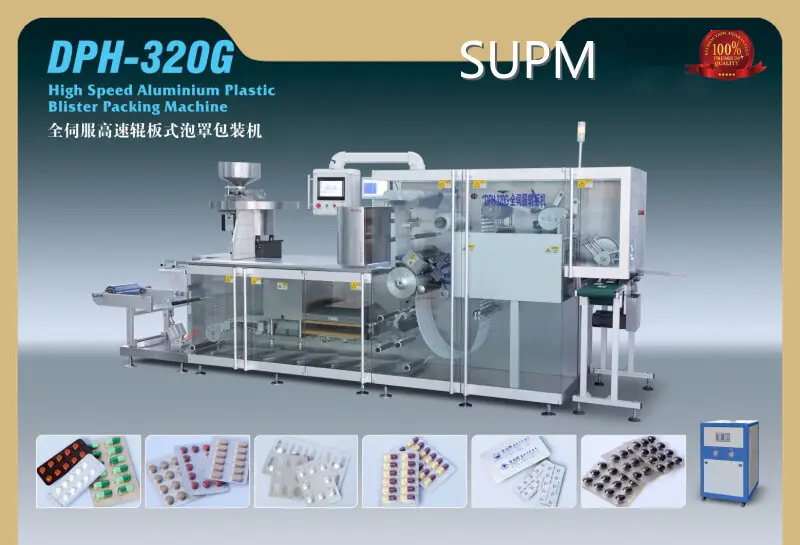

Full Servo High Speed Roller Plate Blister Packaging Machine
Main technical parameters
DPH-320G series high-speed roller plate blister packaging machine
model | unit | The main technical parameters |
Maximum punching speed | times/min | 240 |
Maximum punching speed | mm | 12 |
Maximum forming area | mm | 240×320（L×W） |
PVC (thickness x width) | mm | （0.25-0.35）×320 |
Aluminum foil PTP (thickness x width) | mm | 0.02×320 |
PVC coil outer diameter | mm | <φ700 |
PTP coil outer diameter | mm | <φ250 |
PVC & PTP Core Aperture | mm | φ70～76 |
Dimensions (L×W×H) | mm | 4460×1350×1950 (split 2600+1860) Wooden box 2.77×1.27×1.93 meters; 2.02×1.42×2.23 meters |
barometric pressure | Mpa | Air pressure 0.5-0.7Mpa Air consumption: 0.4m³/min |
Cooling water | Mpa | Water pressure: 0.1-0.25Mpa Water consumption: 0.01-0.02m³/min Circulating cold water tank or tap water |
weight | kg | 3500 |
Installed power | kw | 20kw 380V/ 50Hz (It can be determined according to customer requirements) |
Product Display
Company Feature
• Our company has advanced production equipment and technology and we established a sound quality management system. Therefore, we can provide customers with professional custom services.
• Having developed rapidly for years, SUPM is a machinery manufacturer with a relatively large scale and great business capability.
• We bring together a large number of professionals engaged in related projects, and at the same time establish good cooperative relations with many outstanding enterprises in the industry. It provides team technical guarantee for us to produce quality products.
• The condition of our company's geographic position is superior with multi traffic lines. We provide convenience for the outward transportation of various products and guarantee the stable supply of goods.
• SUPM runs a comprehensive production safety and risk management system. This enables us to standardize the production in multiple aspects such as management concepts, management contents, and management methods. All these contribute to the rapid development of our company.
SUPM has more discounts for large-quantity orders. Feel free to consult us!
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
