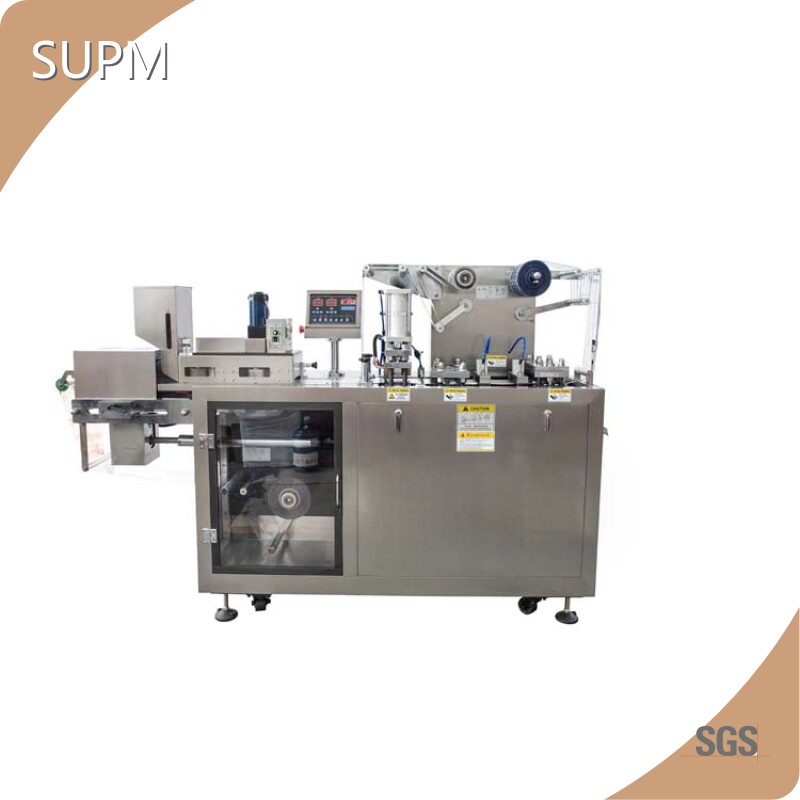

Overview:This machine is the latest and high automation product designed for middle and small sized pharmacy factory, healthcare factory and preparation-room of hospital, especially for those who need small batches product but many kinds. The machine is adopted with PLC, frequency converter and touch screen operation. It can automatically finish the processed of feeding, forming, heat-sealing, pressing, batch number printing, punching and so on. It is the ideal packing equipment with convenience operation, full purpose function. The product passed the provincial science and technology appraisal.Usage:It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-plastic or paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.Feature:Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.Flat plate structure can pack special shape products, such as: Elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.Notes:· Eye marking sealing device with sensor trace can be added for option.· Plexiglas Cover can be added for option.Capacity:Cutting frequency: 6-50 times/minMax. Forming area and depth: 130*130*26mmTravel range: 40-140Take standard plate 80*57mm as an example:57mm*2=114mm ≤ 130mm80mm (between 40mm and 140mm) ≤ 130mmIt will be 2 plates per cut. For capsule, it is around 40 times/min.It means there will be 4800 plates/h.
| Cutting Frequency (Times/min) | 6-50 |
| Production Capacity (pcs/h) | 20000-110000 |
| Max. Forming Area And Depth (mm) | 130×130×26 (Standard Depth 14mm) |
| Travel Range (mm) | 40-140 ( Can be lengthened to 160mm according to user's requirements ) |
| Standard Plate (mm) | 80×57 ( Can be manufactured as user's requirements ) |
| Air Pressure (Mpa) | 0.4-0.6 |
| Air Supply | ≥0.2m 3 /min |
| Total Power | 380V/220V 50Hz 3.6KW |
| Main Motor Power (KW) | 0.75 |
| PVC Hard Pieces (mm) | 0.15-0.5×140 |
| PTP Aluminum Foil (mm) | 0.02-0.035×140 |
| Dialysis Paper (mm) | 50-100g×140 |
| Mould Cooling | Tap Water Or Circulating Water |
| Overall Dimensions (mm) | 2300×560×1410(L×W×H) |
| Weight (kg) | 750 |
Company Advantages
· SUPM vial packaging line is in compliance with international production standards.
· The performance of the product conforms to the very latest quality standards.
· Shanghai Universal Pharmaceutical Machinery Co.,Ltd. has become more prominent and has gradually gained more market share in vial packaging line field.
Company Features
· For many years Shanghai Universal Pharmaceutical Machinery Co.,Ltd. has been committed to the development and production of vial packaging line for a long time.
· Shanghai Universal Pharmaceutical Machinery Co.,Ltd. has years of experience in vial packaging line services.
· SUPM uses our industry knowledge, expertise and innovative thinking to drive customers' business growth and bring you greater benefits. Call!
Application of the Product
The vial packaging line developed and produced by our company is widely applied to many industries and fields, and it can fully meet the diversified needs of customers.
We have a professional team and can provide customers with the most appropriate solutions to help customers achieve their goals quickly and effectively.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
