| Maximum capacity | 12,500capsules/h |
| Capsule size | 00#,0#,1#,2#,3#,4# hard capsule |
| Power (kw) | 2.2 |
| Power supply | 380V 50Hz |
| Overall dimensions (mm) | 1350x700x1600(LxWxH) |
| Weight (kg) | 400 |
Configuration Part list forsemi-automatic Capsule filler
| 1 | Name | Model | Brand/manufacturer | Voltage | Qty | |
| 2 | Pneumatic elements | ModelAC-200 | Hualong group | 2 | ||
| 3 | Bearing | Many models | haerbin | Group | ||
| 4 | Reducer | WPWD-40 | Hangzhou yushen reducer factory | 2 | ||
| 5 | Motor | YS6324.7124 | Zhejiang linhai chunhua motor | 3 | ||
| 6 | Vacuum pump | XD-40 | Shanghai pujing | 1 | ||
| 7 | Stainless steel | 304 | China | Pieces | ||
| 8 | Inverter | N2 | T-VERTER from Taiwan | 2-220V | 2 | |
| 9 | Counter | SYJ-48A1 | Zhejiang ruian chaoke | AC-36V | 2 | |
| 10 | Heat relay | NR2-25 | CHNT | 1 | ||
| 11 | Button | LAS1-BY-11M | Zhejing hongbo | 8 | ||
| 12 | AC contactor | LC1-D09/10 | Schneider | AC-36V | 3 | |
| 13 | Transformer | BK-100 | Zhejiang transformer group,inlet 220,outlet 36V | 1 | ||
| 14 | Time relay | AH-3-3 | CKC-songling motor | AC-36V | 1 | |
| 15 | Miniature relay | HH564P | Zhejiang lierde | AC-36V | 2 | |
| 16 | Mini relay | DZ47-10/1P | CHNT | 1 | ||
| 17 | Mini breaker | DZ47-10/1P | CHNT | 1 | ||
| 18 | Proximity switch | GL-8F | OMRON | DCO-36V | 1 | |
| 19 | Emergency button | Y090-11M | Zhejiang niushi | 1 | ||
| 20 | Distance switch | AZ-7311 | Zhejiang niushi | 1 | ||
| 21 | Proximity switch | ANJK-5002C | Zhejiang taihua | 1 | ||

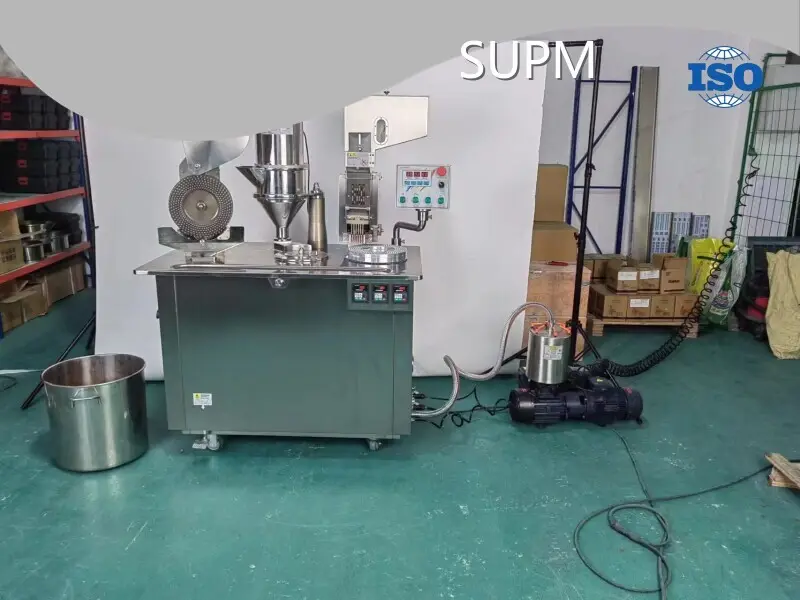

Introduction
Capsule Filling Machine is new medical packing machinery with novel structure and artistic molding. It adopts mini computer speed-adjusting equipment, and to be controlled by the electric and pneumatic, equips electron automatic counting device. It can respectively finish the different processes separately such as arrangement, separating, filling, locking and etc. which reduce labor intensity, improve production efficiency, raise the accuracy of filling dosage. The machine meet with GMP standard.
This product is composed of sending capsule, arranging capsule and separation mechanism, medicines filling mechanism, tight locking mechanism, mini computer speed-adjusting mechanism, pneumatic and electric control system, protective equipment, vacuum pump, air pump accessories etc. It is suitable for both the domestic and imported capsules; certificated rate is more than 97%.
