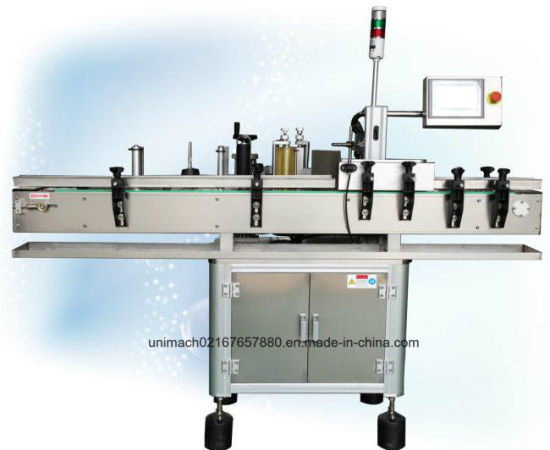

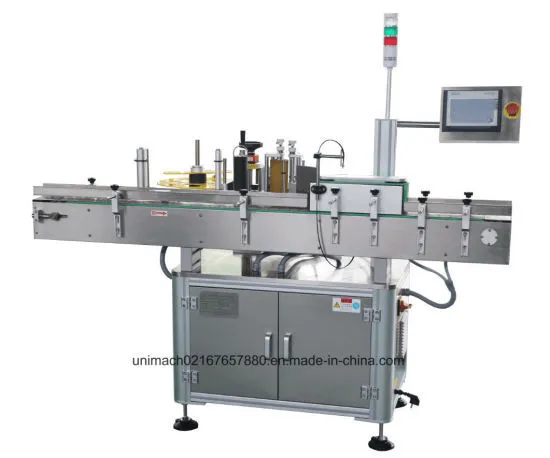

Automatic Round Bottle Labeling Machine
Specifications
1. PLC control system
2. Servo motor
3. Label different sides of objects as client need
4. Cert: ISO, CE
1. The scope of application
Labeling different sides on object as client need with one label.
2. Device Characteristic
Adopt mature technology PLC control system, operation is stable and high-speed
Using touch-screen control operating system, simple, practical, efficient;
Screw adjustment suppressing mechanism, suppress bottle move accurately;
Synchronization chain mechanism to ensure smooth and precise calibration;
The speed of Conveyor belt, righting belt, order bottle beltcan controlled variably.
No object no label, automatic alarming without label.
The width and height of the machine can adjust to suit different bottle sizes.
| Operating direction | Left or Right | |||
| Conveyor Speed(m/min) | ≤40 | |||
| Labeling Accuracy | ±1.0 mm | |||
| The inner diameter of label roll | 76 mm | |||
| The outer diameter of label roll | 350 mm(max) | |||
| The suitable size of label | Width 15-300 mm length 15-300 mm | |||
| The suitable size of labeling objects | Can customized depends on client product | |||
| Printer use air | 5kg/cm ² | |||
| Voltage (In China) | AC220V 50/60HZ Single phase (Can customized as client need) | |||
| Power(w) | 600W | |||
| Weight(kg) | 200 | |||
| Machine size | 1800(L) 800 (W) 1300 (H) mm |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
