Pharmaceutical Sachet Packaging Machine SUPM Manufacture 12hour Response

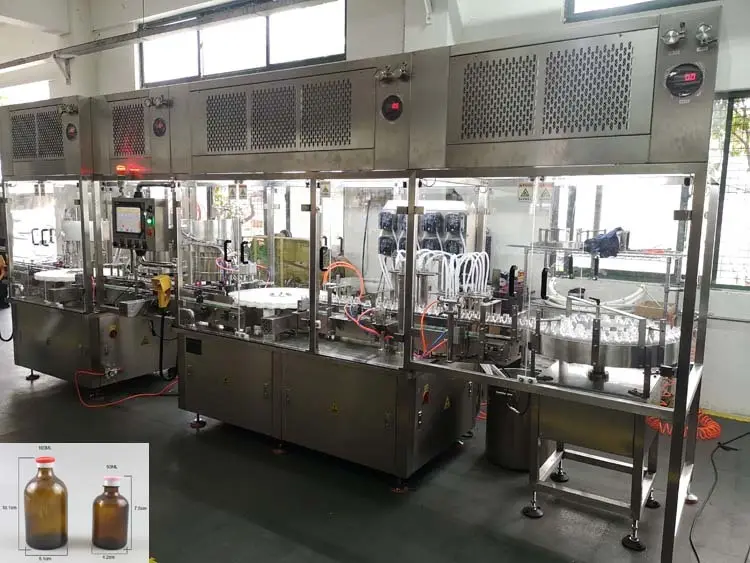

Main components:

8 sets of high-precision peristaltic pump filling; 1 set of plug sorting machine; 2 sets of plug feeding mechanism; 2 sets of plugging mechanism, 1 set of bottle feeding and conveying mechanism.

Main technical features:

⑴ Adopting high-precision cam indexing gap mechanism, equal-division tray bottle feeding mechanism, high positioning accuracy, simple and reliable structure.

⑵Photoelectric detection function: The machine can be plugged when there is a bottle, and if there is no bottle, it will not be plugged;

⑶Automatic shutdown protection function for no bottles and inverted bottles: When there is a shortage of bottles or inverted bottles during work, the host will be stopped and not plugged when detected by the electric eye, which plays a protective role.

The main technical parameters:

4.1 Applicable specifications: 50-500ml (processed according to the packaging materials provided by the customer)

4.2 Production capacity: 3000~5000 bottles/hour (the host is subject to 100ml)

4.3 Power supply: 380V 50Hz

4.4 Total power: ≈4.5 kW

4.5 Compressed air: 0.3MPa～0.4MPa

4.7 Measuring accuracy: ±1-2%

4.8 Filling method: Peristaltic pump filling

4.9 Plugging method: Electromagnetic oscillation plugging

4.10 Number of plugs: 2

4.11 Bottle in and out method: conveyor belt

4.12 Plugging rate: ≥98%

4.13 Total weight of the machine: about 950 kg

4.14 Dimensions: 2500×900×1850mm

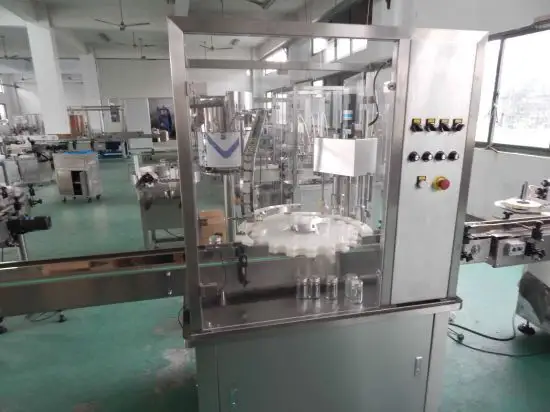

Main components:

1 set of cap sorting machine; 2 sets of cap feeding mechanism; 2 sets of capping mechanism, 1 set of bottle feeding and conveying mechanism.

Main technical features:

⑴ Adopting high-precision cam indexing gap mechanism, equal-division tray bottle feeding mechanism, high positioning accuracy, simple and reliable structure.

⑵Photoelectric detection function: This machine can realize the hook cap when there is a bottle, and the cap does not hook when there is no bottle;

⑶Automatic shutdown protection function for no bottles and inverted bottles: the host will be stopped when the electric eye detects the lack of bottles or inverted bottles during work, which plays a protective role.

The main technical parameters:

4.1 Applicable specifications: 50-500ml (processed according to the packaging materials provided by the customer)

4.2 Production capacity: 3000~5000 bottles/hour (the host is subject to 100ml)

4.3 Power supply: 380V 50Hz

4.4 Total power: ≈1.8 kW

4.9 Upper cover method: Electromagnetic oscillation upper cover

4.10 Number of lock cap heads: 2 heads

4.11 Bottle in and out method: conveyor belt

4.12 Covering rate: ≥98%

4.13 Covering rate: ≥98%

4.14 Total weight of the machine: about 600 kg

4.15 Dimensions: 2500×900 (total width 1480)×1850mm
