SUPM Brand Bottle Filling and Capping Machine Supplier
Product details of the bottle filling and capping machine
Product Specification
Origin: China
Trademark: SUPM
Name: Oral liquid plastic ampoule filling and sealing machine
Quick Detail
This well-made and high-quality bottle filling and capping machine has reasonable design and compact structure. It is excellent in production efficiency and heat dissipation. It can satisfy production and processing requirements for various types of food. The shape of SUPM bottle filling and capping machine is more compact and is convenient to use. Our strict quality control procedures ensure that our products are of good quality. This well-made and attractive bottle filling and capping machine is excellent in heat preservation, thermal insulation, corrosion resistance, and wear resistance. High in working efficiency and good in working performance, it can be used for fermentation of all kinds of bread. Products from Shanghai Universal Pharmaceutical Machinery Co.,Ltd. are sold well to overseas market.
Product Information
More detailed information about bottle filling and capping machine is provided for you as follows.

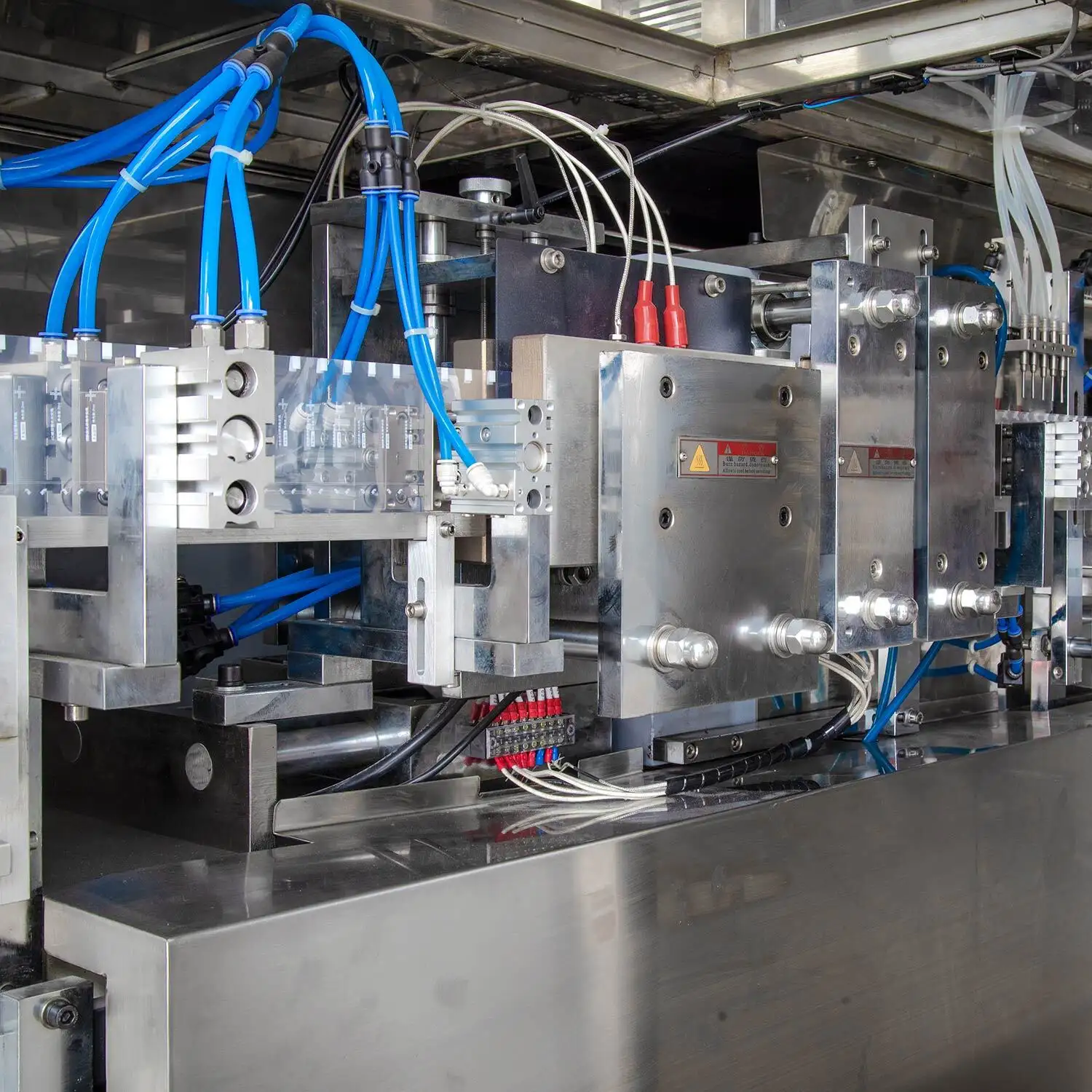

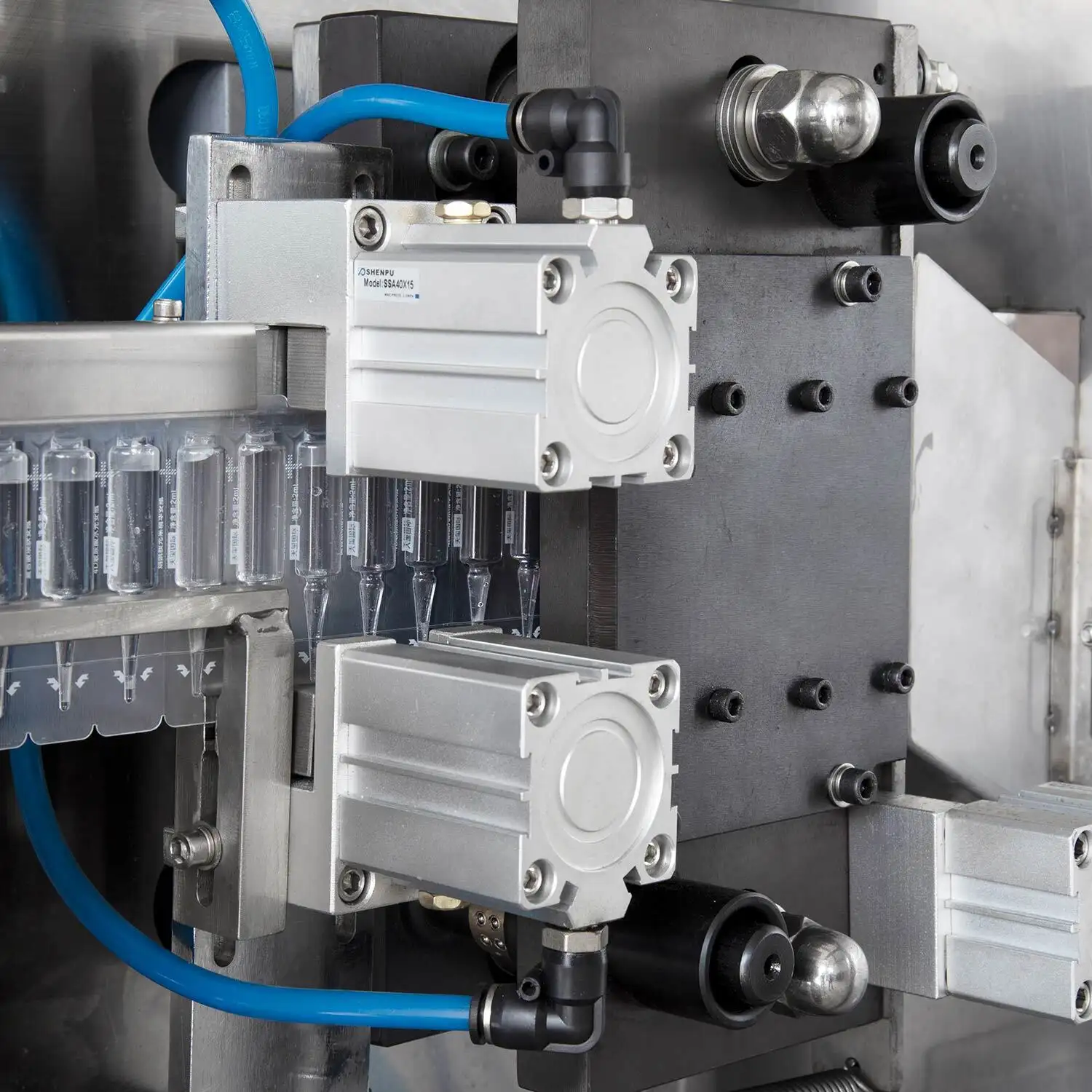

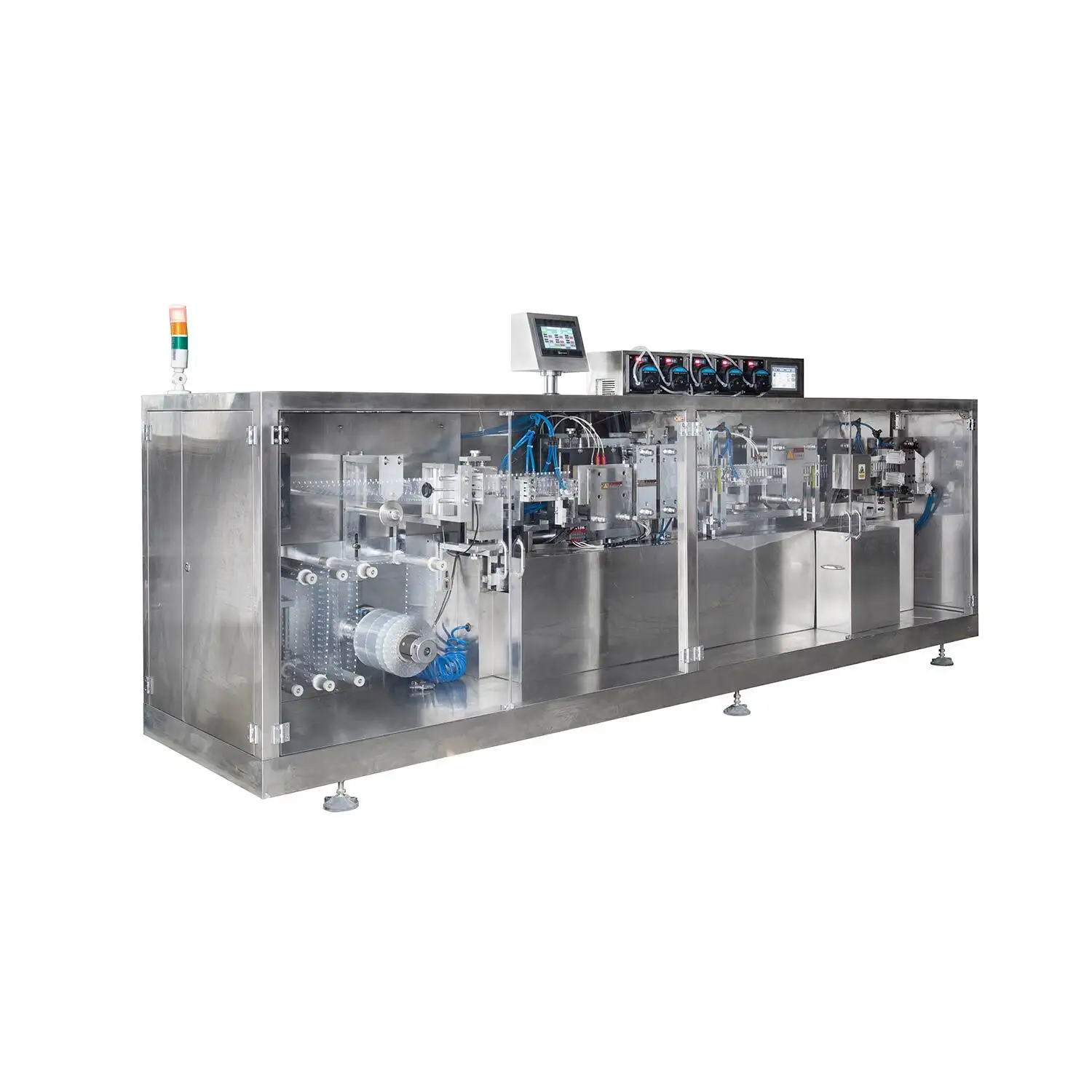

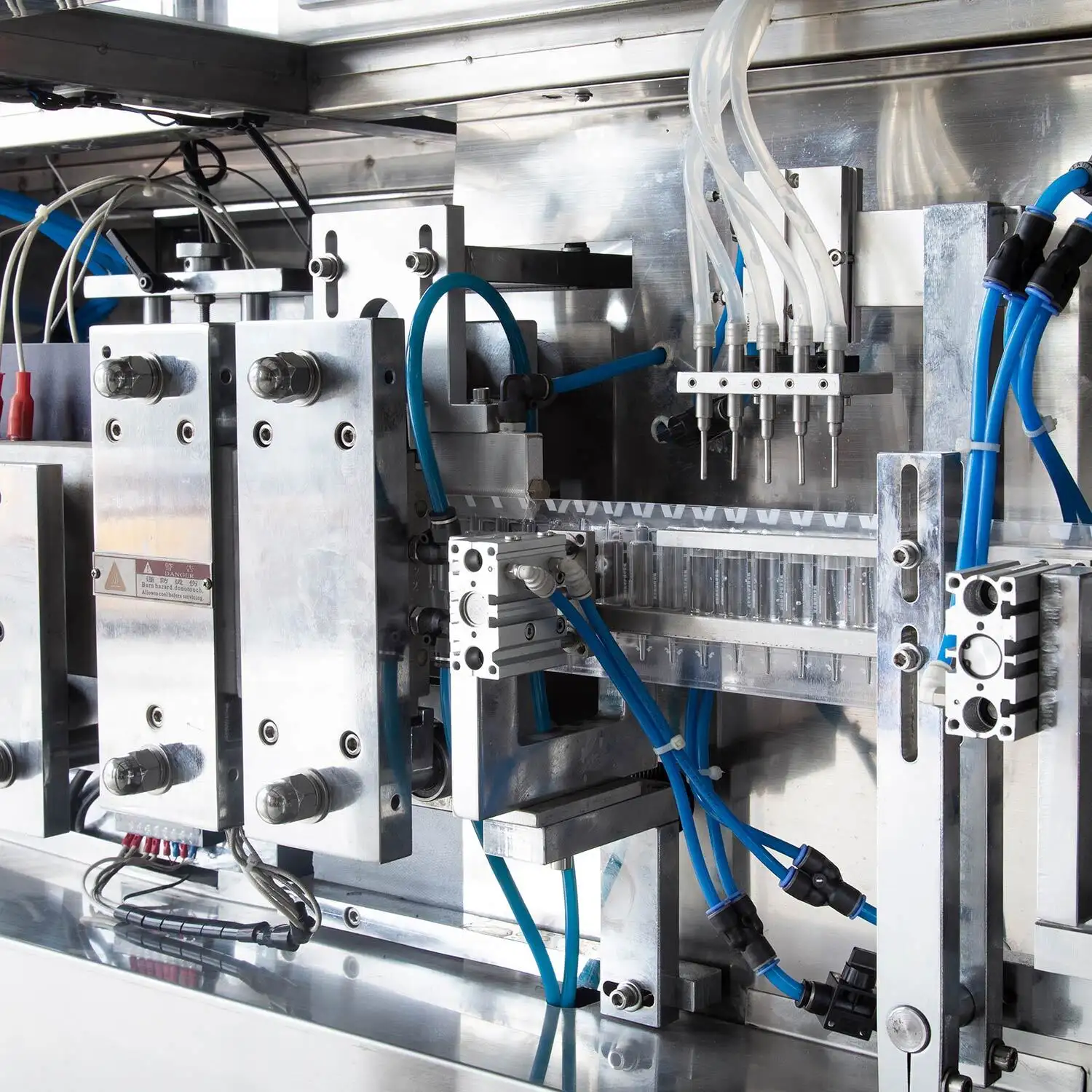

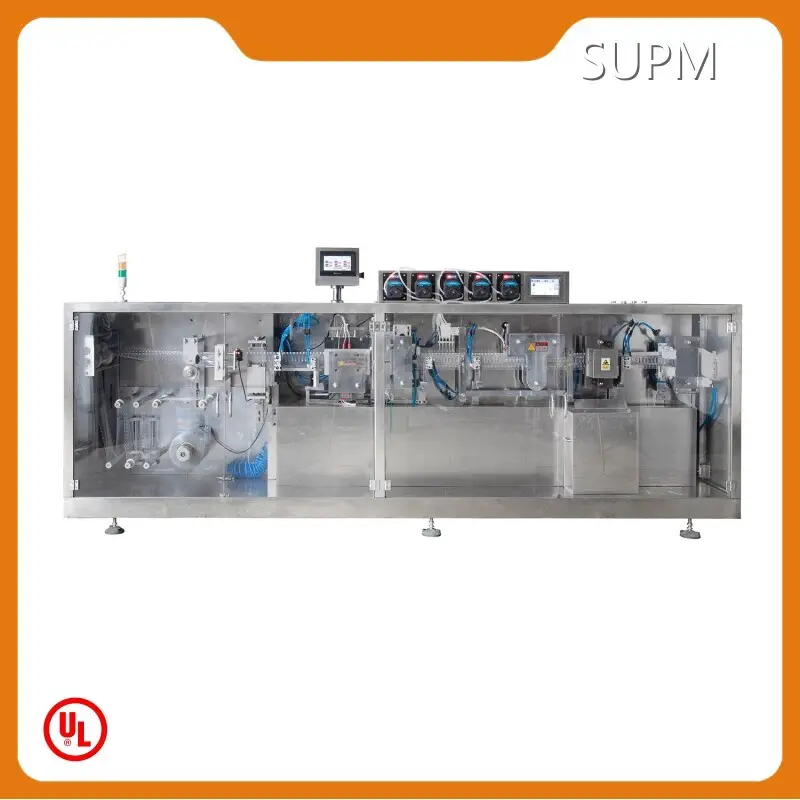

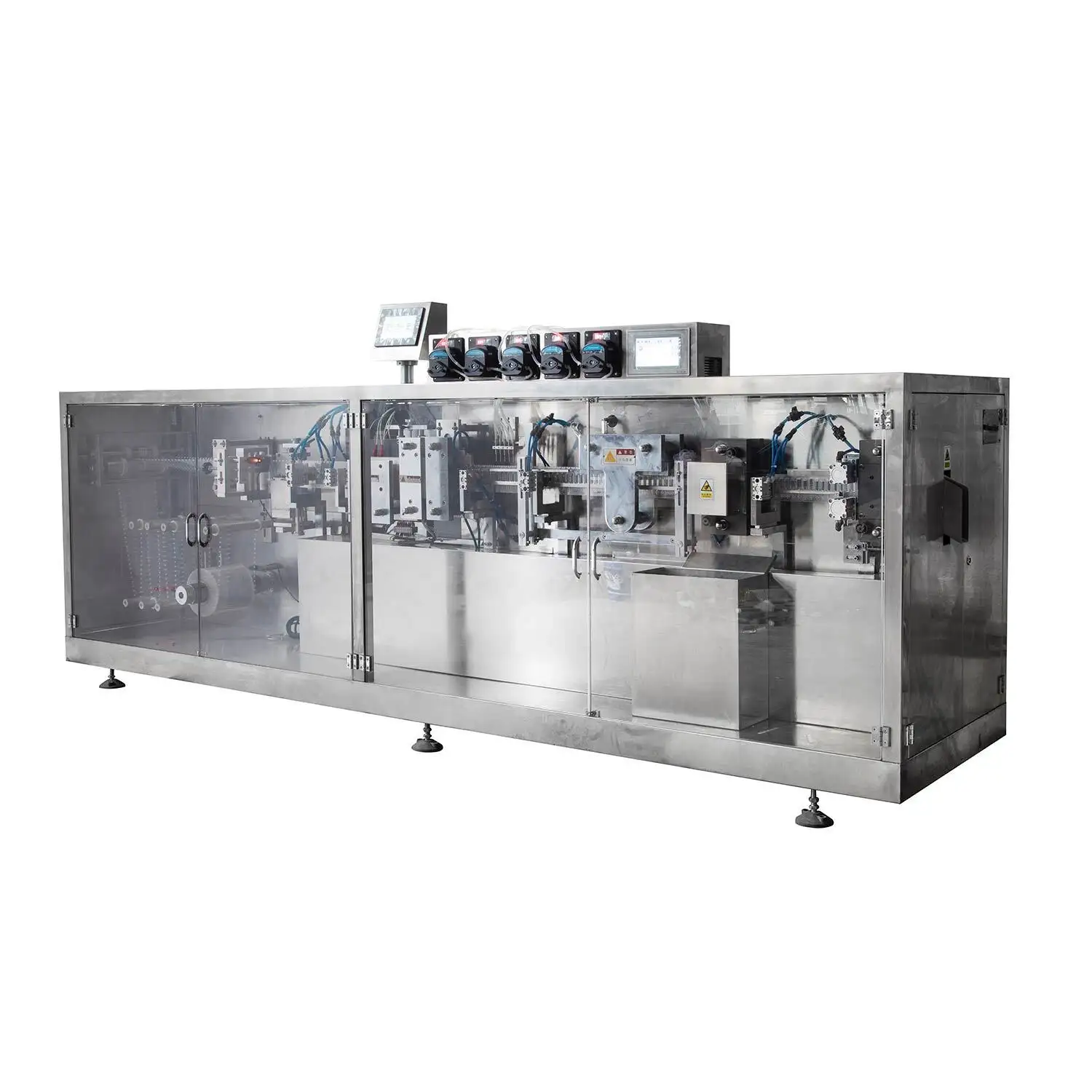

GGS-240(P5) Oral automatic liquid filling sealing machine
Performance and feature
High capacity, high speed, high precision, and advanced motion controller. Stepless frequency conversion speed regulation control. Servo motor controls film traction device.
Human-machine interface, easy to operate.
Automatic unwinding, roll film cutting. It has positive and negative pattern alignment function with photoelectric device. The product is exquisite and beautiful, which meets high standard of packing requirements.
It adopts electronic peristaltic pump device and mechanical piston pump control, which has convenient adjustment.
High filling accuracy with suction back function without any dripping.
The parts contacting with the medicine adopt high quality stainless steel 316L, and the outer cover of the machine is made of SUS304 stainless steel, which meets with GMP standard.
As the bottom of the bottle is flat, so it can stand.
Main technical parameter
Max. forming depth | 12mm |
Punch frequency | 0-25 times |
Packing material | PVC/PE，PET/PE（0.2-0.4）×240mm |
Filling volume | 1-50ml |
Toal power supply power | 7KW |
Voltage | 380V/50Hz |
Machine weight | 1200Kg |
Overall dimension (L*W*H) | 3200×850×1400(mm) |
![KE1PX$_SO]LLORZU3`DH8UW](http://img.yfisher.com/m5591/1716955263299568.png)
Company Advantages
Specializing in the manufacture of bottle filling and capping machine for many years, Shanghai Universal Pharmaceutical Machinery Co.,Ltd. is a mature company with abundant expertise and experience. After many years of solid development in the bottle filling and capping machine industry, our company has grown into a sizable factory. There have been established complete production lines in the factory, including parts distribution lines, dust-free treatment lines, and final assembly lines. This proofs that the factory has achieved standardization production. We believe that everything we make and do is exceptional! Inquire online!
Welcome to visit SUPM's website! If you have any interest in Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca, and want to know more information such as specifications and types, please contact us quickly. We are dedicated to providing you with quality service!
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
