Product details of the pharmaceutical packaging machines
Product Specification
Trademark: SUPM
Name: Drug inspection machine
Product Information
SUPM pharmaceutical packaging machines is designed to suit international tastes. This product must go through our quality inspector's internal quality assurance procedure to ensure non-defective quality. Shanghai Universal Pharmaceutical Machinery Co.,Ltd. owns great comprehensive developing strength.
HB-220 MODEL Drug inspecting machine for capsule or tablets
Technical Parameters
Application: | Inspection of capsules,taplets, plain or coated tablets and other round or cylindrical objects by one operator. |
Inspection capacity: | up to 120,000 capsules/h or 50 kg tablets/h, depending on product |
Min. Tablet thickness: | 3mm |
Hopper volume: | 30L,or 60L |
Working height: | 830 mm |
Power supply: | 220V/50Hz/Single phase; or 110V/60Hz/single phase |
Power consumption: | 0.5 kw |
Compressed air pressure: | 6 bar |
Compressed air connection: | ø8 mm |
Overall dimensions: | 1400 x 650 x 1250 mm |
Machine weight: | 125 kg |
Material | The drug contact part is made of stainless steel 316L,other is stainless steel 304 |
Product Introduction
Description
HB-220 model drug inspecting machine is a new product researched by our company on the basis of integration of domestic and foreign advanced technologies in order to meet the needs of pharmaceutical sector. It can test outlook quality for hard capsules, soft capsules caplets and tablets.
Work Principle
The products enter into the vibrating feeder through the bunker, and then enter into the rotating roller in single, On the feeding tray is a screen mesh that can get rid of the pellets and chips in the product. Under the feeding tray is a power collecting box that can recycle the small chips. The medicines equally drop on the rotating roller from deeding tray, and the they will continually overturn in front of the operator. And thus the operator can easily select the unqualified product out from them. The foot switch can stop the delivery belt at any time. The medicines still keep overturning while the delivery belt is stopped, which won’t affect the testing process,there is an adjustable mirror that can help the operator select the unqualified product at the other end. As the vacuum system is applied, it needs not to connect a vacuum pump outside .There is no blind angle and fade zone in its design.As a result, it can assure the products can be tested in all directions.

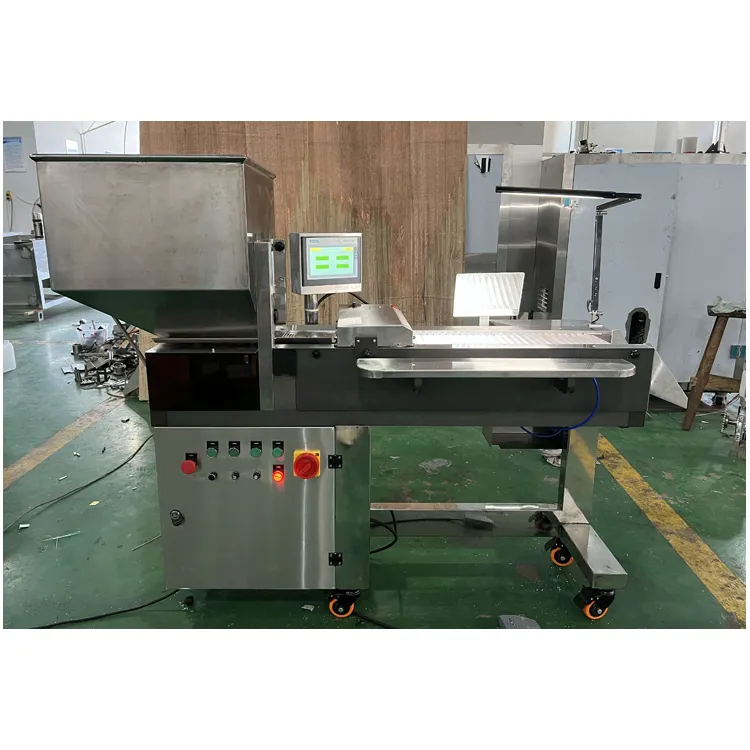

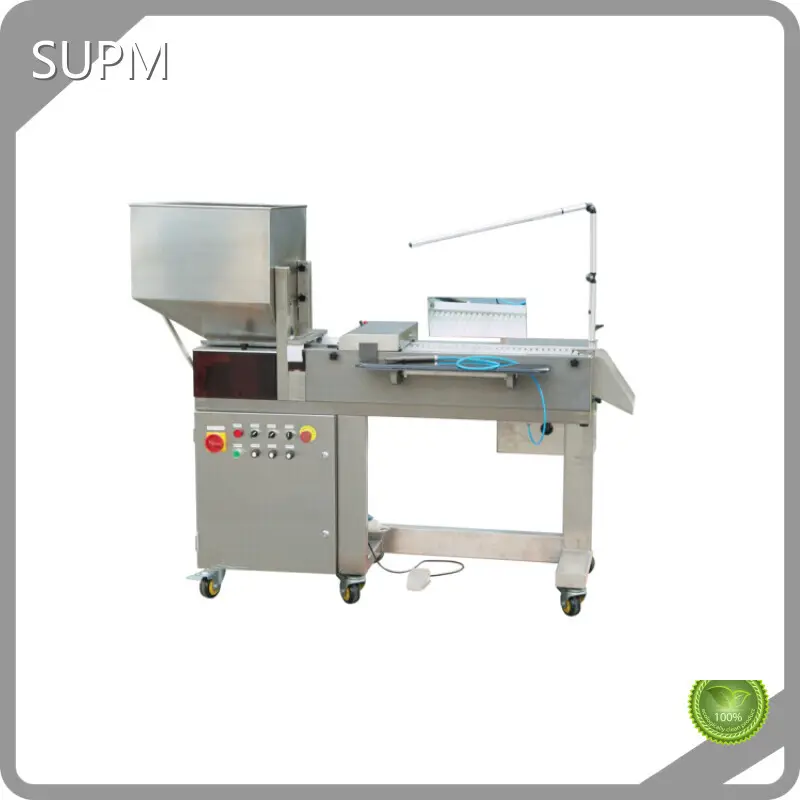

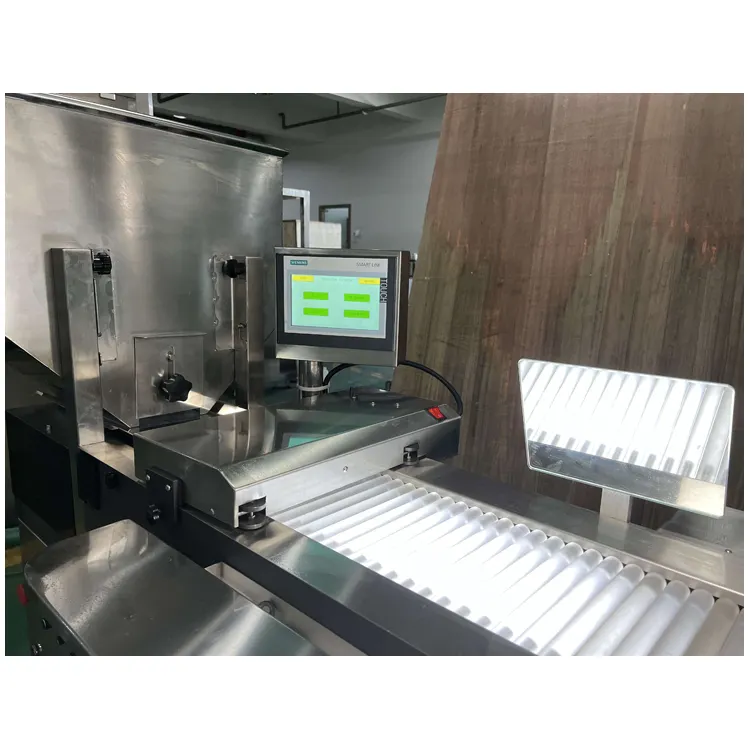

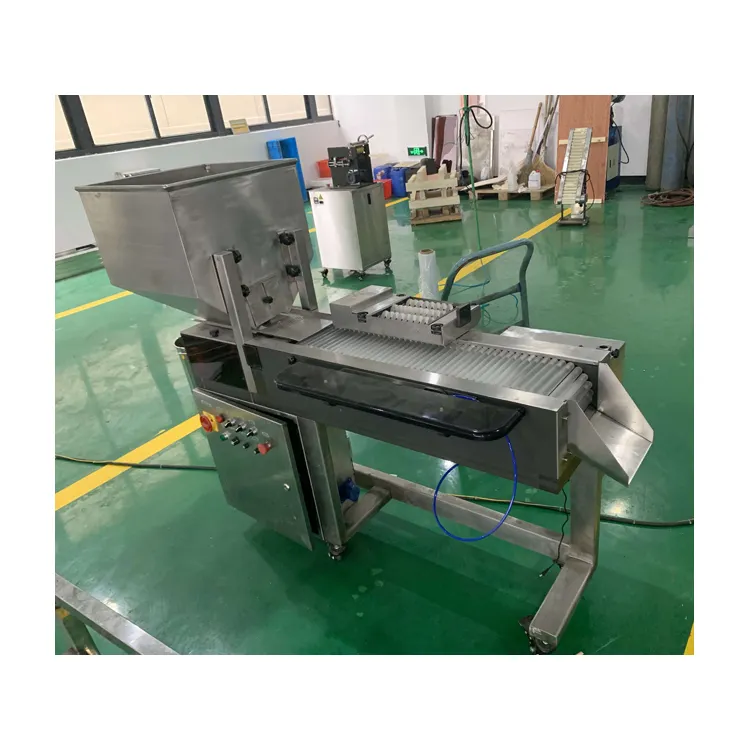

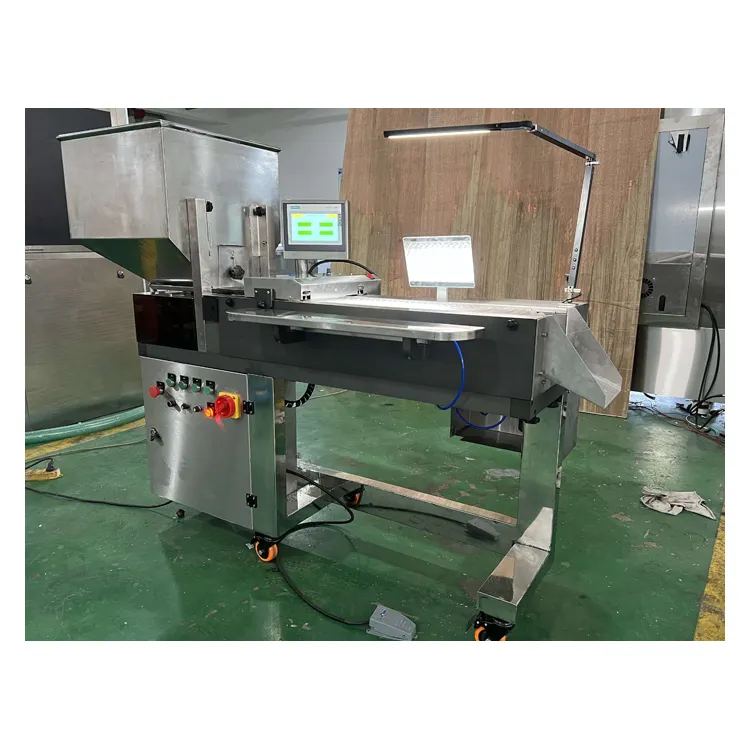

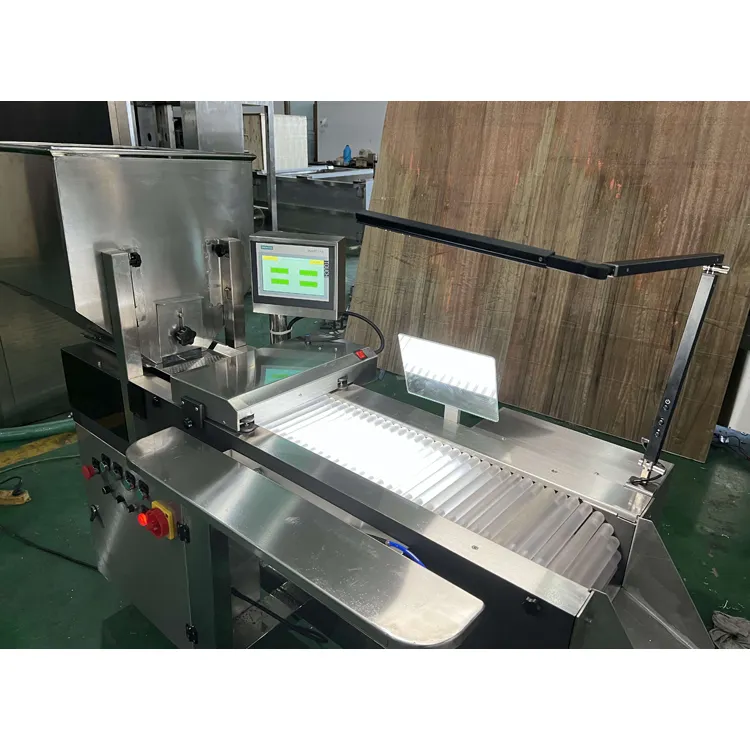

Product Display
